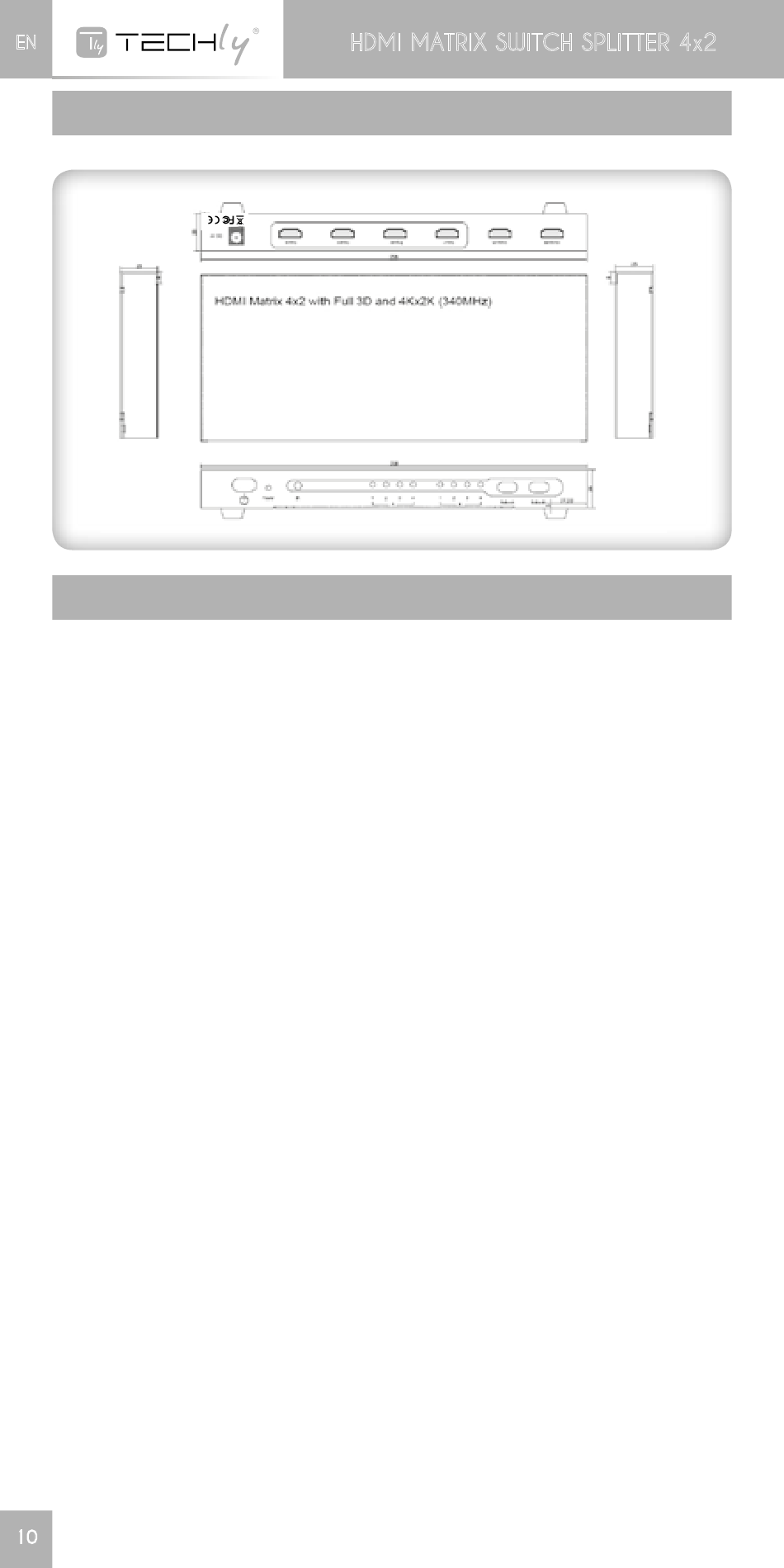

PANEL DESCRIPTION

CONNECTION AND OPERATION

1) Connect the HDMI input source into this product (Input cables
are optional).
*please refer to connection diagram section.
2) Insert the DC side of 5v/2A power supply into this product and
then connect the AC side of the power supply into the wall outlet.
For this product, there are different operations for you to choose
1) Press the button POWER on the product will present a status of
standby or working.
2) Mechanical switching
The button Select A can select four sources to display on the
Output A device circularly.
The button Select B can select four sources to display on the
Output B device circularly.
3) Remote control
The Power button on the remote control can control this product.
The two OFF buttons can control the output A-B separately, in
order to not keep output A/B 's device working.
The button 1-2-3-4 can select source devices freely.
Attention: Insert / Extract cable gently.
