Machine description – quick overview
Machine control – Operating elements

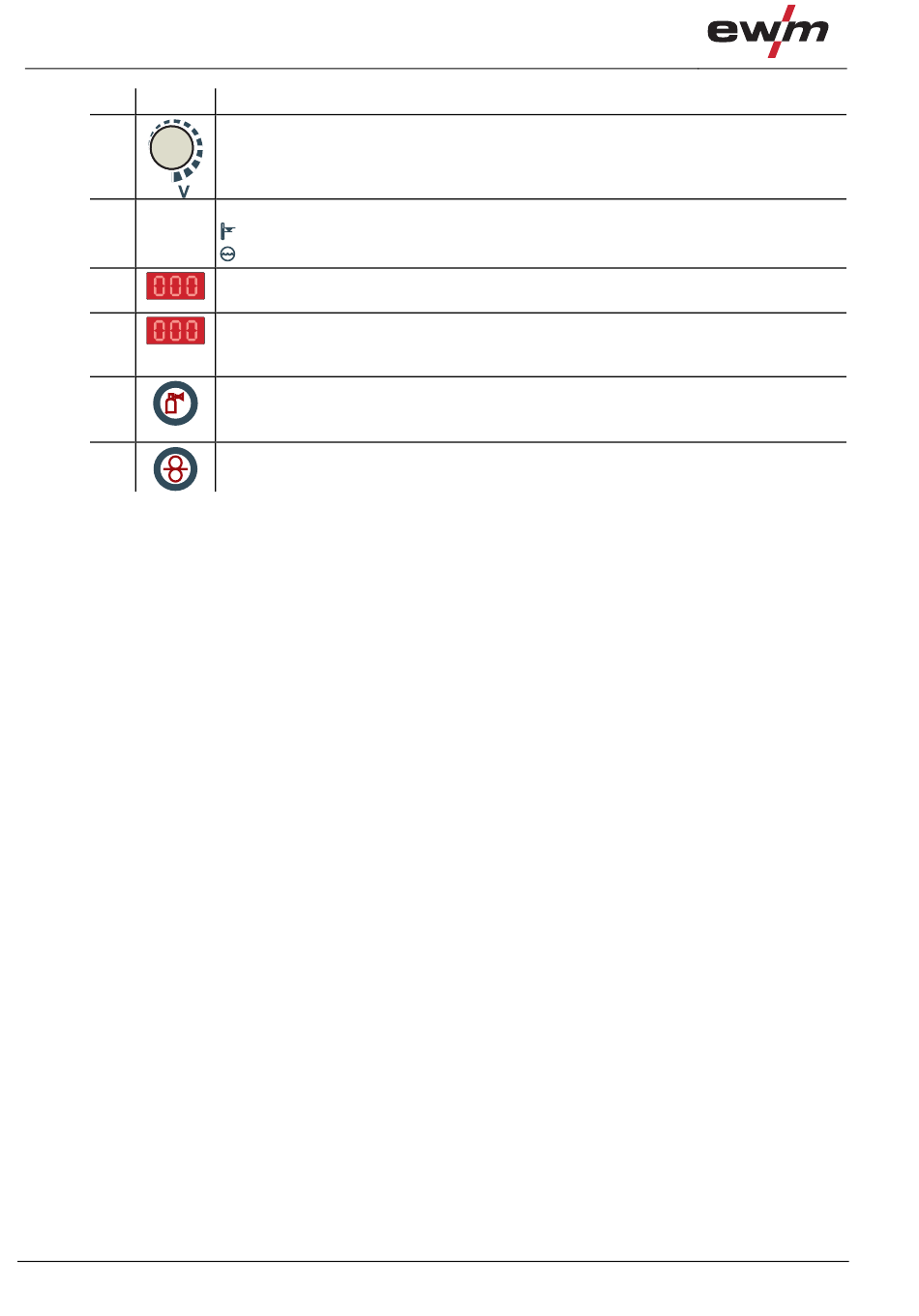

Item Symbol Description
6
7
8
9
10
11
20
0
Rotary dial, arc length
No function.
Setting is made on the wire feed unit.
Error/status displays
"Excess temperature" signal light
"Water deficiency" signal light (welding torch cooling)
Display, right
Welding voltage as set point, actual value or hold value.
Display, left
Welding current as actual value or hold value,
wire-feed speed as nominal value.
Gas test
Gas test: For setting the shielding gas quantity
See also "Shielding Gas Supply" chapter
Wire inching button
See also "Inching the Wire Electrode" chapter
