Instructions
ME5 (Standard) & PE5 (Preset)
Electronic Metered Dispense Valves
- For metered dispense of oils and antifreeze -
Not for use in explosive atmosphere locations.
1000 psi (7 MPa, 69 bar) Maximum Working Pressure
5 gpm (19 lpm) Maximum Flow Rate

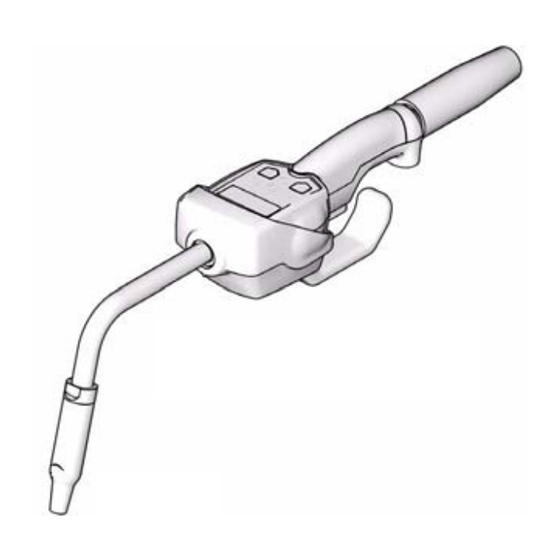

ME5 Model 255751, 256215
Includes Flexible Extension
PE5 Model 255277, 265216
Includes Flexible Extension, Trigger Lock, Protective
Boot
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
ME5 Model 255751
ti12062a
ME5 Model 256215
ti12063a
Patent Nos.
4,883,199
D382,500
6,047,906
DE3834454C2
77664
7766413742
1025804
*Applies to PE5 Preset Electronic Dispense Valve Only
1
NOTICE
This dispense valve:
is designed to dispense petroleum-based lubricants
and antifreeze only. Do not dispense windshield
washer solvent with this dispense valve.
is designed for indoor use only.
is not designed for in-line installation.
PE5 Model 255277
ti12064a
312668B
6,357,300*
ZL97102971.7*
187760*
PE5 Model 256216
ti12065a
