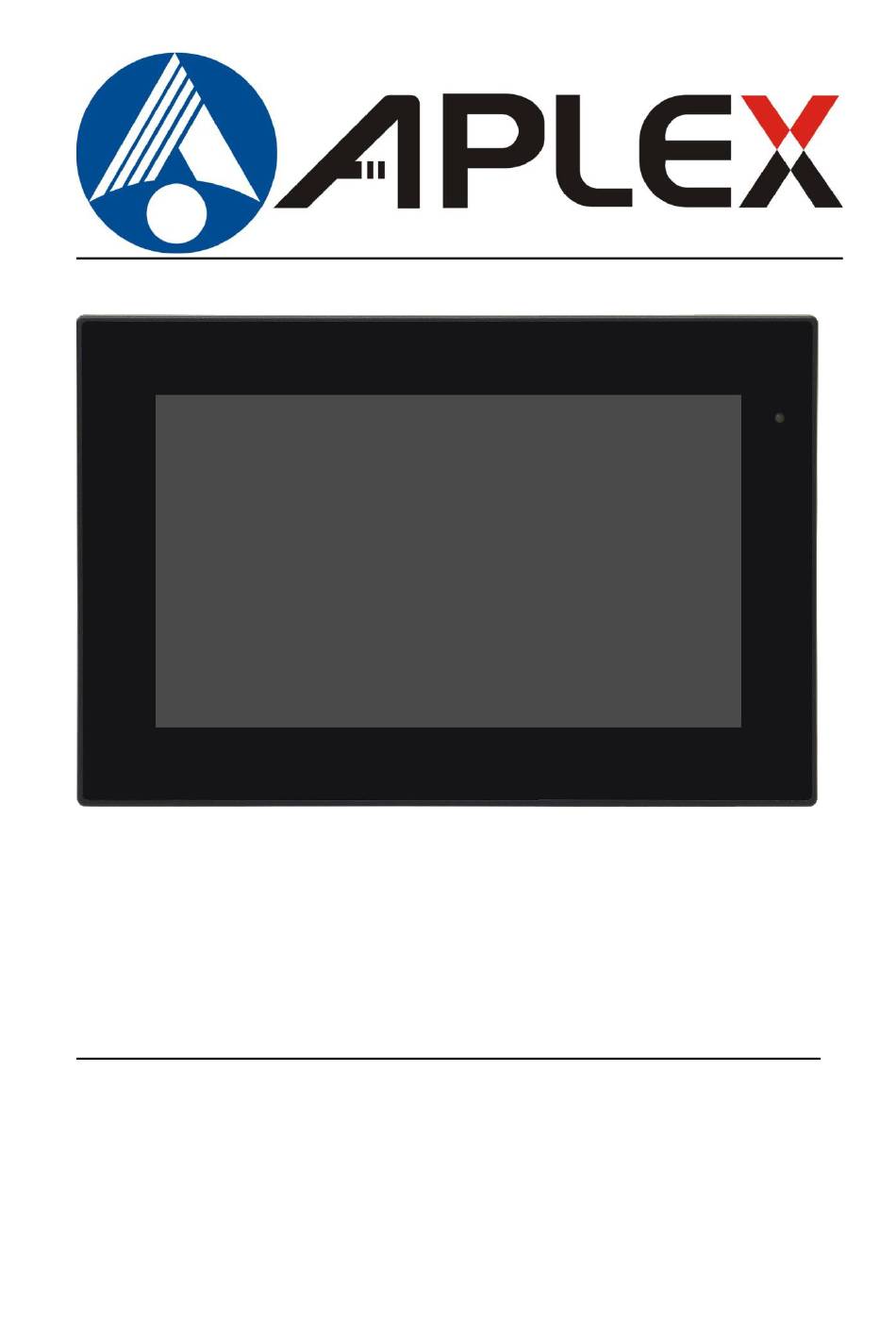

ARMPAC-6XXB Series
7"/10.1" Plastic Chassis Fanless Broadcom BCM2711, Quad core Cortex-A72 HMI
User Manual
Release Date
Revision
Mar. 2023
V1.0
®2023 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARMPAC-6 B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex ARMPAC-6 B Series

Summary of Contents for Aplex ARMPAC-6 B Series

  • Page 1 7”/10.1” Plastic Chassis Fanless Broadcom BCM2711, Quad core Cortex-A72 HMI User Manual Release Date Revision Mar. 2023 V1.0 ®2023 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php...

  • Page 2: Revision History

    Revision History Reversion Date Description 2023/03/13 Official Version ARMPAC-6XXB Series User Manual...

  • Page 3: Warning

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 4: Caution/Disclaimer

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) ARMPAC-6XXB Series User Manual...

  • Page 5: Safety Precautions

    Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use.

  • Page 6: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………………….1 Warning!.............…………………………….……………………2 Caution/Disclaimer…………………..………………………………………………………………………3 Packing List…………………………………….…………………………………………………....4 Safety Precautions………………………………….……………….…..……………………....5 Chapter 1 Getting Started 1.1 Features……..…………………..………………………...…………………………..6 1.2 Specifications…..………………...………………………………………………….6 1.3 Dimensions……..…………………..……………………………………………...8 1.4 Brief Description of ARMPAC-6XXB…..….…..…………………….……..9 1.5 VESA Mounting……………….…………..………..…...…………………..…..11 Chapter 2 Hardware 2.1 Motherboard Jumpers Setting and Connectors…………………...12 Chapter 3 Software images 3.1 Update Linux for ARMPAC-607B/610B………...……………………...18 3.2 Update Android Firmware….………....……………………...31...

  • Page 7: Getting Started

    Chapter 1 Getting Started 1.1 Features ⚫ ARM based HMI ⚫ Fanless design ⚫ Flat front panel touch screen ⚫ Raspberry Pi Computer Module 4, Quad Core Cortex-A72 Processor ⚫ Onboard 4GB LPDDR4 DRAM ⚫ Onboard 16GB/32GB eMMC Flash ⚫ DC 24V power input w/ 3KV isolation 1.2 Specifications ARMPAC-607B(P)
  • Page 8 1 x Micro SD Slot Expansion Expansion Slot 1 x Mini-PCIe Slot full size for optional 4G module(EC25, w/SIM slot series) 1 x 2x8Pin Header for TB-508 series (2xUART[RX,TX],I2C,USB2.0[Via 1 to 4 USB2.0 Hub],3.3V,5V) 1 x Micro SIM slot for mPCIe Display Display Type 7”...

  • Page 9: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of ARMPAC-607B(P) Figure 1.2: Dimensions of ARMPAC-610(P) ARMPAC-6XXB Series User Manual...

  • Page 10: Brief Description Of Armpac-6Xxb

    1.4 Brief Description of ARMPAC-6XXB ARMPAC-6B series have 7”, and 10.1” in fanless designed ARM based HMI, which comes with flat front panel LED backlight touch designed. They are powered by Broadcom BCM2711 ARM Quad core Cortex-A72 processor, 4GB DDR3 onboard memory, and 16GB eMMC or 32GB eMMC NAND flash onboard.

  • Page 11: Figure 1.5: Front View Of Armpac-6Xxb Series

    Figure 1.3: Front View of ARMPAC-6XXB Series Figure 1.4: Rear View of ARMPAC-6XXB Series ARMPAC-6XXB Series User Manual...

  • Page 12: Vesa Mounting

    1.5 VESA Mounting The ARMPAC-6XXB series is designed to be VESA mounted as shown in Picture. Just carefully place the unit through the hole and tighten the given screws from the rear to secure the mounting. Figure 1.5: ARMPAC-6XXB Series VESA Mounting ARMPAC-6XXB Series User Manual...

  • Page 13: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Motherboard Jumpers Setting and Connectors ARMPAC-6XXB Series User Manual...
  • Page 14 1. DC_IN1: (3.50mm Pitch 1x3 Pin Connector), For DC 24V system power input. Pin# Signals DC_IN- DC_IN+ 2. USB1: (USB type A Port), Front USB connector, it provides a USB2.0 port, High-speed USB 2.0 allows data transfers up to 480 Mb/s, support USB full-speed and low-speed signaling.
  • Page 15 5. CN2: (3.50mm Pitch 2x5 Pin Terminal Block), Provides 2xCOM, including 1x4-wired RS232/2-wired RS485 and 1x4-wired RS232. Pin# COM1(RS232) COM1(RS485) COM2(RS485/CAN) CAN_H CAN_L 485- 485- 485+ 485+ 5-1. JP4 (2x4 Pin Jumper), For 4-wired RS232/2-wired RS485 select. 5-2. JP8 (1x3 Pin Jumper), For RS485 add terminal. 6.
  • Page 16 SDA1 SCL1 UART4_TXD 3.3V_VCC UART4_RXD 7. DEBUG1 Pin# Signals 3.3V_VCC UART0_TX UART0_RX 8.CN1： (2.00mm Pitch 2x15 Pin Male Header), Provides 18/24bits dual channel LVDS, support up to 1920x1080@60fps. Signals Pin# Pin# Signals LCD_VCC LCD_VCC (3.3V/5V select via JP1) (3.3V/5V select via JP1) LCD_VCC (3.3V/5V select via JP1) TXA0-...
  • Page 17 8-1. JP1 (1x3 Pin Jumper), For LVDS VCC 3.3V/5V select. 9. CN4 (2.00mm Pitch 1x2 Pin Wafer Header), For power LED. Pin# Signals PWR_LED 10. PSW1 (2.00mm Pitch 1x2 Pin Wafer Header), For external power switch. Pin# Signals Power ON/OFF 11.
  • Page 18 BKLT_EN BKLT_CTRL 12-1. JP5 (1x3 Pin Jumper), For LCM backlight control mode select. 12-2. JP6 (1x3 Pin Jumper), For LCM backlight control 3.3/5V select. 12-3. JP7 (1x3 Pin Jumper), For LCM backlight enable 3.3/5V select. 13. MPCIE Standard mini PCIe socket with 1xMicro SIM slot (13-1). Support full-sized expansion cards.

  • Page 19: Chapter 3 Software Images

    Chapter 3 Software images 3.1 Update Linux for ARMPAC-607BP/610BP 1. To upgrade the Yocto Linux firmware, you must have three files as below and prepare a 16 GB above USB flash disk for installation. File 1: win32diskimager-1.0.0-install.exe Make USB boot image disk tool. File 2: 607B_usb_flashos.img or 610B_usb_flasgos.img Bootable USB flash disk image file (Linux).
  • Page 20 ARMPAC-6XXB Series User Manual...
  • Page 21 ARMPAC-6XXB Series User Manual...
  • Page 22 ARMPAC-6XXB Series User Manual...
  • Page 23 Step 2. → File2: 607B_usb_flashos.img or 610B_usb_flasgos.img 1) Run “Win32diskimager” APP to make Linux USB boot disk. 2) Select source file: 607B_usb_flashos.img or 610B_usb_flasgos.img ARMPAC-6XXB Series User Manual...
  • Page 24 3) Select “Write” 4) Select “Yes” ARMPAC-6XXB Series User Manual...
  • Page 25 5) Select “OK” ARMPAC-6XXB Series User Manual...
  • Page 26 6) Select “Exit” 7) Safely Remove USB Disk ARMPAC-6XXB Series User Manual...
  • Page 27 ARMPAC-6XXB Series User Manual...
  • Page 28 Step 3. → File3: core-image-base-raspberrypi4-64.img 1) Plug-in USB boot disk to copy FW file. 2) Copy “core-image-base-raspberrypi4-64.img” file to USB boot disk “FW” folder. ARMPAC-6XXB Series User Manual...
  • Page 29 3) Make USB boot image finished, then safely remove USB Disk. ARMPAC-6XXB Series User Manual...
  • Page 30 1. Key-in below command to erase the EMMC data. login: root cd test ls -l ./erase.sh Erase successfully, Please Power Off. ARMPAC-6XXB Series User Manual...
  • Page 31 2. Plug-in USB boot disk to ARMPAC-607BP/610BP, then power on. 3. Yocto Linux have been updated successfully!! ARMPAC-6XXB Series User Manual...

  • Page 32: Update Android Firmware

    3.2 Update Android Firmware To update Android firmware, there must be four files as shown below. 1. File1: usb_driver_r13-windows.zip Google USB Driver (ADB Interface Driver). 2. File2: win32diskimager-1.0.0-install.exe Make FW boot partition image tool. 3. File3: rpiboot_setup.exe Connection eMMC tool. 4.
  • Page 33 Step 1. → File1: usb_driver_r13-windows.zip 1) Connect Micro USB Cable from ARMPAC-607BP/610BP to your desktop/laptop and Install ADB Interface Driver. 2) Double click “ADB Gadget” to “Update Driver”. ARMPAC-6XXB Series User Manual...
  • Page 34 3) Select “Browse my computer for driver software” to locate and install driver software. 4) Click “Browse” to \usb_driver_r13-windows\usb_driver\ ARMPAC-6XXB Series User Manual...
  • Page 35 5) Click “Browse” to \usb_driver_r13-windows\usb_driver\ ARMPAC-6XXB Series User Manual...
  • Page 36 6) Click “Close” to complete the driver installation. ARMPAC-6XXB Series User Manual...
  • Page 37 Step 2. → File2: win32diskimager-1.0.0-install.exe 1) Install “win32diskimager-1.0.0-install.exe”. ARMPAC-6XXB Series User Manual...
  • Page 38 ARMPAC-6XXB Series User Manual...
  • Page 39 ARMPAC-6XXB Series User Manual...
  • Page 40 ARMPAC-6XXB Series User Manual...
  • Page 41 Step 3. → File3: rpiboot_setup.exe 1) Install “rpiboot_setup.exe”. ARMPAC-6XXB Series User Manual...
  • Page 42 ARMPAC-6XXB Series User Manual...
  • Page 43 ARMPAC-6XXB Series User Manual...
  • Page 44 ARMPAC-6XXB Series User Manual...
  • Page 45 ARMPAC-6XXB Series User Manual...
  • Page 46 Step 4. → File4: FW image files (Erase eMMC) 1) Connect Micro USB Cable from ARMPAC-607BP/610BP to your desktop/laptop. 2) Run “Command Prompt” 3) Change the path to the FW placement directory 4) Key-in “EraseMMC.bat” 5) Power off, then change Dip-Switch 2 to ON (Download Mode). ARMPAC-6XXB Series User Manual...
  • Page 47 ARMPAC-6XXB Series User Manual...
  • Page 48 Step 5. → Run “rpiboot” utility to connect eMMC. 1) Connect Micro USB Cable from ARMPAC-607BP/610BP to your desktop/laptop. 2) Power on ARMPAC-607BP/610BP. 3) Run “rpiboot” utility ARMPAC-6XXB Series User Manual...
  • Page 49 4) If there is more than one “USB Driver”, it means that eMMC is connected. 5) Run “Win32diskimager” APP 6) Select source file: “ /FW/6XXB/img/deploy-sd.img ” ARMPAC-6XXB Series User Manual...
  • Page 50 ARMPAC-6XXB Series User Manual...
  • Page 51 ARMPAC-6XXB Series User Manual...
  • Page 52 7) Power Off, then change Dip-Switch 2 to Off (Normal Mode) ARMPAC-6XXB Series User Manual...
  • Page 53 Step 6. → FW image files (Upgrade Android 1) Connect Micro USB Cable from ARMPAC-607BP/610BP to your desktop/laptop. 2) Power on ARMPAC-607BP/610BP. 3) Run “Command Prompt” 4) Change the path to the FW placement directory 5) Key-in “upgrade.bat” ARMPAC-6XXB Series User Manual...
  • Page 54 ARMPAC-6XXB Series User Manual...
  • Page 55 Please any key to Countinue………. ARMPAC-6XXB Series User Manual...
  • Page 56 6) When firmware has been updated successfully, The screen will show the “android” word and enter to Android OS desktop. ARMPAC-6XXB Series User Manual...
  • Page 57 7) Please remove Micro USB Cable from ARMPAC-607BP/610BP. ARMPAC-6XXB Series User Manual...
  • Page 58 Notes: When connecting this product to the HOST PC by a micro-USB cable, the USB Download Port: USB HUB will be disabled, so these 3 USB host connectors TYPE-A (USB1), Touch (USB3) and m-PCIE 4G/LTE module (USB2) will not work. Download Tools info: Download “rpiboot_setup.exe”...
