Aplex ACS-2702 User Manual

Intel atom n2600 ip67 waterproof box pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

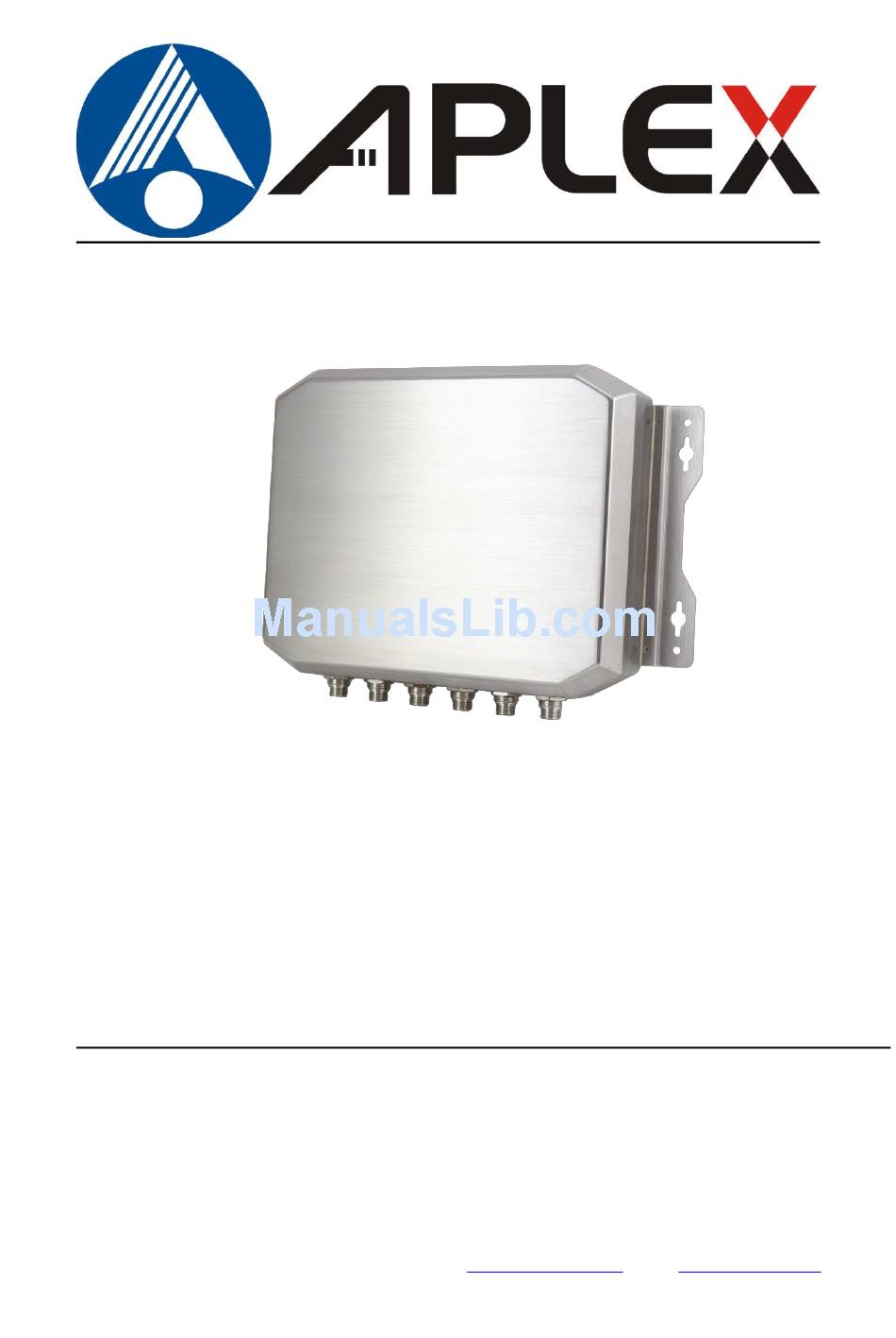

ACS-2702
Intel Atom N2600 IP67 Waterproof Box PC
User Manual
Release Date
Revision
Jul. 2015
V1.0
®2015 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail:
aplex@aplex.com.tw
URL:
www.aplextec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACS-2702 and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex ACS-2702

Summary of Contents for Aplex ACS-2702

  • Page 1 Intel Atom N2600 IP67 Waterproof Box PC User Manual Release Date Revision Jul. 2015 V1.0 ®2015 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw...

  • Page 2: Revision History

    Revision History Reversion Date Description 2015/07/08 Official Version ACS-2702 User Manual...

  • Page 3: Warning!/Disclaimer

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 4: Packing List/Safety Precautions

    Always disconnect power when the system is not in use. ◆ Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. ACS-2702 User Manual...

  • Page 5: Table Of Contents

    Revision History…………………………………………………………………………………………….1 Warning!/Disclaimer………………......…………………………….……..….2 Packing List/Safety Precautions..………………………………………………………………..3 Chapter 1 Getting Started 1.1 Features……………………………………………………………………………………………5 1.2 Specifications……………………………………………………………………………………5 1.3 Dimensions……………………………………………………………………………………….6 1.4 Brief Description of ACS-2702……………………………………………………………7 Chapter 2 Hardware 2.1 Motherboard Introduction……..……………..…………………..………………..…..8 2.2 Specifications……………………………….……………………………..…………………...8 2.3 Jumpers Setting and Connectors…………..........12 Chapter 3 BIOS Setup 3.1 Operations after POST Screen.............21 3.2 BIOS Setup Utility…................21...

  • Page 6: Getting Started

    Windows embedded standard 7, Windows 7 Pro for embedded, Windows CE 6.0 Power Power Input 9~36V DC Power Consumption MAX: 10.1W Mechanical Construction Stainless Steel Chassis Mounting Wall Mount IP Rating IP67 Dimension 200 x 250 x 53 mm Net Weight 3.2Kg ACS-2702 User Manual...

  • Page 7: Dimensions

    Environmental Operating Temperature -20~60 °C Storage Temperature -40~85 °C Storage Temperature 10%~90%@ 40℃, non-condensing Certificate Meet CE / FCC 1.3 Dimensions Figure 1.1: Dimensions of ACS-2702 ACS-2702 User Manual...

  • Page 8: Brief Description Of Acs-2702

    Process Control, Data Terminal, TI, Surveillance, etc. and running factory operations from small visual interface and maintenance applications to large control process applications. The ACS-2702 works very well along with any of our Display series and it absolutely can provide an easy way to perform control and field maintenance.

  • Page 9: Chapter 2 Hardware

    Up to 1920 x1200 for CRT Support Up to 1920 x1200 for HDMI Resolution Up to 1366 x768 for LVDS1 (N2600) Up to 1440 x 900 for LVDS1 (D2550) CRT+LVDS1 Dual Display CRT+HDMI LVDS1+HDMI Super I/O Winbond W83627UHG-E BIOS AMIBIOS ACS-2702 User Manual...
  • Page 10 Management 1 x 3-pin power input connector 1 x Power on/off switch (CN1) Switches and 1 x Reset switch (CN1) LED Indicators 1 x Power LED status (CN1) 1 x HDD LED status (CN1) 1 x Buzzer ACS-2702 User Manual...

  • Page 11: Figure 2.1: Mainboard Dimensions

    ℃ ℃ Storage: -40 to 85 ℃ ℃ Humidity 5% - 95%, non-condensing, operating 12V /0.95A (Intel Atom N2600 processor with 2GB DDR3 DRAM) Power Consumption EMI/EMS Meet CE/FCC class A (units :mm) Figure 2.1: Motherboard Dimensions ACS-2702 User Manual...

  • Page 12: Figure 2.2: Jumpers And Connectors Location_ Board Top

    2.2.1 Jumpers Setting and Connectors Board Top Figure 2.2: Jumpers and Connectors Location_ Board Top Board Bottom Figure 2.3: Jumpers and Connectors Location_ Board Bottom ACS-2702 User Manual...

  • Page 13: Jumpers Setting And Connectors

    3. BAT1 : (1.25mm Pitch 1X2 box Pin Header) 3.0V Li battery is embedded to provide power for CMOS. Pin# Signal Name Pin1 VBAT PIN2 Ground 4. DC_IN1: (5.08mm Pitch 1x3 Pin Connector),DC9V~32V System power input connector。 ACS-2702 User Manual...
  • Page 14 (CRT 2.0mm Pitch 2X6 Pin Header), Video Graphic Array Port, Provide 2x6Pin cable to VGA Port. Signal Name Pin# Pin# Signal Name CRT_RED Ground CRT_GREEN Ground CRT_BLUE VGA_EN CRT_H_SYNC CRT_DDCDATA CRT_V_SYNC CRT_DDCCLK Ground Ground VGA hot plug setting for Windows XP： VGA1（Pin Header） Function ACS-2702 User Manual...
  • Page 15 (Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. COM1 port is controlled by pins No.1~6 of JP1,select output Signal RI or 5V or 12V, For details, please refer to description of JP1 and S_232 and S_422 setting. ACS-2702 User Manual...
  • Page 16 JP1 select Setting (RI/5V/12V) BIOS Setup： Advanced/W83627UHG Super IO Configuration/Serial Port 1 Configuration【RS-232】 RS422 (option): Pin# Signal Name 422_RX+ 422_RX- 422_TX- 422_TX+ Ground BIOS Setup： Advanced/W83627UHG Super IO Configuration/Serial Port 1 Configuration【RS-422】 RS485 (option): Pin# Signal Name 485- 485+ Ground ACS-2702 User Manual...
  • Page 17 DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) RI (Ring Indicator) 14. TCH1: (2.0mm Pitch 1x6 box Pin Header), internal Touch controller connector. Pin# Signal Name SENSE GND_EARCH ACS-2702 User Manual...
  • Page 18 I/O ports. Line Out can be connected to a headphone or amplifier. Line In is used for the connection of external audio source via a Line in cable. MIC is the port for microphone input audio. ACS-2702 User Manual...
  • Page 19 RJ-45 Ethernet ports are provided. Used Realtek RTL8111E chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN. 26. BUZ1: Onboard buzzer. ACS-2702 User Manual...
  • Page 20 USB0 5V_USB01 5V_USB01 USB1 5V_USB01 5V_USB01 PWR LED PWR_LED+ HDD_LED+ HDD LED Ground Ground PWR ON/OFF PWRBTN_ON- FP_RST- RESET INVT1： (2.0mm Pitch 1x6 Pin wafer connector), Backlight control connector for LVDS. Pin# Signal Name +DC12V +DC12V Ground ACS-2702 User Manual...
  • Page 21 Advanced/W83627UHG Super IO Configuration/Serial Port 3 Configuration 【RS-485】 32. H3/H4/H5/H6: CPU1 and U53 Heat Sink SCREW HOLES, Four screw holes for intel N2600 and NM10 Heat Sink assemble. 33. H1/H2: MPCIE1 SCREW HOLES, H1and H2 for mini PCIE card (30mmx30mm) assemble. ACS-2702 User Manual...

  • Page 22: Bios Setup

    BIOS, CPU, memory, and storage devices. 3.2 BIOS Setup Utility Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing system summary information will appear. ACS-2702 User Manual...

  • Page 23: Main Settings

    3.3 Main Settings ACS-2702 User Manual...

  • Page 24: Advanced Settings

    01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 PCI Subsystem Settings PCI Bus Driver Versio V2.05.02 PCI Common Settings: PCI Latency Timer: [32 PCI Bus Clocks] [64 PCI Bus Clocks] ACS-2702 User Manual...
  • Page 25 [Disabled] ACPI Sleep State: [Both S1 and S3 available for OS to choose from ] [Suspend Disabled] [S1 only (CPU Stop Clock)] [S3 only (Suspend to RAM)] Lock Legacy Resources: [Disabled] [Enabled] S3 Video Repost: [Disabled] [Enabled] ACS-2702 User Manual...
  • Page 26 Thermal Configuration CPU Thermal Configuration DTS SMM [Disabled] [Enabled] Platform Thermal Configuration Critical Trip Point [POR] Active Trip Point Lo [55 C] Active Trip Point Hi [71C] Passive Trip Point [95] Passive TC1 Value Passive TC2 Value ACS-2702 User Manual...
  • Page 27 [Enabled] [Disabled] EHCI Hand-off: [Disabled] [Enabled] USB hardware delays a USB transfer time-out: [20 sec] [10 sec] [5 sec] [1 sec] Device reset time-out: [20 sec] [10 sec] [30 sec] [40 sec] Device power-up delay [Auto] [Manual] ACS-2702 User Manual...
  • Page 28 : +1.528V AVCC : +5.203V VCC5V : +5.216V VSB5 : +5.203V VBAT : +3.334V 3.4.9 Serial Port Console Redirection COM0 Console Redirection [Enabled] [Disabled] Console Redirection Settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) ACS-2702 User Manual...
  • Page 29 [Enabled] [Disabled] CPU C State Report [Enabled] [Disabled] Enhanced C State [Enabled] [Disabled] CPU Hard C4E [Enabled] [Disabled] CPU C6 State [Enabled] [Disabled] C4 Exit Timing [Fast] [Default] [Slow] C-state POPDOWN [Enabled] [Disabled] C-state POPUP [Enabled] [Disabled] ACS-2702 User Manual...

  • Page 30: Chipset Settings

    3.5 Chipset Settings 3.5.1 Host Bridge ►Memory Frequency and Timing ►Intel IGD Configuration ******* Memory Information ******* Memory Frequency 800 MHz(DDR3) Total Memory 2048 MB DIMM#0 Not Present DIMM#1 2048 MB Memory Frequency and Timing MRC Fast Boot [Enabled] ACS-2702 User Manual...
  • Page 31 [VGA + LVDS] [VGA + HDMI] [LVDS + HDMI] LCD Panel Type [VBIOS Default] [640x480，18bit] [800x480，18bit] [800x600，18bit] [1024x600，18bit ] [1024x768，18bit ] [1280x768，18bit ] [1280x800，18bit ] [1280x1024，18bit] [1366x768，18bit] [1024x768，24bit] [1280x768，24bit] [1280x800，24bit] [1280x1024，24bit] [1366x768，24bit] Panel Scaling [Auto] [Force Scaling] [off] ACS-2702 User Manual...
  • Page 32 Back light Control Lev [Positive] [Negative] [Auto] [Disabled] [Level 8] [Level 1] [Level 2] [Level 3] [Level 4] [Level 5] [Level 6] [Level 7] [Level 8] [Level 9] [Level 10] [Level 11] [Level 12] [Level 13] [Level 14] [Level 15] ACS-2702 User Manual...

  • Page 33: Boot Settings

    PCI Express Root Port 3 DMI Link ASPM Control [Enable] [Disabled] PCI-Exp. High Priorit [Disabled] [Enabled] High Precision Event Timer Configuration High Precision Timer [Enabled] [Disabled] SLP_S4 Assertion Widt [1-2 Seconds] [2-3 Seconds] [3-4 Seconds] [4-5 Seconds] 3.6 Boot Settings ACS-2702 User Manual...
  • Page 34 CSM Parameters Launch CSM [Always] [Never] Boot option filter [UEFI and Legacy] [Legacy only] [UEFI only] Launch PXE OpROM poli [Do not Launch] [UEFI only] [Legacy only] Launch Storage OpROM [Legacy only] [Do not Launch] [UEFI only] ACS-2702 User Manual...

  • Page 35: Security Settings

    Launch Video OpROM po [Do not Launch] [UEFI only] [Legacy only] Other PCI device ROM [UEFI OpROM] [Legacy OpROM] 3.7 Security Settings 3.7.1 Administrator Password 3.7.2 User Password ACS-2702 User Manual...

  • Page 36: Save And Exit Settings

    BIOS setup; if Security Option is set to Setup, you will be requested for password for entering BIOS setup. 3.8 Save & Exit Settings ACS-2702 User Manual...
  • Page 37 Load Optimized Defaults Load optimized Defaults? [Yes] [No] Save user Defaults Save Values as User Defaults Save configuration? [Yes] [No] Restore user Defaults Restore User Defaults Restore User Defaults? [Yes] [No] Launch EFI Shell from filesystem device WARNING Not Found [ok] ACS-2702 User Manual...

  • Page 38: Chapter 4 Installation Of Drivers

    Intel chipset driver, VGA driver, LAN drivers, Audio driver Installation instructions are given below. Important Note: After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the installation of drivers. ACS-2702 User Manual...

  • Page 39: Intel Chipset Driver

    4.1 Intel Chipset Driver To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) Chipset NM10 Express from the list Step 2. Click Next to setup program. ACS-2702 User Manual...
  • Page 40 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. ACS-2702 User Manual...
  • Page 41 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. ACS-2702 User Manual...

  • Page 42: Intel Graphics Media Accelerator Driver

    To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset from the list. Step 2. Tick Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. ACS-2702 User Manual...
  • Page 43 Step 3. Read license agreement. Click Yes. Step 4. Click Next. ACS-2702 User Manual...
  • Page 44 Step 5. Click Next. Step 6. To restart the computer, select Yes, I want to restart this computer now. Then click Finish. ACS-2702 User Manual...

  • Page 45: Intel (R) Network Adapter

    4.3 Intel (R) Network Adapter To install the Intel (R) Network Adapter device driver, please follow the steps below. Step 1. Select LAN Driver from the list. Step 2. Click Next to continue. ACS-2702 User Manual...
  • Page 46 Step 3. Click Install to begin the installation. Step 5. Click Finish to exit the wizard. ACS-2702 User Manual...

  • Page 47: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 Audio Driver from the list Step 2. Click Next to continue. ACS-2702 User Manual...
  • Page 48 Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. ACS-2702 User Manual...
