Aplex AVS-52 Series User Manual

8 th /9th generation, intel core i7/i5/i3 processor machine application system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

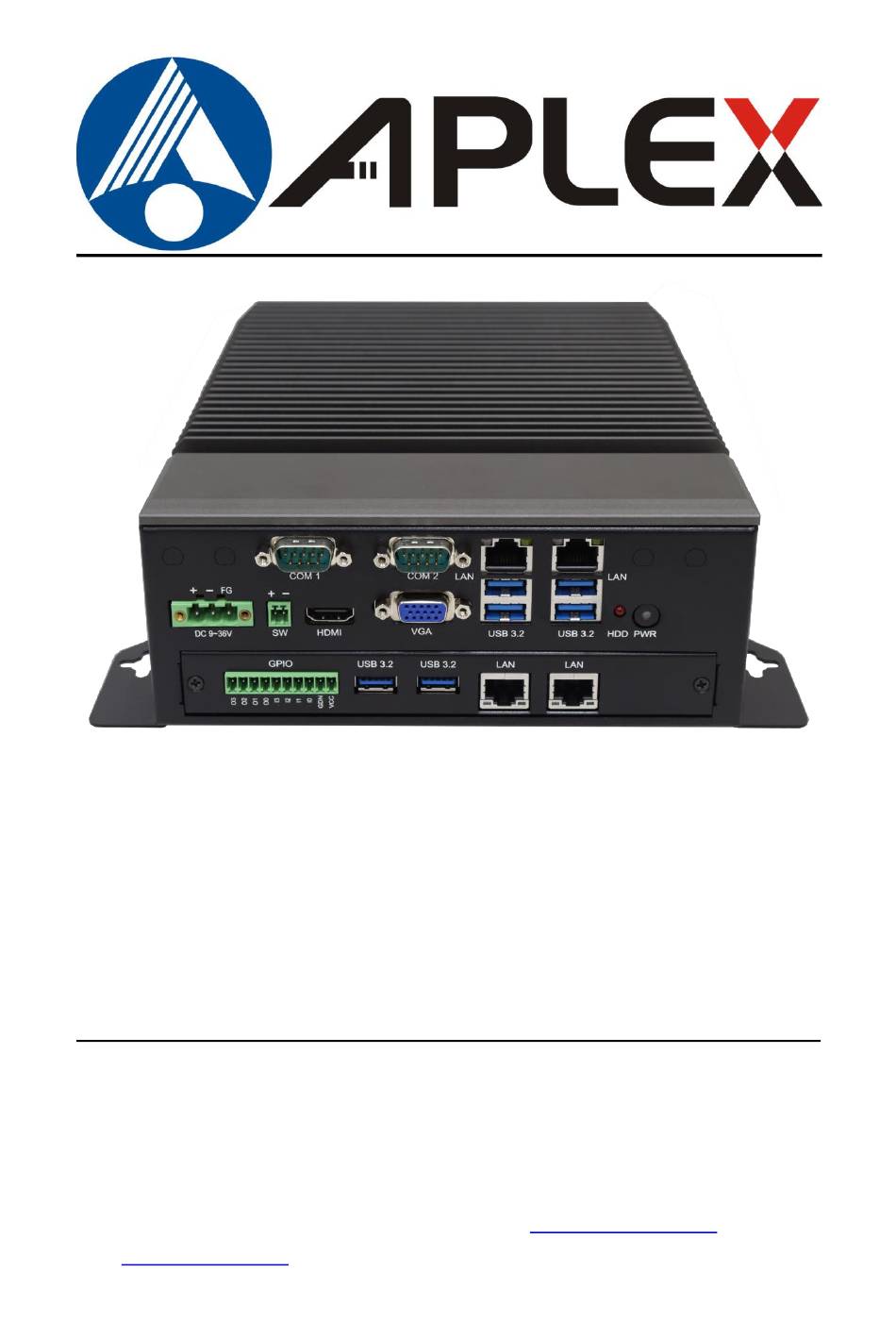

AVS-52X Series
th
th
8
/9
Generation, Intel Core i7/i5/i3 Processor
Machine Application System
User Manual
Release Date
Revision
FEB 2022
V1.0
®2022 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235,Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail:
aplex@aplex.com.tw
URL:
www.aplex.com.tw
