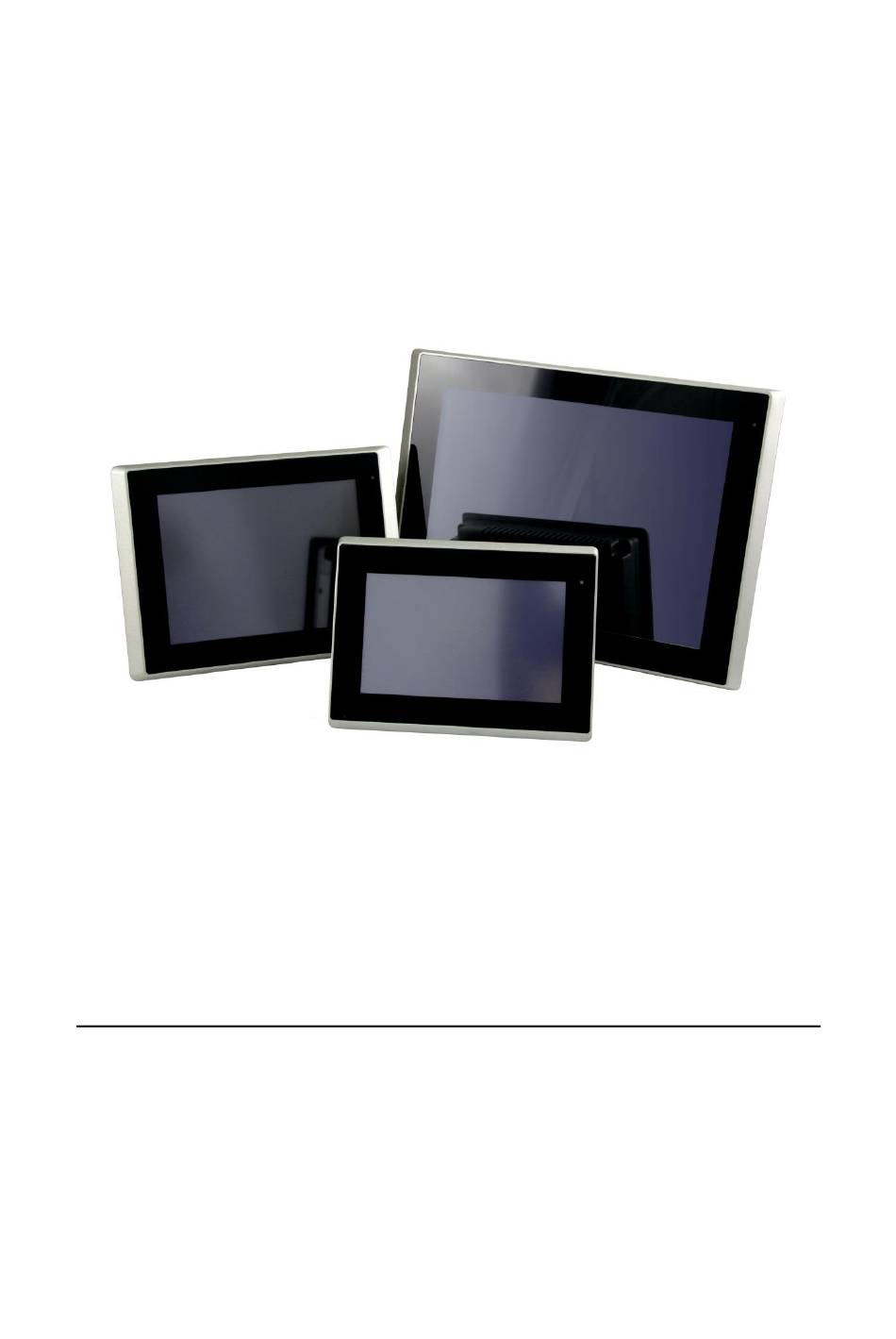

AHMI-8XX Series
User Manual
Release Date
Revision
Mar. 2015
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AHMI-8 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplex AHMI-8 Series

Summary of Contents for Aplex AHMI-8 Series

  • Page 1 AHMI-8XX Series User Manual Release Date Revision Mar. 2015 V1.0...

  • Page 2: Revision History

    Revision History Reversion Date Description 2015/03/25 Official Version AHMI-8XX Series User Manual...

  • Page 3: Warning!/Avertissement

    Warning!________________________ This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

  • Page 4: Caution/Precaution/Disclaimer

    Caution Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations. Precaution Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagée doivent être recyclées dans la mesure du possible.

  • Page 5: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) AHMI-8XX Series User Manual...

  • Page 6: Safety Precautions/Consignes De Sécurité

    Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use.

  • Page 7: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………………….1 Warning!/Avertissement!............…………………………….…2 Caution/Precaution/Disclaimer……..………………………………………………………………………3 Packing List…………………………………….……………………………………………………………………..4 Safety Precautions/Consignes de sécurité………………………………….…..……………………..5 Chapter 1 Getting Started 1.1 Features………………………..………………………...…………………………..8 1.2 Specifications…………………...………………………………………………….8 1.3 Dimensions………………………..…………………………………………….11 1.4 Brief Description of AHMI-8XX…..….………………………….……17 1.5 Installation of HDD – 7”/8”…………..…………...…………………..…..22 1.6 Installation of HDD – 10.1”/15.6”/18.5”………………………………24 1.7 Installation of HDD –...
  • Page 8 4.4 Realtek ALC662 HD Audio Driver Installation………………………87 4.5 USB 3.0 Driver…………………………………………………………………….88 Chapter 5 Touch Screen Installation 5.1 Windows XP/2003/Vista/WIN7 Universal Driver Installation for PenMount 6000 Series...……………….…………………………………...92 5.2 Software Functions…………………………………………………………..102 Figures Figure 1.1: Dimensions of AHMI-807(P).……………………..……………..11 Figure 1.2: Dimensions of AHMI-808(P).……………………..………………...11 Figure 1.3: Dimensions of AHMI-810(P).……………………..…………………12 Figure 1.4: Dimensions of AHMI-812(P).……………………..…………………12 Figure 1.5: Dimensions of AHMI-815(P).……………………..…………………13...

  • Page 9: Getting Started

    Chapter 1 Getting Started 1.1 Features  7”/8”/10.1”/12.1”/15”/15.6”/17”/18.5”/21.5” Industrial Compact Size Panel PC  Flat front panel touch screen  Fanless design  Intel Bay Trail N2930(1.83GHz) CPU built-in/E3845(1.91GHz) for option  Onboard 2GB DDR 3L 1600 MHz/4GB(option)  9~36VDC wide-ranging power input ...
  • Page 10 (TB-528C1U2 for AHMI-810) Storage Space Storage 1 x SD card slot, up to 32GB 1 x 1.8” SATA SSD bay, up to 64GB (Easy Accessible) (for 7”/8”) 1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible) Expansion Expansion Slot 1 x Internal Mini-PCIe slot full size Touch Screen –...
  • Page 11 AHMI-807(P) AHMI-808(P) AHMI-810(P) AHMI-812(P) AHMI-815(P) Display 7” TFT LCD 8” TFT LCD 10.1” TFT LCD 12.1” TFT LCD 15” TFT LCD Display Type Max. Resolution 800 x 480 800 x 600 1280 x 800 800 x 600 1024 x 768 Max.

  • Page 12: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of AHMI-807(P) Figure 1.2: Dimensions of AHMI-808(P) AHMI-8XX Series User Manual...

  • Page 13: Figure 1.3: Dimensions Of Ahmi-810(P)

    Figure 1.3: Dimensions of AHMI-810(P) Figure 1.4: Dimensions of AHMI-812(P) AHMI-8XX Series User Manual...

  • Page 14: Figure 1.5: Dimensions Of Ahmi-815(P)

    Figure 1.5: Dimensions of AHMI-815(P) Figure 1.6: Dimensions of AHMI-816 (Resistive Touch) AHMI-8XX Series User Manual...

  • Page 15: Figure 1.7: Dimensions Of Ahmi-816(Projected Capacitive Touch)

    Figure 1.7: Dimensions of AHMI-816P (Projected Capacitive Touch) Figure 1.8: Dimensions of AHMI-817(P) AHMI-8XX Series User Manual...

  • Page 16: Figure 1.9: Dimensions Of Ahmi-818(P)

    Figure 1.9: Dimensions of AHMI-818(P) Figure 1.10: Dimensions of AHMI-821 (Resistive Touch) AHMI-8XX Series User Manual...
  • Page 17 Figure 1.11: Dimensions of AHMI-821P (Projected Capacitive Touch) AHMI-8XX Series User Manual...

  • Page 18: Brief Description Of Ahmi-8Xx

    1.4 Brief Description of AHMI-8XX There are 7”, 8”, 10.1”, 12.1”, 15”, 15.6”, 17”, 18.5” and 21.5” Industrial Compact Size Panel PC in AHMI-8XX series, which comes with flat front panel touch screen and fanless design. It is powered by Intel Bay Trail E3845(1.91GHz) or N2930(1.83GHz) CPU built-in, 2GB DDR3L 1600 MHz (4GB is for option).

  • Page 19: Figure 1.13: Rear View Of Ahmi-807/808

    Figure 1.11: Rear View of AHMI-807/808 Figure 1.12: Rear View of AHMI-810 AHMI-8XX Series User Manual...

  • Page 20: Figure 1.15: Rear View Of Ahmi-812

    Figure 1.13: Rear View of AHMI-812 Figure 1.14: Rear View of AHMI-815 AHMI-8XX Series User Manual...

  • Page 21: Figure 1.17: Rear View Of Ahmi-816

    Figure 1.15: Rear View of AHMI -816 Figure 1.16: Rear View of AHMI-817 AHMI-8XX Series User Manual...

  • Page 22: Figure 1.19: Rear View Of Ahmi-818

    Figure 1.17: Rear View of AHMI-818 Figure 1.18: Rear View of AHMI-821 AHMI-8XX Series User Manual...

  • Page 23: Installation Of Hdd - 7"/8

    1.5 Installation of HDD – 7” and 8” Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 There is a SSD card in the bracket. Gently remove the screw, then carefully pull SSD card.
  • Page 24 Step 4 You can replace SSD card by unscrewing four screws as shown in the picture. Note: four screws are packed in the packing list. Step 5 There is a SD card hole in the side of the machine. You can replace SD card from there.

  • Page 25: Installation Of Hdd - 10.1"/15.6"/18.5

    1.6 Installation of HDD – 10.1”/15.6”/18.5” Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Take the storage cover beside the HMI. Step 3 You can put or remove HDD into the machine by pulling the HDD bracket.

  • Page 26: Installation Of Hdd - 12.1"/15"/17"/21.5

    Step 4 There is a SD hole in the side of machine. You can replace SD card from there. 1.7 Installation of HDD – 12.1”/15”/17”/21.5” Step 1 There are 2 screws to deal with when enclosing or removing the chassis. Gently remove 2 screws.
  • Page 27 Step 3 You can remove HDD by unscrewing 4 screws in the HDD bracket. Note: 4 screws are packed in the packing package. Step 4 There is a SD hole in the side of machine. You can replace SD card from there AHMI-8XX Series User Manual...

  • Page 28: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Mainboard Introduction SBC-7111 is a 4" industrial motherboard developed on the basis of Intel Bay trail-I/M Processors, which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 3-COM ports and one Mini PCIE configuration, one VGA port, one HDMI port, one LVDS interface.
  • Page 29 Fintek F81216AD BIOS AMI/UEFI Storage 1 x SATAII Connector (7P) 1 x SATAII Connector (7P + 15P) 1 x SD Slot Ethernet 2 x PCIe Gbe LAN by Intel 82574L 1 x USB 2.0 and 1 x USB 3.0 (type A)stack ports (USBCON1/USB0,USB1) 1 x USB 2.0 Pin header for CN1 (USB3 or Touch, option) 1 x USB 2.0 Hub(USB2) 1 x USB 2.0 Pin header for CN2 (USB Hub /USB1)
  • Page 30 Power Management Wide Range DC9V~36V input 1 x 3-pin power input connector Switches and 1 x Power on/off switch (BT1/BT2/CN2/CN3) LED Indicators 1 x Reset (CN2) 1 x Power LED status (CN1) 1 x HDD LED status (CN2) 1 x Buzzer External I/O port 2 x COM Ports (COM1/COM2) 2 x USB 2.0 Ports (stack)

  • Page 31: Figure 2.1: Mainboard Dimensions

    (units :mm) Figure 2.1: Mainboard Dimensions AHMI-8XX Series User Manual...

  • Page 32: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom AHMI-8XX Series User Manual...

  • Page 33: Jumpers Setting And Connectors

    2.4 Jumpers Setting and Connectors 1. U2: (FCBGA1170), onboard Intel Bay trail-I/M Processors. Model Processor Number Cores/Threads Remarks SBC-7111-E3845-2G E3845 1.91GHz 4 / 4 SBC-7111-E3845-4G E3845 1.91GHz 4 / 4 Option SBC-7111-N2930-2G N2930 1.83 up to 4 / 4 4.5 / Option 2.16GHz 7.5W...
  • Page 34 Pin# Signal Name VBAT Ground 6. SW1（NC）: (2.0mm Pitch 2x2 Pin Header),Reserve. 7. BAT2（NC）: (2.0mm Pitch 1x8 Wafer Pin Header),Reserve. 8. LED3/LED4（NC）: LED3:Reserve. LED4:Reserve. 9. DC_IN1: (5.08mm Pitch 1x3 Pin Connector),DC9V~36V System power input connector. Pin# Power input DC+9V~36V Ground Model DC_IN1 SBC-7111-E3845-2G...
  • Page 35 directly for use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup. Pin# Signal Name Ground Rotation detection Note: Output power of cooling fan must be limited under 5W. 12. VGA_PH1: (CRT 2.0mm Pitch 2x6 Pin Header), Video Graphic Array Port, Provide 2x6Pin cable to VGA Port.
  • Page 36 Function (CN1) Pin1-Pin2 (Close) Single channel LVDS Pin1-Pin2 (Open) Dual channel LVDS (Default) Pin3-Pin4 (Close) 8/24 bit (Default) Pin3-Pin4 (Open) 6/18 bit 15. U18: AT24C02-DIP8,The EEPROM IC（U18）is the set of LVDS resolution. If you need other resolution settings, please upgrade U18 data. Model LVDS resolution SBC-7111-E3845-2G...
  • Page 37 fully supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output. Low Voltage Differential Signaling, A high speed, low power data transmission standard used for display connections to LCD panels. Function Signal Name Pin# Pin# Signal Name Function 12V_S0 12V_S0...
  • Page 38 Pin# Signal Name SENSE GND_EARCH 20. JP1: (2.0mm Pitch 2x3 Pin Header), COM1 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM1 port. JP1 Pin# Function Close 1-2 COM1 RI (Ring Indicator) (default) Close 3-4 COM1 Pin9: DC+5V (option) Close 5-6...
  • Page 39 23. COM1: (Type DB9M), Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. COM1 port is controlled by pins No.1~6 of JP1, select output Signal RI or 5V or 12V, for details, please refer to description of JP1 and S_232 and S_422 setting.
  • Page 40 RS485 (option) Pin# Signal Name 485- 485+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-485】 24. JP2: (2.0mm Pitch 2x3 Pin Header), COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port. JP2 Pin# Function Close 1-2...
  • Page 41 26. LED1,LED2 (option) : LED1: LED STATUS. Green LED for Motherboard Standby Power Good status. LED2: LED STATUS. Green LED for Touch Power status. 27. SATA_P: (2.5mm Pitch 1x2 box Pin Header), One onboard 5V output connector are reserved to provide power for SATA devices. Pin# Signal Name +DC5V...
  • Page 42 external audio source via a Line in cable. MIC is the port for microphone input audio. Signal Name Pin# Pin# Signal Name GND_AUD LINE-OUT-L LINE-OUT-R FRONT_JD LINE1_JD LINE_IN-L LINE-IN-R MIC-IN-L MIC-IN-R GND-AUD MIC1_JD 34. LINE_OUT1: (Diameter 3.5mm Jack), HD Audio port, An onboard Realtek ALC662-VD codec is used to provide high quality audio I/O ports.
  • Page 43 38. CN2: (DF13-30P Connector),For expand output connector, It provides eight GPIO,one RS422 or RS485,one USB2.0,one Power on/off, one Reset. Function Signal Name Pin# Pin# Signal Name Function 5V_S5 5V_S5 SOC_GPIO10 GPIO_IN2 GPIO_IN1 SOC_SPIO09 SOC_GPIO26 GPIO_IN4 GPIO_IN3 SOC_GPIO17 SOC_GPIO05 GPIO_OUT2 GPIO_OUT1 SOC_GPIO04 SOC_GPIO08 GPIO_OUT4...
  • Page 44 40. CN3: (1.27mm Pitch 2X30 Female Header), for expand output connector,It provides four GPIO,two USB 2.0,one PS/2 mouse,one PS/2 keyboard, two uart,one PCIex1, one SMbus. connected to the TB-528 riser Card. Function Signal Name Pin# Pin# Signal Name Function 5V_S5_USB 5V_S5_USB 5V_S5_USB 5V_S5_USB...
  • Page 45 41. TB-528C2ME1（option）: SBC-7111 Riser Card, TB-528C2ME1 CN3 connect to SBC-7111 CN3 pin Header. TB-528C2ME1 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0(USB2),Smbus,SIM and PCIe signal.
  • Page 46 SIM1： (SIM Socket 6 Pin), Support SIM Card devices. PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA Ground...
  • Page 47 Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables. Any inconformity may cause system down and even hardware damages. JP5： (2.0mm Pitch 2x3 Pin Header), COM5 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM5 port.
  • Page 48 JP6： (2.0mm Pitch 2x3 Pin Header), COM6 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM6 port. JP6 Pin# Function Close 1-2 RI (Ring Indicator) (default) Close 3-4 COM6 Pin9=+5V (option) Close 5-6 COM6 Pin9=+12V (option) COM6(SBC-7111/COM4)：...
  • Page 49 Ground JP6 Setting: RI/5V/12V 42. TB-528C2（option）: SBC-7111 Riser Card, TB-528C2ME1 CN3 connect to SBC-7111 CN3 pin Header. TB-528C2ME1 Top： CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. LED1： Mini PCIe devices LED Status. PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used.
  • Page 50 GPIO1： (2.0mm Pitch 2x5 Pin Header), General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use. Signal Name Pin# Pin# Signal Name Ground SMB_DATA_R SMB_CLK_R SOC-GPIO22 SOC-GPIO23 SOC-GPIO25 SOC-GPIO24 USB_23： (2.0mm Pitch 2x5 Pin Header), Front USB connector, it provides one USB port via a dedicated USB cable, speed up to 480Mb/s.
  • Page 51 COM5(SBC-7111/COM3)： (Type DB9), serial port, standard DB9 serial port is provided to make a direct connection to serial devices. COM5 port is controlled by pins No.1~6 of JP5, select output Signal RI or 5V or 12v, For details, please refer to description of JP3.
  • Page 52 Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP6 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) COM_6（option，SBC-7111/COM3）：...
  • Page 53 CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with Smbus,SIM and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm. Signal Name Function support PCIe 1X...
  • Page 54 PS_ON Mode Close 1-2 Auto Power on (Default) Open 1-2 ATX Power PS_ON2（option）： (2.0mm Pitch 1X2 Pin Wafer). PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used.
  • Page 55 USB_23（option）： (2.0mm Pitch 2x5 Pin Header) ,Front USB connector, it provides one USB port via a dedicated USB cable, speed up to 480Mb/s. Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 USB3_N USB2_N USB3_P USB2_P Ground Ground Ground Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables.
  • Page 56 DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP5 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) JP6： (2.0mm Pitch 2x3 Pin Header), COM6 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM6 port.
  • Page 57 S1： PWR BT: POWER on/off Button, They are used to connect power switch button. The two pins are disconnected under normal condition. You may short them temporarily to realize system startup & shutdown or awaken the system from sleep state. PWR LED: POWER LED status.
  • Page 58 Signal Name Function support PCIe 1X USB2.0 (USB2) SMBus H1/H2: MPCIE1 SCREW HOLES, H2 for mini PCIE card (30mmx30mm) assemble. H1 for mini PCIE card (30mmx50.95mm) assemble. LED1： Mini PCIe devices LED Status. SIM1（option）： (SIM Socket 6 Pin), Support SIM Card devices. PS2：...
  • Page 59 Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables. Any inconformity may cause system down and even hardware damages. JP_SET（option）： (2.0mm Pitch 2x5 Pin Header). Signal Name Pin# Pin# Signal Name 3P3V_S5_USB 3P3V_S5...
  • Page 60 COM5(SBC-7111/COM3)： (2.0mm Pitch 2X5 Pin Header), COM5 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin# Signal Name Ground GPIO1： (2.0mm Pitch 2x5 Pin Header), General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use.
  • Page 61 Pin# Channel Signal Name Function CANL2 CAN bus Signal L Terminal resistor R-(internally connected to CANL2) CAN2 Shield cable (FG) Terminal resistor R+(internally connected to CANH2) CANH2 CAN bus Signal H CANL1 CAN bus Signal L Terminal resistor R-(internally connected to CANL1) CAN1 Shield cable (FG) Terminal resistor R+(internally connected to CANH1)

  • Page 62: Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation,.Press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 63: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 AHMI-8XX Series User Manual...

  • Page 64: Advanced Settings

    Second : 0 to 59 System Date: Set the system date, the date format is: Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled]...
  • Page 65 [Enabled] [Disabled] ACPI Sleep State: [S3 (Suspend to RAM) ] [Suspend Disabled] Lock Legacy Resources: [Disabled] [Enabled] 3.4.2 F81216SEC Super IO Configuration Super IO chip F81216SEC Serial Port 1 Configuration UART1 Mode Selection： [RS-232] [RS-485] [RS-422] Serial Port 2 Configuration Change Settings [Auto] Serial Port 3 Configuration...
  • Page 66 3.4.5 Serial Port Console Redirection COM0 Console Redirection [Disabled] [Enabled] Console Redirection Settings Legacy Console Redirection Legacy Console Redirection settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection [Disabled] [Enabled] Console Redirection Settings 3.4.6 CPU Configuration Socket 0 CPU Information Intel(R) Atom(TM) CPU E3845 @ 1.91GHz CPU Signature...
  • Page 67 Limit CPUID Maximum: [Disabled] [Enabled] Execute Disable Bit: [Enabled] [Disabled] Intel Virtualization Technology: [Enabled] [Disabled] Power Technology [Energy Efficient] [Disabled] [Custom] 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled]...
  • Page 68 SATA ODD Port [No ODD] [Porto ODD] [Port1 ODD] [Disabled] SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration...
  • Page 69 MIPI HSI Support [Disabled] LPSS Configuration LPSS DMA #1 Support [Enabled] LPSS DMA #2 Support [Enabled] LPSS I2C #1 Support [Enabled] LPSS I2C #2 Support [Enabled] LPSS I2C #3 Support [Enabled] LPSS I2C #4 Support [Enabled] LPSS I2C #5 Support [Enabled] LPSS I2C #6 Support [Enabled]...
  • Page 70 [Do not launch] [Legacy] Storage [UEFI] [Do not launch] [Legacy] Video [Legacy] [UEFI] [Do not launch] Other PCI devices [UEFI] [Do not launch] [Legacy] 3.4.15 SDIO Configuration 3.4.16 USB Configuration USB Configuration USB Module Version 8.11.02 USB Devices: 1 keyboard, 1 Mouse，2 Hubs Legacy USB Support: [Enabled] [Disabled]...

  • Page 71: Chipset Settings

    [5 sec] [1 sec] Device reset time-out: [20 sec] [10 sec] [30 sec] [40 sec] Device power-up delay [Auto] [Manual] 3.4.17 Platform Trust Technology 3.4.18 Security Configuration 3.5 Chipset Settings 3.5.1 Host Bridge ►Intel IGD Configuration ►IGD – LCD Control Force Lid Status [On] [Off]...
  • Page 72 [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory 4096 MB(DDR3L) Memory Slot0 4096 MB(DDR3L) DIMM#1 Not Present Max TOLUD [Dynamic] [2GB] [2.25GB] [2.5GB] [2.75GB] [3GB] 3.5.2 South Bridge ►Azalia HD Audio ►USB Configuration...

  • Page 73: Security Settings

    3.6 Security Settings 3.6.1 Administrator Password 3.6.2 User Password Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key.

  • Page 74: Boot Settings

    will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup. This will prevent unauthorized persons from changing your system configurations.

  • Page 75: Save & Exit Settings

    [Enabled] Fast Boot [Disabled] [Enabled] Boot Option Priorities Boot Option #1 Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save &...
  • Page 76 Discard Changes and Ext Exit Without Saving Quit without saving? [Yes] [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset Reset Without Saving Reset without saving? [Yes] [No] Save Changes Save Setup Values Save configuration? [Yes] [No] Discard Changes...

  • Page 77: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows 7. The software and drivers are included with the motherboard. The contents include Intel chipset driver, VGA driver, LAN drivers, Audio driver, USB 3.0 Driver Installation instructions are given below.

  • Page 78: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program. AHMI-8XX Series User Manual...
  • Page 79 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 80 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. AHMI-8XX Series User Manual...

  • Page 81: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. AHMI-8XX Series User Manual...
  • Page 82 Step 3. Read license agreement. Click Yes. Step 4. Click Next. AHMI-8XX Series User Manual...
  • Page 83 Step 5. Click Install. Step 6. Click Install. AHMI-8XX Series User Manual...
  • Page 84 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish. AHMI-8XX Series User Manual...

  • Page 85: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next. AHMI-8XX Series User Manual...
  • Page 86 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 87 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard. AHMI-8XX Series User Manual...

  • Page 88: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 89 Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. AHMI-8XX Series User Manual...

  • Page 90: Usb 3.0 Driver

    4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list Step 2. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 91 Step 3. Read the license agreement. Then click Yes to continue. Step 4. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 92 Step 5. Click Next to continue. Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. AHMI-8XX Series User Manual...

  • Page 93: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 5.1 Windows XP/2003/Vista/WIN7 Universal Driver Installation for PenMount 6000 Series Before installing the Windows XP/2003/Vista/WIN7 driver software, you must have the Windows XP/2003/Vista/WIN7 system installed and running on your computer.
  • Page 94 Step 2. Select Resistive Touch. Step 3. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 95 Step 4. Read the license agreement. Click I Agree to agree the license agreement. Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. AHMI-8XX Series User Manual...
  • Page 96 Step 6. Wait for installation. Then click Next to continue. Step 7. Click Continue Anyway. AHMI-8XX Series User Manual...
  • Page 97 Step 8. Click Finish to complete installation. 5.1.2 Installing Software (Projected Capacitive) Step 1. Insert the product CD, the screen below would appear. Click touch panel driver. AHMI-8XX Series User Manual...
  • Page 98 Step 2. Select Projected Capacitive. Step 3. Click Next to continue. AHMI-8XX Series User Manual...
  • Page 99 Step 4. Select I accept the terms of the license agreement. Click Next. Step 5. Click Install RS232 interface driver. AHMI-8XX Series User Manual...
  • Page 100 Step 6. Select None. Click Next. Step 7. Click OK. Step 8. Click Support Muti-Monitor System. Click Next. AHMI-8XX Series User Manual...
  • Page 101 Step 9. Go to C:\Program Files\eGalaxTouch. Click Next. Step 10. Click Next. AHMI-8XX Series User Manual...
  • Page 102 Step 11. Click Create a eGalaxTouch Utility shortcut on desktop. Click Next. Step 12. Wait for installation. Step 13. Click Yes to do 4 point calibration. AHMI-8XX Series User Manual...

  • Page 103: Software Functions

    5.2 Software Functions 5.2.1 Software Functions(Resistive Touch) Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 104 Standard Calibration Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’. Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens.
  • Page 105 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: AHMI-8XX Series User Manual...
  • Page 106 Step 3.Come back to “PenMount Control Panel” and select Tools then click Advanced Calibration. Step 4. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. AHMI-8XX Series User Manual...
  • Page 107 Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration. Turn off EEPROM The function disable for calibration data to write in storage Controller.
  • Page 108 About This panel displays information about the PenMount controller and driver version. AHMI-8XX Series User Manual...
  • Page 109 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows XP/2003/Vista/WIN7 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 110 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors.
  • Page 111 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares.
  • Page 112 PenMount Monitor has the following function Control Panel Open Control Panel Windows Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions.
  • Page 113 5.2.2 Software Functions(Projected Capacitive) General In this window, you can see there is USB Controller. Click OK to continue. Monitor Mapping to adjust touch panel to search for device AHMI-8XX Series User Manual...
  • Page 114 Setting Beep Beep On Touch Beep On Release Beep From System Beep Beep From Sound Card Linearization Style 9 points 25 points Double Click Time Shorter Longer Double Click Area Smaller Bigger Normal mode Simulate the mouse mode AHMI-8XX Series User Manual...
  • Page 115 Option Function Enable Constant Touch Enable Auto Right Click Enable Touch Enable Cursor Stabilization Constant Touch Area Auto Right Click Time AHMI-8XX Series User Manual...
  • Page 116 Tools Click OK to continue the settings. 4 Points Calibration Do 4 points alignment to match display. Clear and Calibrate Clear linearization parameter and do 4 points alignment. Linearization Do 9 points linearization for better touchscreen linearity. Draw Test Do draw test to verify the touch accuracy. AHMI-8XX Series User Manual...
  • Page 117 Display In this window, it shows the mode of display. Enable Multiple Monitors. Map to main display if system has only one display monitor Full Screen Lower Screen Left Screen Upper Screen Right Screen AHMI-8XX Series User Manual...
  • Page 118 Other Other mode of display. Quarter1~4 and Customized area. Active Area Drag active area to enable Active Area AHMI-8XX Series User Manual Function.
  • Page 119 Hardware Saturn Hardware Configuration AHMI-8XX Series User Manual...
  • Page 120 About To display information about eGalaxTouch and its version. AHMI-8XX Series User Manual...
