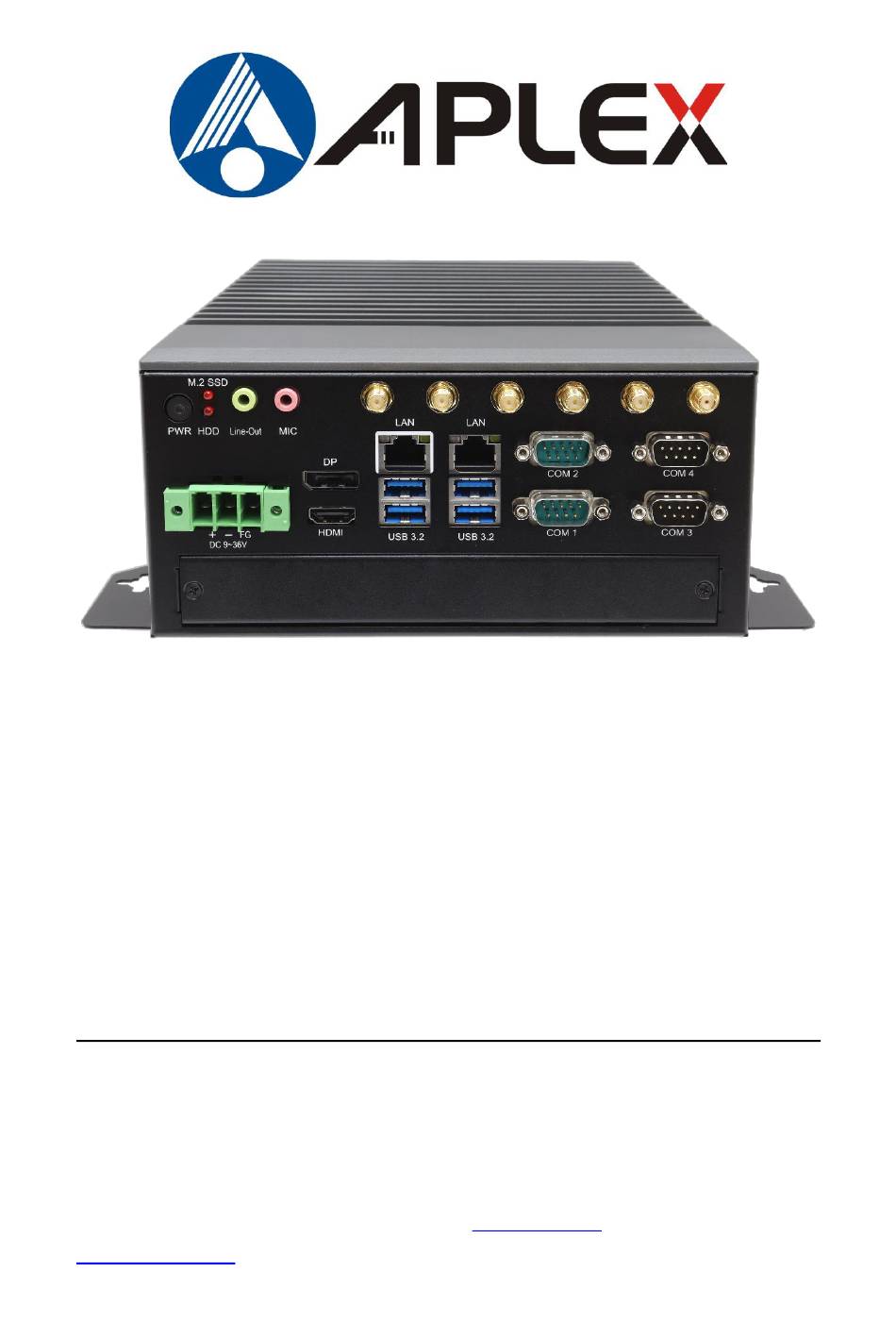

Aplex AVS-53 Series User Manual

12th /13th generation, intel core i9/i7/i5/i3 machine vision application system

Quick Links

Download this manual

AVS-53X Series

/13

Generation, Intel Core i9/i7/i5/i3

Machine Vision Application System

User Manual

Release Date

Revision

JUN 2024

V1.0

®2023 Aplex Technology, Inc.

Published in

Taiwan

Aplex Technology, Inc.

15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 Email:

aplex@aplex.com

URL:

http://www.aplex.com

Table of Contents

Need help?

Do you have a question about the AVS-53 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aplex AVS-53 Series

Page 1 Machine Vision Application System User Manual Release Date Revision JUN 2024 V1.0 ®2023 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 Email: aplex@aplex.com...
Page 2: Revision History
Revision History Reversion Date Description 2024/06/17 Official Version AVS-53X Series Machine Vision User Manual...
Page 3: Warning
Warning!________________________ This equipment will generate, use and radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which is designed to provide reasonable protection against such interference when operated in a commercial environment.
Page 4: Packing List
Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) AVS-53X Series Machine Vision User Manual...
Page 5: Safety Precautions
Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use.
Page 6: Table Of Contents
Table of Content Revision History ....................1 Warning!________________________ ..............2 Packing List ......................3 Safety Precautions ....................4 Chapter 1 Getting Started ..............7 1.1 Features ........................7 1.2 Specifications ......................7 1.3 Dimensions ......................11 1.4 Brief Description of AVS-53X Series ............... 17 Chapter 2 Hardware ..............
Page 7 Chapter 6 Riser Card Installation ..............117 AVS-53X Series Machine Vision User Manual...
Page 8: Chapter 1 Getting Started
Chapter 1 Getting Started 1.1 Features ⚫ Vertical System for Artificial Intelligent applications such as Machine Vision, Edge Computing, Machine Learning/Inference, Robotic Control, Automation, and so on. ⚫ High performance CPU of Intel 13 Gen. Core i Processor ⚫ Memory Support with DDR5 (4800MHz) SO-DIMM up to 64 GB ⚫...
Page 9 Intel® Core™ i5-13500TE Intel® Core™ i3-13100TE Intel® 12 Gen Core™ CPU (65W TDP) Intel® Core™ i9-12900E Intel® Core™ i7-12700E Intel® Core™ i5-12500E Intel® Core™ i3-12100E Intel® 12th Gen Core™ CPU (35W TDP) Intel® Core™ i9-12900TE Intel® Core™ i7-12700TE Intel® Core™ i5-12500TE Intel®...
Page 10 Power Button 1 x Power Button w/Power LED (on TB-630) (Default) 1 x 3-pin DC Power Input, Terminal Block(optional) 1 x M.2 SSD LED 1 x HDD LED via stacked LED (on TB-630) 1 x M.2 key M,2280/2242, SATA 6 Gb/PCIex4 NVME SSD auto detect 1 x AMT support Intel®...
Page 11 Mounting Wall Mount (Default) & Din Rail back side (optional) Dimensions(mm) 222 x 190 x 93 Net Weight(Kg) AVS-530: 3.9KGS AVS-532:4.56KGS AVS-534: Environmental Operating -20~60 °C(for 35W i3/i5 model) -20~50 °C(for 65W i9/i7 model) Temperature Storage Temperature -40~85 °C Storage Humidity 10 to 90% @ 40 °C , non-condensing Certification CE / FCC Class A...
Page 12: Dimensions
1.3 Dimensions AVS-530 ( Wall mount ) ( Default ) AVS-530 ( Din Rail ) (Option ) AVS-53X Series Machine Vision User Manual...
Page 13 AVS-530QL ( Wall mount ) ( Default ) AVS-530QL ( Din Rail ) (Option ) Figure 1.1: Dimension of AVS-530 & AVS-530QL AVS-53X Series Machine Vision User Manual...
Page 14 AVS-532 ( Wall mount ) ( Default ) AVS-532 ( Din Rail ) (Option ) AVS-53X Series Machine Vision User Manual...
Page 15 AVS-532QL ( Wall mount ) ( Default ) AVS-532QL ( Din Rail ) (Option ) Figure 1.2: Dimension of AVS-532 & AVS-532QL AVS-53X Series Machine Vision User Manual...
Page 16 AVS-534 ( Wall mount ) ( Default ) AVS-534 ( Din Rail ) (Option ) AVS-53X Series Machine Vision User Manual...
Page 17 AVS-534QL ( Wall Mount ) ( Default ) AVS-534QL ( Din Rail ) (Option ) Figure 1.3: Dimension of AVS-534 & AVS-534QL AVS-53X Series Machine Vision User Manual...
Page 18: Brief Description Of Avs-53X Series
1.4 Brief Description of AVS-53X Series AVS-53X series are high-efficiency BOX PC, powered by Intel 12 Generation Core i3/i5/i7/i9 processor and supports 2 x 262-pin DDR5 SO-DIMM memory, up to 64GB. They come with 4 x USB 3.2 Gen1 Type A, 4 x COM ports. The models support 2 x 2.5”...
Page 19 Figure 1.5: Appearance of AVS-532 Figure 1.6: Appearance of AVS-534 AVS-53X Series Machine Vision User Manual...
Page 20: Chapter 2 Hardware
Chapter 2 Hardware 2.1 Motherboard Introduction ASB-M9672 is a Non-standard industrial motherboard developed on the basis of Intel Q670E, which provides abundant peripheral interfaces to meet the needs of different customers. Also,it features four GbE ports, 4-COM ports，one M.2 M-key and one M.2 B-key and one M.2 E-key configuration, one DP port, one HDMI port, 4-USB 3.2 Gen1x1 ports, 2-GbE LAN ports.
Page 21 -Intel® Core™ i9-13900E 1.30GHz (up to 5.20GHz) 65W Chipset Intel® Q670E Chipset Memory Support 2x 262-pin DDR5 (4800MHz) SO-DIMM Memory, Dual Channel up to 64GB (32GB per Slot) Graphics Intel® UHD Graphics 730 (i3-12100TE/12100E/i3-13100TE/13100E) Intel® UHD Graphics 770 (12 Gen Core i5/i7/i9 Processor) Display Mode 1x HDMI 2.1 interface 1x DP 1.4a interface...
Page 22 2x UART, BTB Connector by CN1(COM5/COM6,to TB-619E2U2G8) Battery Support CR2477 Li battery by 2-pin header (1000mAh) Audio Support Audio via Realtek ALC888S-VD2 HD audio codec -Support Line-out, Line-in,MIC-in by 2x5Pin header (F_AUDIO1) Expansion 1x PCI-express x8 extend by 98 pin slot (PCIE8X_1) 1x PCI-express x16 extend by 164 pin slot (PCIE16X_1) CN1 to IO Expansion Board TB-619 Series: 80Pin BTB Connector: JAE_AX01F080VABB...
Page 23 Power Total Power Design 200W (w/o：PB-435) Consumption EMI/EMS Meet CE/FCC class A Board Size:154x60mm(TB-619E2U2G8 R1.00) 80Pin BTB Connector: JAE_AX01R080VABB 8-bit digital I/O by connector,w/Isolated (CN2) 4-bit digital Input TB-619E2U2G8 4-bit digital Output Switch, NPN/PNP mode select via dip 2x PCIe GbE LAN by Intel I211AT/I210AT 2x USB 3.2 Gen1x1 Single ports(USB1/USB2) 2x RS232,2x5Pin header (COM5/COM6, N/A) Board Size:45x21mm (TB-630)
Page 24 (units :mm) Figure 2.1: Motherboard ASB-M9672 Dimensions AVS-53X Series Machine Vision User Manual...
Page 25: Jumpers And Connectors Location
2.4 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top AVS-53X Series Machine Vision User Manual...
Page 26: Jumpers Setting And Connectors
Figure 2.3: Jumpers and Connectors Location- Board Bottom 2.5 Jumpers Setting and Connectors 1. SW1: AVS-53X Series Machine Vision User Manual...
Page 27 CMOS clear switch, CMOS clear operation will permanently reset old BIOS settings to factory defaults. CMOS Pin3 OFF NORMAL (Default) Pin3 ON Clear CMOS Pin4 OFF NORMAL (Default) Pin4 ON Press power button 10s to clear CMOS(optional) Procedures of CMOS clear: a) Turn off the system and unplug the power cord from the power outlet.
Page 28 3. DC_IN1: (7.62mm Pitch 1x3 Pin Connector),DC9V~DC36V System power input connector. Maximum power consumption of the whole machine is not more than 200 watts. If it is used in visual system of light control, please use 24V/250W power adapter. Note: The power consumption of power supply needs different combination tests. Pin# Power Input (DC_IN1) Pin1...
Page 29 Number PBF/MTF P-Cores/E-Cores/ Embedded Remarks Threads I3-12100TE 2.10 up to 4.00GHz 4P/0E/8T ● optional i5-12500TE 1.90 up to 4.30GHz 6P/0E/12T ● optional i7-12700TE 1.00 up to 4.60GHz 8P/4E/20T ● optional optional i9-12900TE 1.00 up to 4.80GHz 8P/8E/24T ● I3-12100E 3.20 up to 4.20GHz 4P/0E/8T ●...
Page 30 Note: Output power of cooling fan must be limited under 5W. 8. SYS_FAN_1: (2.54mm Pitch 1x4 Pin Header),System FAN connector, cooling fans can be connected directly for use. Pin# Signal Name Ground 12V_S0 SYS_FANTACH SYS_FANPWM Note: Output power of cooling fan must be limited under 5W. 9.
Page 31 i5-12500TE 4800 MT/s 64GB i7-12700TE 4800 MT/s 64GB i9-12900TE 4800 MT/s 64GB I3-12100E 4800 MT/s 64GB i5-12500E 4800 MT/s 64GB i7-12700E 4800 MT/s 64GB i9-12900E 4800 MT/s 64GB I3-13100TE 4800 MT/s 64GB i5-13500TE 4800 MT/s 64GB i7-13700TE 5600 MT/s 64GB i9-13900TE 5600 MT/s 64GB...
Page 32 JP1 Pin# Function Close 1-2 COM1 Pin9 RI (Ring Indicator) (Default) Close 3-4 COM1 Pin9 = +5V (optional) Close 5-6 COM1 Pin9 = +12V (optional) 14. COM1: Rear serial port, standard DB9 Male serial port is provided to COM1(Type DB9), make a direct connection to serial devices.
Page 33 RS485 (optional): Pin# Signal Name 485- 485+ Ground BIOS Config: [RS-232 Mode] [RS-485 Mode] [RS-422 Mode] 15. JP2: (2.0mm Pitch 2x3 Pin Header),COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port. JP2 Pin# Function Close 1-2 COM2 Pin9 RI (Ring Indicator) (Default)
Page 34 RS232 (Default): Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP2 select Setting (RI/5V/12V) RS422 (optional): Pin# Signal Name 422TX- 422TX+ 422RX+...
Page 35 [RS-232 Mode] [RS-485 Mode] [RS-422 Mode] 17. JP3: (2.0mm Pitch 2x3 Pin Header),COM3 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM3 port. JP3 Pin# Function Close 1-2 COM3 Pin9 RI (Ring Indicator) (Default) Close 3-4 COM3 Pin9=+5V/1A (optional) Close 5-6...
Page 36 19. JP4: (2.0mm Pitch 2x3 Pin Header),COM4 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM4 port. JP4 Pin# Function Close 1-2 COM4 Pin9 RI (Ring Indicator) (Default) Close 3-4 COM4 Pin9=+5V/1A (optional) Close 5-6 COM4 Pin9=+12V/1A (optional) 20.
Page 37 Each USB Type A Receptacle (2 Ports) Current limited value is 2.0A. If the external USB device current exceeds 2.0A, please separate connectors into different Receptacle. Connector Rear LAN port, one standard 10/100/1000/2500Mbps LAN1: (RJ45 RJ45 Ethernet port are provided. Used Intel I226-LM chipset. Corporate LAN1 product with support for Intel®...
Page 38 Each USB Type A Receptacle (2 Ports) Current limited value is 2.0A. If the external USB device current exceeds 2.0A, please separate connectors into different Receptacle. Connector Rear LAN port, one standard 10/100/1000/2500Mbps LAN2: (RJ45 RJ45 Ethernet port are provided. Used Intel I226-LM chipset. Status Description Active...
Page 39 different Receptacle. 24. SATA_P1/SATA_P2: (2.50mm Pitch 1x2 Wafer Pin Header), Four onboard 5V output connectors are reserved to provide power for SATA devices. Pin# Signal Name +DC5V_S0 Ground Note: Output current of the connector must not be above 1A. 25. SATA1/SATA2: SATA Connectors, two SATA connectors are provided,SATA1 and SATA2 (SATA 7P), transfer speed up to 6.0Gb/s.
Page 40 USB3.2 Gen1x1/USB2.0 signal ● SIM signal ● 29. H3,M2.B1.G3: M2_B1 card assemble. M2_B1 SCREW HOLES, H3 or M2.B1.G3 for The height can be adjusted according to the equipment. M2_B1 Card size (high) Remarks M2.B1.G3 3042 =6.45mm M2.B1.G3 H3=2.45mm 3052 H3=6.45mm =2.45mm M2.B1.G3 30.
Page 41 3042 H7=6.45mm =2.45mm M2.B1.G3 3052 =6.45mm M2.B1.G3 H7=2.45mm 33. BUZ1: Onboard buzzer. 34. LED1/LED2/LED3/LED4/LED5/LED6/LED7/LED8 LED1 STATUS. Green LED for M.2 M-Key status. LED2 STATUS. Green LED for M.2 B-Key status. LED3 STATUS. Green LED for M.2 E-Key status. LED4 STATUS. Green LED for Motherboard Power Supply 3.3V_S5 status. LED5 STATUS.
Page 42 Ground M.2-M/M.2-B LED- 3P3V_S0 Pin1-3: POWER LED, They are used to connect power LED. When the system is powered on or under S0/S1 state, the LED is normally on; when the system is under S4/S5 state, the LED is off. Pin2-4: HDD LED, They are used to connect hard disk activity LED.
Page 43 38. U18 (optional): Infineon’s Trusted Platform Module(TPM 2.0) SLB9672VU is a fully standard compliant TPM based on the latest Trusted Computing Group (TCG) specification 2.0. SLM9672VU2.0 Model TPM Function ASB-M9672QB ● 39. PCIE16X_1 (optional): (PCIe 164 Pin slot), Riser Card expansion connector. Can expand support one PCIeX16 or two PCIeX8 Signal.
Page 44 PCIe x16 (164Pin slot) *1 Note: Please correctly assemble the riser card, otherwise it will burn out the motherboard! If you do not know how to assemble, please contact technical support! 41. H4/H5/H6/H7 TB-619 series card TB-619E2U2G8 SCREW HOLES,MH5 and H4 and H5 and H6 and H7 for assemble.
Page 45 CN1:(JAE 2x40Pin Connector),For expand input connector, It provides two PCIeX1 Signal and two USB3.2 Gen1 Signal and two UART Signal and eight DI/DO Signal, board to board connected to ASB-M9672 card CN1. LAN1: Connector Rear LAN port, one standard 10/100/1000M RJ45 Ethernet (RJ45 port are provided.
Page 46 full-speed and low-speed signaling. Each USB Type A Receptacle (2 Ports) Current limited value is 2.0A. If the external USB device current exceeds 2.0A, please separate connectors into different Receptacle. SW1: Switch, NPN/PNP Setting, GPIO_OUT1 and GPIO_OUT2 and GPIO_OUT3 and GPIO_OUT23 NPN or PNP mode selection for CN2.
Page 47 GPIO_OUT3 FT_GPIO_GP21 OUTPUT GPIO_OUT4 FT_GPIO_GP20 OUTPUT COM5(N/A): (2.0mm Pitch 2x5 Pin Header),COM5 Port, standard RS232 ports are provided. They can be used directly via COM cable connection. The COM function is not available by default. If you need to modify BIOS file to support this function, please contact technical support.
Page 48 44. TB-630 R0.10 (optional): IO Expansion Board for AVS-530/AVS-532/AVS-534 series TB-630 PF1 connected to ASB-M9672 FP1 and F_AUDIO1. FP1: (2.0mm Pitch 2x5 Pin Header). It provides input connections for Audio and Power on/off and SATA LED and Power LED and M.2 M-Key/M.2 B-Key LED signals. They can be used directly via 2x7Pin Y type cable connection.
Page 49 system from sleep state. Power on/off Button, They are used to connect power switch button. The PS_ON1: two pins are disconnected under normal condition. You may short them temporarily to realize system startup & shutdown or awaken the system from sleep state.
Page 50 (5.08mm Pitch 1x4 Pin Connector), DC9V~DC36V power input connector. DC_IN1: Maximum power consumption of the whole machine is not more than 100 watts. PB-435 Power input（DC_IN1） Pin# Pin1 DC+9V~36V (Power Adapter input voltage) Pin2 DC+9V~36V (Power Adapter input voltage) Pin3 Ground Pin4 Ground...
Page 51 Ground 12V_S5 Ground 12V_S5 Ground Ground (4.20mm Pitch 2x4 Pin Connector),DC12V power output connector. ATX2: Maximum power consumption of the whole machine is not more than 75 watts. PB-435 Power output（ATX2） Signal Name Pin# Pin# Signal Name Ground 12V_S5 Ground 12V_S5 Ground 12V_S5...
Page 52 Slot# Connect Function Select 1 Select 2 164Pin slot PCIe x16 Signal PCIe x8 Signal 164Pin slot PCIe x8 Signal 64Pin slot PCIe x4 Signal PCIe x4 Signal 64Pin slot PCIe x4 Signal PCIe x4 Signal 47. TB-620E42E161 R0.10 (optional) TB-620E42E161 connect to ASB-M9672 PCIE16X_1 and PCIE8X_1 connector, It provides two 64Pin slots, one 164Pin slot.
Page 53 Slot# Connect Function 164Pin slot PCIe x16 Signal 64Pin slot PCIe x4 Signal 64Pin slot PCIe x4 Signal 48. TB-620E41E161 R1.00 (optional) TB-620E41E161 connect to ASB-M9672 PCIE_16X1 and PCIE_8X1 connector, It provides one 164Pin slot, one 64Pin slot. Can expand support one PCIeX16 Signal. PCI express X16 supports GEN1 and GEN2 and GEN3 mode.
Page 54 Slot# Connect Function 164Pin slot PCIe x16 Signal 64Pin slot PCIe x4 Signal AVS-53X Series Machine Vision User Manual...
Page 55: Chapter 3 Bios Setup
Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation, press [Delete] key to enter CMOS Setup. After optimizing, exits CMOS Setup. 3.2 BIOS Setup Utility Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing system summary information will appear.
Page 56: Main Settings
3.3 Main Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit MEBx BIOS Information Choose the system default BIOS Vendor American language Megatrends Core Version 5.27 BIOS Version B0.04.00 Build Date and Time 04/24/2024 15:54:30 Access Level Administrator Silicon Version 0C.00.8B.10...
Page 57: Advanced Settings
Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit MEBx ►Super IO Configuration System Super IO Chip ►Hardware Monitor Parameters. ►Network Stack Configuration ►NVMe Configuration →←: Select Screen ↑↓...
Page 58 Serial Port 2 Configuration Serial Port: [Disabled] [Enabled] COM Mode Select: [RS232] [RS485] [RS422] Device Settings IO=2F8h; IRQ=3; Serial Port 3 Configuration: Serial Port 3 Configuration Serial Port: [Disabled] [Enabled] COM Mode Select: [RS232] [RS485] [RS422] Device Settings IO=3E8h; IRQ=7; Serial Port 4 Configuration: Serial Port 4 Configuration Serial Port:...
Page 59 CpuFan Setting Smart Fan 1 Mode: [Software Mode] [Automatic Mode] Fan 1 Type: [PWM] [RPM] Tempurature select: [TMPIN1] [TMPIN2] [TMPIN3] Fan off temperature limit: Fan start temperature limit: Fan full speed temperature limit: Fan start PWM: PWM SLOPE SETTING: ΔTemperature: SysFan1 Setting SysFan1 Setting Smart Fan 2 Mode:...
Page 60 SysFan2 Setting Smart Fan 3 Mode: [Software Mode] [Automatic Mode] Fan 2 Type: [PWM] [RPM] Tempurature select: [TMPIN1] [TMPIN2] [TMPIN3] Fan off temperature limit: Fan start temperature limit: Fan full speed temperature limit: Fan start PWM: PWM SLOPE SETTING: ΔTemperature: SysFan3 Setting SysFan3 Setting Ex-Start Limit:...
Page 61: Chipset Settings
3.4.3 Network Stack Configuration Network Stack: [Disabled] [Enabled] 3.4.4 NVMe Configuration NVMe Configuration No NVME Device Found 3.5 Chipset Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit MEBx Chassis intrusion switch [Disabled] Chassis intrusion switch ►System Agent (SA) Configuration ►PCH-IO Configuration →←: Select Screen...
Page 62 [Disabled] [Enabled] VT-d: [Enabled] [Disabled] Primary Display: [Auto] [IGFX] [PEG Slot] Internal Graphics: [Auto] [Disabled] [Enabled] 3.5.2 PCH-IO Configuration PCH-IO Configuration PCI Express Configuration PCI Express Configuration PCIe Express Root Port 1 PCI Express Root Port 1: [Disabled] [Enabled] Connection Type: [Built - in] [Slot] ASPM:...
Page 63 [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] AVS-53X Series Machine Vision User Manual...
Page 64 Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto]...
Page 65 [Disabled] [Enabled] Connection Type: [Built - in] [Slot] ASPM: [Disabled] [L1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] L1 Low: [Disabled] [Enabled] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled]...
Page 66 [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration...
Page 67 Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCIe Express Root Port 3 PCI Express Root Port 3: [Disabled] [Enabled] Connection Type: [Built - in] [Slot] ASPM: [Disabled]...
Page 68 [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: AVS-53X Series Machine Vision User Manual...
Page 69 [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable:...
Page 70 ASPM: [Disabled] [L1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] L1 Low: [Disabled] [Enabled] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] AVS-53X Series Machine Vision User Manual...
Page 71 SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled]...
Page 72 [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCIe Express Root Port 5 PCI Express Root Port 5: [Disabled] [Enabled] Connection Type: [Built - in] [Slot] ASPM: [Disabled] [L1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] L1 Low: [Disabled] [Enabled]...
Page 73 [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing:...
Page 74 [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCIe Express Root Port 6 PCI Express Root Port 6:...
Page 75 [Disabled] [L1.1] [L1.1 & L1.2] L1 Low: [Disabled] [Enabled] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] AVS-53X Series Machine Vision User Manual...
Page 76 [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override:...
Page 77 [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCIe Express Root Port 7 PCI Express Root Port 7: [Disabled] [Enabled] Connection Type: [Built - in] [Slot] ASPM: [Disabled] [L1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] L1 Low: [Disabled] [Enabled] ACS: [Disabled] [Enabled]...
Page 78 [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout:...
Page 79 Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCIe Express Root Port 8 PCI Express Root Port 8: [Disabled] [Enabled] Connection Type:...
Page 80 [Enabled] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: AVS-53X Series Machine Vision User Manual...
Page 81 [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled]...
Page 82 PCI Express Root Port 9 Not present in this SKU PCI Express Root Port 10 Not present in this SKU PCI Express Root Port 11 Not present in this SKU PCI Express Root Port 12 Not present in this SKU PCIe Express Root Port 13 PCI Express Root Port 13: [Disabled]...
Page 83 FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout:...
Page 84 Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCI Express Root Port 14 Shadowed by x2/x4 port PCI Express Root Port 15 Shadowed by x2/x4 port PCI Express Root Port 16...
Page 85 [Slot] ASPM: [Disabled] [L1] [Auto] L1 Substates: [Disabled] [L1.1] [L1.1 & L1.2] L1 Low: [Disabled] [Enabled] ACS: [Disabled] [Enabled] PTM: [Disabled] [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] AVS-53X Series Machine Vision User Manual...
Page 86 [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled]...
Page 87 Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable: [Disabled] [Enabled] PCI Express Root Port 22 Shadowed by x2/x4 port PCI Express Root Port 23 Shadowed by x2/x4 port PCI Express Root Port 24 Shadowed by x2/x4 port PCIe Express Root Port 25 PCI Express Root Port 25:...
Page 88 [Enabled] DPC: [Disabled] [Enabled] EDPC: [Disabled] [Enabled] URR: [Disabled] [Enabled] FER: [Disabled] [Enabled] NFER: [Disabled] [Enabled] CER: [Disabled] [Enabled] SEFE: [Disabled] [Enabled] SENFE: [Disabled] [Enabled] SECE: [Disabled] [Enabled] PME SCI: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Advanced Error Reporting: [Disabled] [Enabled] PCIe Speed: AVS-53X Series Machine Vision User Manual...
Page 89 [Auto] [Gen1] [Gen2] [Gen3] [Gen4] Transmitter Half Swing: [Disabled] [Enabled] Detect Timeout: Extra Bus Reserved: Reserved Memory: Reserved I/O: PCH PCIe LTR Configuration LTR: [Disabled] [Enabled] Snoop Latency Override: [Disabled] [Manual] [Auto] Non Snoop Latency Override: [Disabled] [Manual] [Auto] LTR Lock: [Disabled] [Enabled] Peer Memory Write Enable:...
Page 90 SATA Controller(s): [Enabled] [Disabled] Serial ATA Port 0 Empty Software Preserve unknown Port 0: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Configured as eSATA Hot Plug supported External: [Disabled] [Enabled] Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown]...
Page 91 Serial ATA Port 1 Empty Software Preserve unknown Port 1: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Configured as eSATA Hot Plug supported External: [Disabled] [Enabled] Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect]...
Page 92 [Enabled] Hot Plug: [Disabled] [Enabled] Configured as eSATA Hot Plug supported External: [Disabled] [Enabled] Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 2 DevSlp: [Disabled] [Enabled] DITO Configuration: [Disabled]...
Page 93 [Disabled] [Enabled] Configured as eSATA Hot Plug supported External: [Disabled] [Enabled] Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 3 DevSlp: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value...
Page 94 External: [Disabled] [Enabled] Spin Up Device: [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 4 DevSlp: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value DM Value Serial ATA Port 5 Empty Software Preserve unknown...
Page 95 [Disabled] [Enabled] SATA Device Type: [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 5 DevSlp: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value DM Value Serial ATA Port 6 Empty Software Preserve unknown Port 6: [Disabled] [Enabled]...
Page 96 [Hard Disk Drive] [Solid State Drive] Topology: [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 6 DevSlp: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value DM Value Serial ATA Port 7 Empty Software Preserve unknown Port 7: [Disabled] [Enabled] Hot Plug: [Disabled] [Enabled] Configured as eSATA...
Page 97 [Unknown] [ISATA] [Direct Connect] [Flex] [M2] SATA Port 7 DevSlp: [Disabled] [Enabled] DITO Configuration: [Disabled] [Enabled] DITO Value DM Value USB Configuration USB Configuration xDCI Support: [Disabled] [Enabled] USB PDO Programming: [Disabled] [Enabled] USB Overcurrent: [Disabled] [Enabled] USB Overcurrent Lock: [Disabled] [Enabled] USB Audio Offload:...
Page 98: Security Settings
[Disabled] [Select Per-Pin] 3.6 Security Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit MEBx Password Description Set Administrator Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.
Page 99 3.6.1 Administrator Password 3.6.2 User Password AVS-53X Series Machine Vision User Manual...
Page 100: Boot Settings
3.7 Boot Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit MEBx Boot Configuration Number of seconds toWait for Setup Prompt Timeout Setup Activation key. Bootup NumLock State [On] 65535(0xFFFF)means Indef Quiet Boot [Enabled] inite waiting. Fast Boot [Disabled] Boot mode select...
Page 101: Save & Exit Settings
[LEGACY] 3.8 Save & Exit Settings Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit MEBx Save options Exit system setup after Save Changes and Exit Saving the changes. Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Save Changes Discard Changes...
Page 102: Mebxsettings
[Yes] [No] Discard Changes and Reset Reset Without saving? [Yes] [No] Save Changes Save configuration? [Yes] [No] Discard Changes Load Previous Values? [Yes] [No] Default Options Restore Default Load Optimized Defaults? [Yes] [No] Save as User Default Save configuration? [Yes] [No] Restore User Default Restore User Defaults?
Page 103 Intel® ME Password MEBx Login →←: Select Screen ↑↓ : Select Item Enter: Select +/- : Charge Opt. F1 : General Help F3:Optimized Defaults F4: Save& Exit ESC: Exit Version 2.22.1287. Copyright (C) 2024 AMI Intel® ME Password: Enter Current Password, the default password is：[admin] Create New Password：...
Page 104 Intel(R) AMT Settings Aptio Setup - AMI Main Advanced Chipset Boot Security Save & Exit MEBx Intel(R) MEBx Login [Enabled] ►Intel(R) AMT Configuration Change ME Password →←: Select Screen ↑↓ : Select Item Enter: Select +/- : Charge Opt. F1 : General Help F3:Optimized Defaults F4: Save&...
Page 105 [KVM] [ALL] Opt-in Configurable from Remote IT: [Disabled] [Enable] Password Policy: [Default Password Only] [During Setup And Configuration] [Anytime] Network Setup Intel(R) ME Network Name Settings FQDN Shared/Dedicated FQDN: [Disabled] [Shared] Dynamic DNS Update: [Disabled] [Enabled] TCP/IP Settings Wired LAN IPV4 Configuration DHCP Mode: [Disabled] [Enabled]...
Page 106 Manage Certificates Activate Remote Configuration Power Control These configurations are effective only after ME provisioning has started ME ON in Host Sleep States: [Desktop: ON in S0] [Desktop: ON in S0, ME Wake in S3,S4-5] Idle Timeout 65535 Change ME Password Enter Current Password Create New Password Confirm New Password...
Page 107: Chapter 4 Installation Of Drivers
Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under Windows 8.1 & 10. The software and drivers are included with the motherboard. The contents include Intel Chipset, Graphics driver, Audio driver, LAN Driver and Intel® ME Driver.
Page 108 Step3. Click Install to begin the installation. Step5. Click Finish to complete the setup process. AVS-53X Series Machine Vision User Manual...
Page 109: Intel® Uhd Graphics Driver
4.2 Intel® UHD Graphics Driver To install the Intel® UHD Graphics Driver, please follow the steps below. Step1. Select Graphics Driver Installer from the list. Step2. Click Begin Installation. AVS-53X Series Machine Vision User Manual...
Page 110 Step3. Read the license agreement. Click I agree to accept all of the terms of the license agreement. Step4. Click Start to continue. Step5. Click Finish to complete the setup process. AVS-53X Series Machine Vision User Manual...
Page 111: Realtek Hd Audio Driver Installation
Realtek HD Audio Driver Installation To install Realtek HD Audio Driver, please follow the steps below. Step1. Select Realtek HD Audio Driver from the list. Step2. Click Next to continue. Step3. Click Yes, I want to restart my computer now. Click Finish to complete the AVS-53X Series Machine Vision User Manual...
Page 112: Lan Driver
installation. LAN Driver To install the LAN Driver, please follow the steps below. Step1. Select LAN Driver from the list Step2. Click OK to continue. Step3. Driver has been installed successfully. Choose Close to finish installation. AVS-53X Series Machine Vision User Manual...
Page 113: Intel® Me Driver
4.5 Intel® ME Driver To install the Intel® ME Driver, please follow the steps below. Step1. Select Intel® ME Driver from the list Step2. Click Next to continue. Step3. Choose I accept the terms in the License Agreement and click Next to begin the installation.
Page 114 Step4. Click Next to continue. Step6. Click Finish to complete the installation. AVS-53X Series Machine Vision User Manual...
Page 115 AVS-53X Series Machine Vision User Manual...
Page 116: Chapter 5 Mounting Suggestions
Chapter 5 Mounting Suggestions 5.1 AVS-530 Wall Mount and Din Rail Mount AVS-530 ( Wall mount ) AVS-530 ( Din Rail ) AVS-530QL ( Wall mount ) AVS-530QL ( Din Rail ) Figure 5.1 Mounting of AVS-530/ AVS-530QL 5.2 AVS-532 Wall Mount and Din Rail Mount AVS-532 ( Wall mount ) AVS-532 ( Din Rail ) AVS-53X Series Machine Vision User Manual...
Page 117: Wall Mount And Din Rail Mount
AVS-532QL ( Wall mount ) AVS-532QL ( Din Rail ) Figure 5.2 Mounting of AVS-532/ AVS-532QL 5.3 AVS-534 Wall Mount and Din Rail Mount AVS-534 ( Wall mount ) AVS-534 ( Din Rail ) AVS-534QL ( Wall mount ) AVS-534QL ( Din Rail ) Figure 5.3 Mounting of AVS-534/ AVS-534QL AVS-53X Series Machine Vision User Manual...
Page 118: Riser Card Installation
Chapter 6 Riser Card Installation This chapter describes the installation procedures of Riser Card. Please follow the step to secure your Riser Card. Step1_Teardown six screws from Bottom of AVS-534 and remove the Bottom Cover. Step2_Teardown two PCIe Bracket Screws and remove two PCIe Bracket. Step3_The PCIe bracket of the Riser card needs to pass through the groove gap of the chassis of BOX PC.
Page 119 Step4_Install GPU Card into AVS-534, Combine with TB-620E42E162 and screwed two screws PCIe Bracket for fixed the GPU Card. Step5_Connect the GPU power cable to the connector on the GPU card. Both connector ends are keyed and can only be connected in one direction. Step6_Recover the AVS-534 Bottom Cover and Screwed six screws on AVS-534 Bottom Cover.
Page 120 Note: If GPU Card need to Provide Extra Power, Please connect GPU power cable Between GPU card and Power Board PB-435. GPU Card golden finger slot has only one direction to install with TB-620E42E162, don't force insert wrong direction. AVS-53X Series Machine Vision User Manual...
