Description and operating instructions
Industrial Ethernet IP67 Switch
Hirschmann. Simply a good Connection.
OCTOPUS 5TX-EEC
Order No.
943 892-001
942 052-001

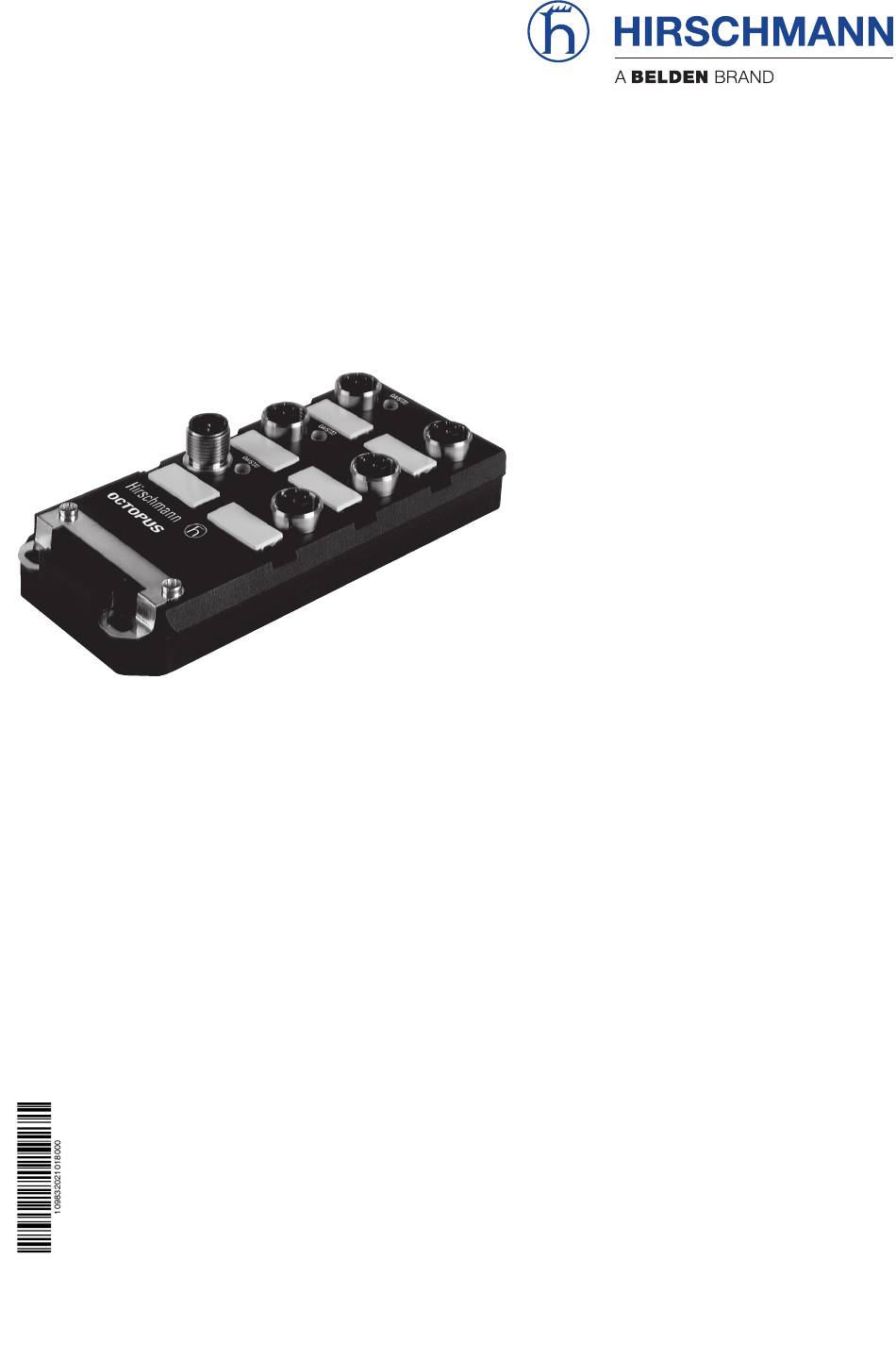

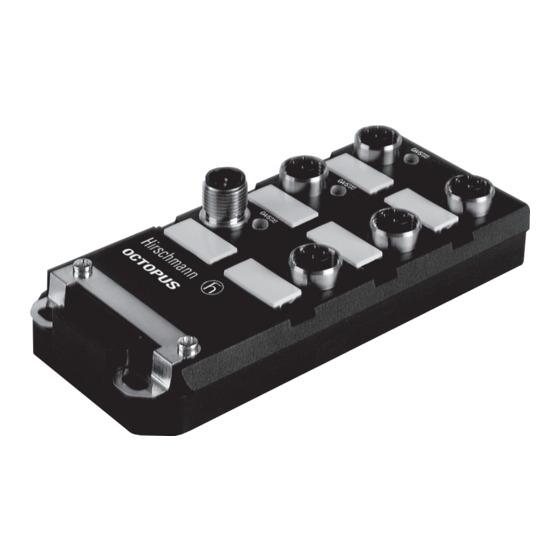

The Ethernet switch OCTOPUS 5TX-EEC has
been especially designed for use in indu-
strial environments. It supports Ethernet
10 MBit/s and Fast Ethernet 100 MBit/s.
The Ethernet switch modules support swit-
ched Ethernet networks in accordance with
IEEE standard 802.3 (10BASE-T) or 802.3u
(100BASE-TX) using copper technology.
The switch modules are fitted at the instal-
lation site using screws.
The OCTOPUS 5TX-EEC modules have five
10/100 Mbit/s twisted pair ports (10BASE-
T/100BASE-TX, shielded M12 connectors).
It is possible to connect up to five DTEs
(data terminal equipment) or other TP/TX
network segments to these ports using
twisted pair cabling.
The TP ports support auto negotiation,
autopolarity and autocrossing.
The IP67 switch conforms with protection
class IP67 (protection against shock and
foreign particles: dust proof, water protec-
tion: protected against the effects at tem-
porary immersion in water).
The device with the order number
942 052-001 additionally offers an IP-based
Quality of Service function (QoS).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Belden Hirschmann OCTOPUS 5TX EEC
Summary of Contents for Belden Hirschmann OCTOPUS 5TX EEC
- Page 1 Description and operating instructions OCTOPUS 5TX-EEC Order No. Industrial Ethernet IP67 Switch 943 892-001 942 052-001 The Ethernet switch OCTOPUS 5TX-EEC has been especially designed for use in indu- strial environments. It supports Ethernet 10 MBit/s and Fast Ethernet 100 MBit/s. The Ethernet switch modules support swit- ched Ethernet networks in accordance with IEEE standard 802.3 (10BASE-T) or 802.3u...
-
Page 2: Safety Instructions
The performance features described here We would furthermore point out that for Certified usage are binding only if they have been expressly reasons of simplicity, these operating Please observe the following: guaranteed in the contract. We have instructions cannot describe every checked that the contents of the technical conceivable problem associated with the Warning... - Page 3 Relevant for North America: The product can be used in the indu- Warning! The subject unit is to be suppplied by a strial sphere. Failure to observe the information Class 2 power source complying with the – Interference immunity: given in the warnings could result in requirements of the National Electrical EN 61000-6-2:2005 serious injury and/or major damage.
-
Page 4: Display Elements
type field. Data packets with VLAN tag are 1.4 DISPLAY ELEMENTS Five 4-pin M12 sockets (twisted pair ports 1 to 5) transmitted unchanged by the OCTOPUS Equipment status LED display elements 5TX-EEC. These LEDs provide information about per port statuses which affect the function of the Quality of Service, IP-based (QoS) entire OCTOPUS 5TX-EEC. - Page 5 – Voltage supply: The supply voltage is IP67 switch electrically isolated from the housing. OCTOPUS Ground DA/STAT DA/STAT The device is grounded via the fixing screws of the chassis or via the pin 5 of the power DA/STAT DA/STAT supply connector. We recommend the grounding via the fixing DA/STAT screws.
-
Page 6: Technical Data
5. Technical data General data Operating voltage Rated voltage range DC 12 V DC to 24 V DC Safety extra-low voltage (SELV) Relevant for North America: NEC Class 2 power source max. 5 A Max. voltage range DC min. 9.0 V DC to max. 32 V DC (Not applicable under UL regulations) Buffer time min.
