LCD FUNCTIONS

1. LCD Operational Buttons
Firmware PE60 X.XXX-X
SPXFLOW 2022
ENTER
spxflow.com

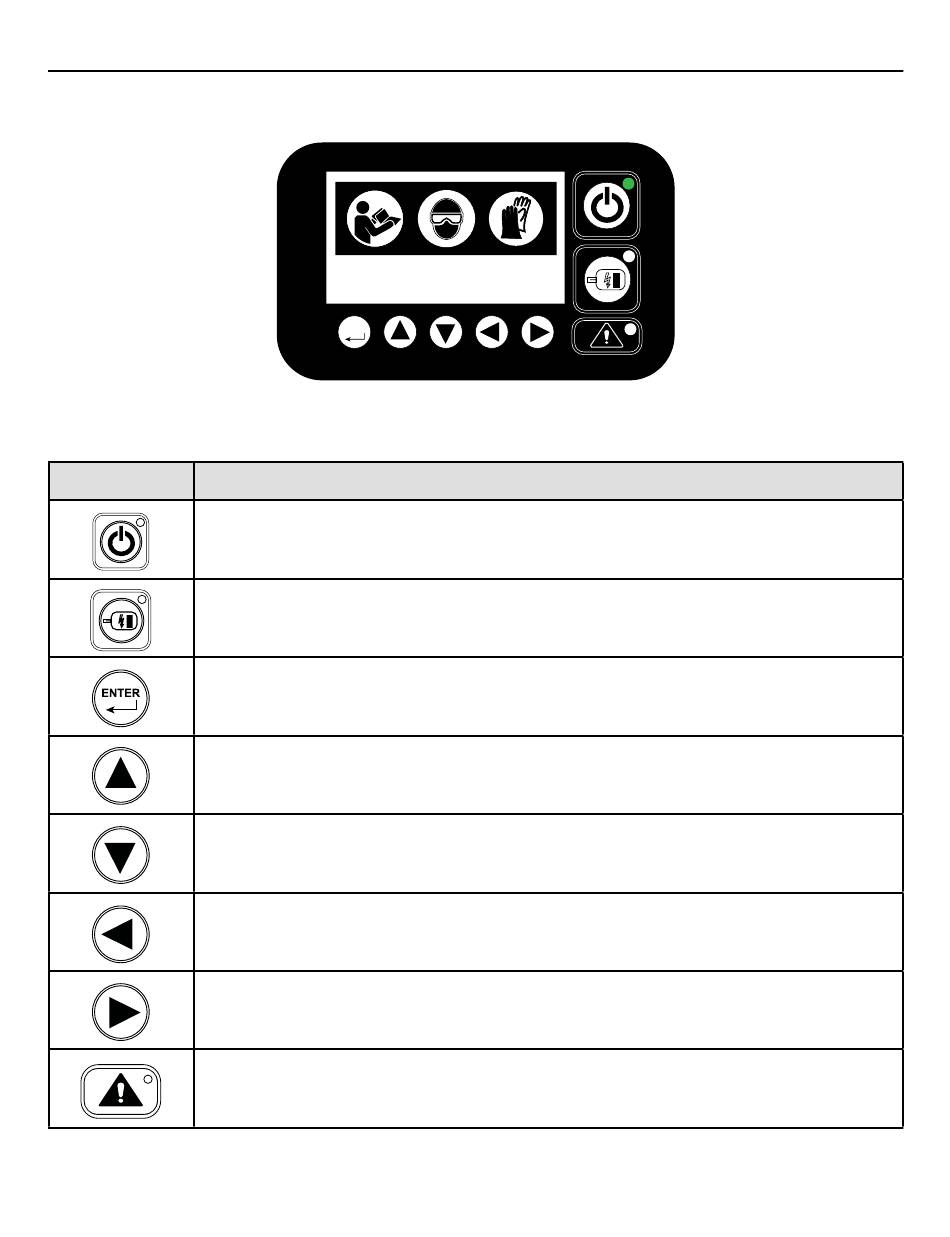

Screen 1. LCD Display
(-X DESIGNATES PROFILE)
Buttons/ Symbol Functions
ON/OFF - Used to turn the pump ON and OFF� Which supplies power to the pump and hand
pendant�
MOTOR - Used to turn the motor ON and OFF�
ENTER - Used to open the "MENU MODE" and to choose specific choices.
UP ARROW - Used to move the cursor upward direction and to set the Pressure/Torque
values�
DOWN ARROW - Used to move the cursor downward direction and to set the Pressure/Torque
values�
LEFT ARROW - Used to move the cursor left direction�
RIGHT ARROW - Used to move the cursor right direction�
FAULT LIGHT - Illuminates when a fault error is detected�
