LCD Functions Continued
H. FACTORY RESET
• Press the "ENTER" button to reset�
• Once completed, display will automatically
return to "OUTPUT SCREEN" (Refer to
screen 28)�
NOTE: Factory Reset will not clear History or
Fault data.
Fault Mode Cause/Detection Method
Keypad Button
During startup, system looks
Down
to verify if a button(s) is
depressed or activated on
the LCD keypad�
Change Oil
Timer
Notification
Brush Wear
Timer
Notification
Pressure
During startup, system looks
Sensor
to verify for connection�
Pendant
During startup, system looks
Button Down
to verify if a button(s) is
depressed or activated on
the pendant�
© SPX FLOW, Inc.

FAULT MODE GUIDE

Effect
Red fault light comes ON,
LCD will display an error
message, "Keypad Button
Down"�
Service Oil Icon will appear
after the first 50 hour
interval�
Wrench Icon will appear
after the first 50 hour interval
from reset, inspect will
extend another 25 hours
before the light come back
on� Replace will reset back
to 50 hours interval (these
selections will be logged in
History)�
Red fault light comes
ON, LCD will display an
error message, "Pressure
Sensor"�
Red fault light comes on,
LCD will display an error
message, "Pendant Button
Down"�
13

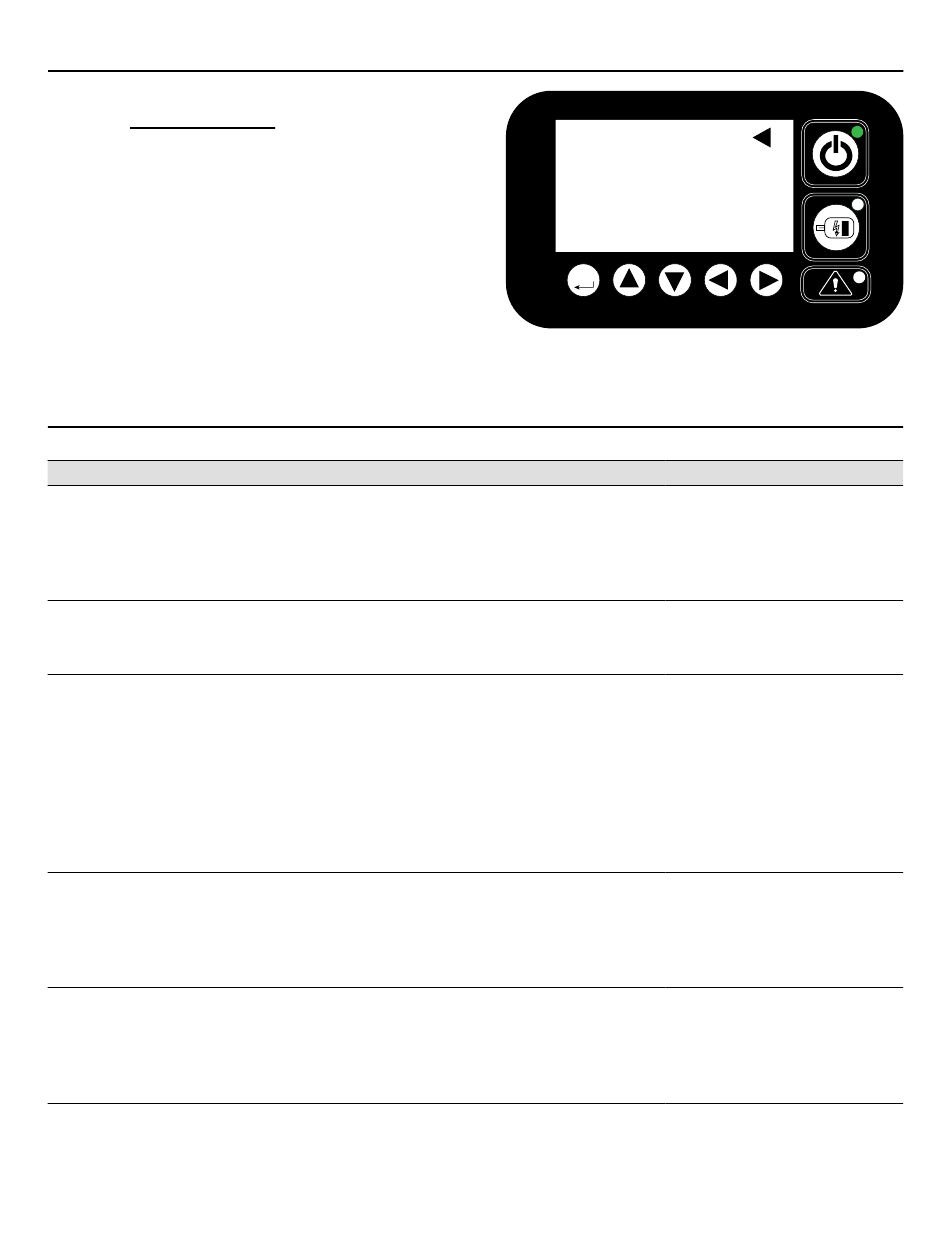

FACTORY RESET
PRESS ENTER TO SET
DEFAULT VALUES
ENTER
Screen 28
User action
Disconnect power source
before service� Once
completed, power up system
so unit may perform another
system check�
To clear Icon, user must
choose "Replace" in settings
to reset oil change timer�
Choose "Inspect" or
"replace"�
Disconnect power source
before service� Once
completed, power up system
so unit may perform another
system check�
Disconnect power source
before service� Once
completed, power up system
so unit may perform another
system check�
