LCD Functions Continued
G. HISTORY

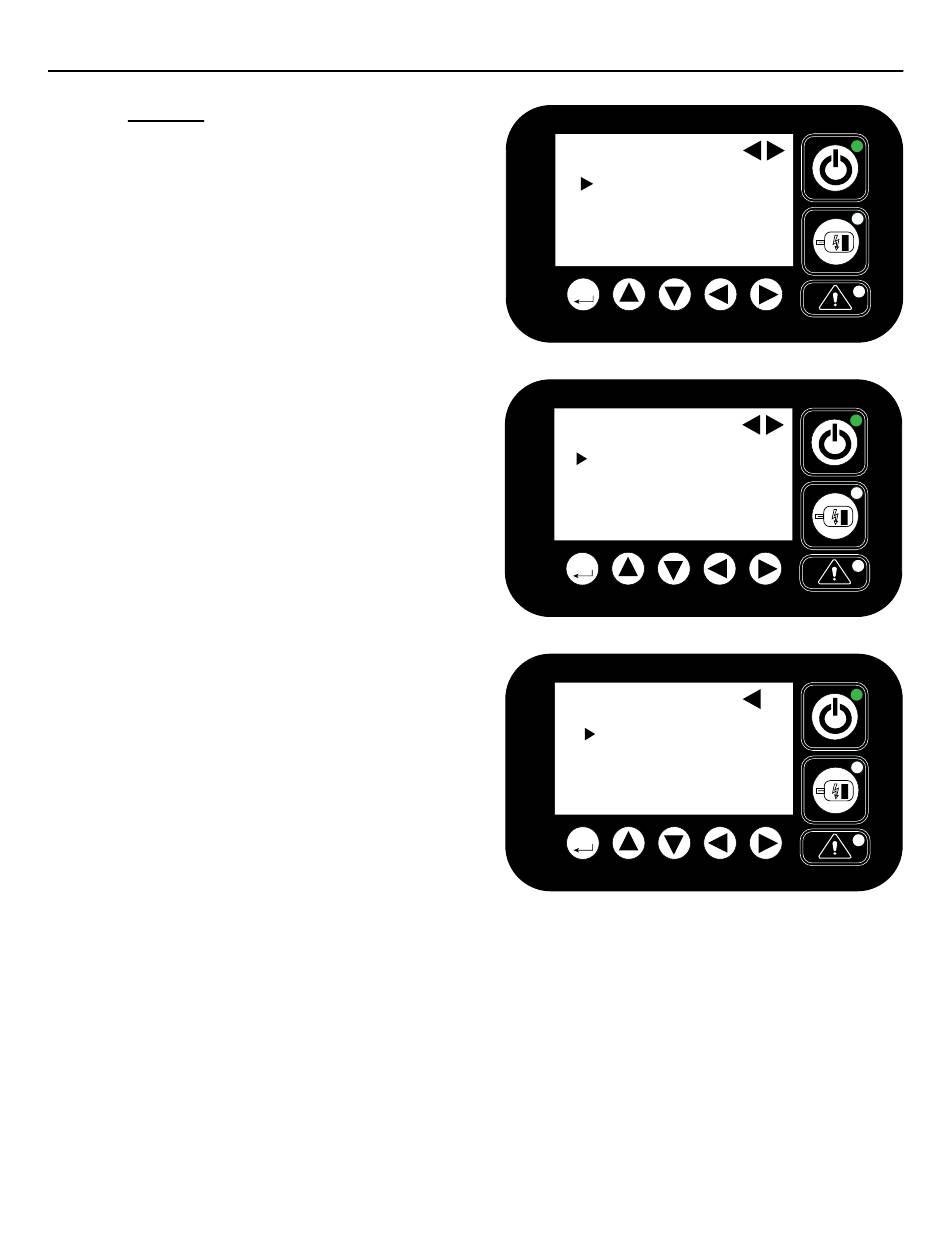

Refer to screen 25, 26 and 27 to see history
details of the pump unit�
1� MOTOR RUN TIME
• Gives information on the total number of
hours the motor has been operated�
2� POWER DISRUPTIONS
• Gives information on the total number of
times the main supply was down�
3� POWER UP CYCLES
• Gives information on the total number of
times PCB has been powered up�
4� BRUSH INSPECTIONS
• Gives information on total number of
times brush inspection was done since
last replacement�
5� BRUSH REPLACEMENTS
• Gives information on total number of
occurrences� It will also zero out the
brush inspection data and the count will
start over�
6� POWER ON
• Gives information on the total number of
hours the pump has been put on�
7� HIGH PRESSURE
• Gives information on number
occurrence of 80% full of pressure
transducer (I�e�, 8,000 PSI)
8� OIL REPLACEMENTS
• Gives information on the total
number of times oil replacement was
recommended�
9� TOTAL FAULTS
• Gives information on the total number of faults occurred�
10� "A" SOLENOID
• Gives information on "A" port solenoid cycle count (Only applies to firmware with solenoids).
11� "B" SOLENOID
• Gives information on "B" port solenoid cycle count (Only applies to firmware with solenoids).
12� EXIT
• To return to the "OUTPUT SCREEN" select "EXIT", then press the "ENTER" button�
