HPE Aruba Networking 580EX Series Installation Manual

HPE Aruba Networking 580EX Series
Hazardous Location Outdoor Access Points
Installation Guide
The 580EX Series hazardous location outdoor access points (AP-585EX and AP-587EX) support the IEEE 802.11ax
standard, delivering high performance with the MIMO (Multiple-Input, Multiple-Output) and OFDMA (Orthogonal
Frequency Division Multiple Access) technologies, while also supporting 802.11a/b/g/n/ac wireless services.
Package Contents

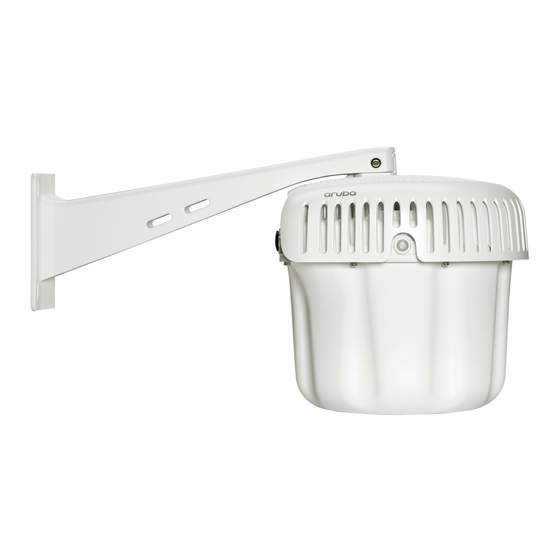

580EX Series access point

Cable gland (Type: 20A2F) x 2

USB Type-C console cable x 1

Ground lug kit x 1

Tools Required
Phillips screwdriver (#2 for M4x6 screw)

Flat blade screwdriver (for Ethernet and AC port cap)

The weatherproof caps for Ethernet, AC and Console interfaces are connected to the access point, not loose in
the package.
Mounting kits for use with the 580EX Series access points are sold separately. Contact your HPE Aruba
Networking sales representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Rev 06 | March 2024
1
