- Page 1 HPE Aruba Networking 570 Series Outdoor Access Points Installation Guide Published: May 2024 Edition 04...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Package Contents

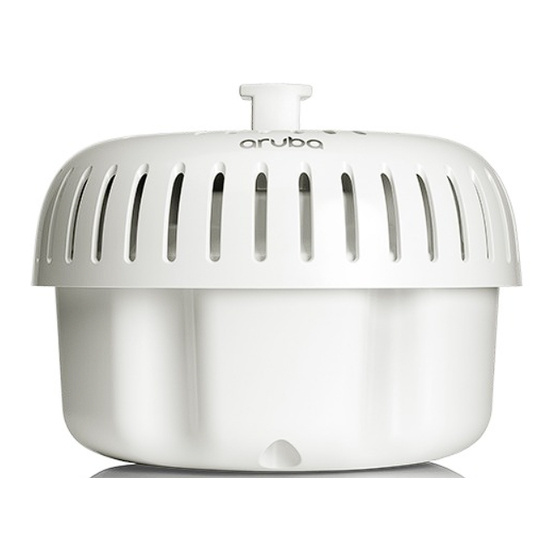

The HPE Aruba Networking 570 Series outdoor wireless access points (AP-574, AP-575 and AP-577) are high- performance, multi-radio wireless devices that can be deployed in either controller-based or controller-less network environment. The HPE Aruba Networking 570 Series access points support IEEE 802.11ax standard, delivering high performance with the MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g/n/ac wireless services. -
Page 4: Hardware Overview
The antenna connectors of AP-574 are covered by an aesthetic cover. The aesthetic cover can be removed when necessary. AP-574 Rear View (with Aesthetic Cover) Figure 2 System LED Grounding Point USB Console Port & Reset Button HPE Aruba Networking 570 Series Outdoor Access Points | Installation Guide... - Page 5 AP-575 Front View Figure 3 AP-575 Rear View Figure 4 Grounding Point System LED USB Console Port & Reset Button | Installation Guide HPE Aruba Networking 570 Series Outdoor Access Points...
- Page 6 AP-577 Front View Figure 5 AP-577 Rear View Figure 6 System LED Grounding Point USB Console Port & Reset Button HPE Aruba Networking 570 Series Outdoor Access Points | Installation Guide...
-
Page 7: External Antenna Connectors
Les installateurs doivent enregistrer le gain d'antenne pour cet appareil dans le logiciel de gestion du système. AP-574 Bottom View (without Aesthetic Cover) Figure 7 The 570 Series access point is equipped with one LED that indicates the system status of the access point. | Installation Guide HPE Aruba Networking 570 Series Outdoor Access Points... -
Page 8: Ethernet Ports
PoE budget and actual power. 1 x 802.3at PoE disabled Second (other) Ethernet port disabled. 1 x 802.3af PoE AP does not start up, red system LED. HPE Aruba Networking 570 Series Outdoor Access Points | Installation Guide... -
Page 9: Before You Begin
DHCP Server with vendor specific options HPE Aruba Networking, in compliance with governmental requirements, has designed the 570 Series access points so that only authorized network administrators can change configuration settings. For more information about AP configuration, refer to the AP Software Quick Start Guide. -
Page 10: Outdoor Planning And Deployment Considerations
RF coverage. This process is considered WLAN or RF planning and HPE Aruba Networking’s system engineers can assist in the outdoor planning process. The rules for the 5600-5650 MHz band vary by region. -
Page 11: Using Mount Kits
Failure to use the included Ethernet cable glands can lead to connectivity and POE issues. The cable is not included and must be purchased separately. Purchase a suitable UV-resistant, outdoor rated, CAT 5E or better RJ45 cable for use with the access point. | Installation Guide HPE Aruba Networking 570 Series Outdoor Access Points... -
Page 12: Verifying Post-Installation Connectivity
For instructions on choosing operating modes and initial software configuration, refer to the AP Software Quick Start Guide. HPE Aruba Networking access points are classified as radio transmission devices, and are subject to government regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration and operation of this equipment is in compliance with their country’s regulations. -
Page 13: Regulatory Model Number
The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. | Installation Guide HPE Aruba Networking 570 Series Outdoor Access Points... -
Page 14: Industry Canada
Les types d'antennes non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil. https://www.arubanetworks.com/assets/og/OG_AP-570Series.pdf HPE Aruba Networking 570 Series Outdoor Access Points | Installation Guide... -
Page 15: European Union Regulatory Conformance
(link provided below) with the maximum permissible gain indicated. Antenna types not included in this list, having a greater gain than the maximum gain indicated for the type, are strictly prohibited for use with this device. Compliance is only assured if the HPE Aruba Networking approved accessories as listed in the ordering guide are used. -
Page 16: Нормативные Требования Евразийского Экономического Союза
(2) este equipo o dispositivo debeaceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Нормативные требования Евразийского Экономического Союза HPE Russia: ООО "Хьюлетт Паккард Энтерпрайз" Российская Федерация, 125171, г. Москва, Ленинградское шоссе, 16А, стр.3, Телефон: +7 499 403 4248 Факс: +7 499 403 4677 'HPE Kazakhstan': TOO «Хьюлетт-Паккард... - Page 17 AP-575 OMAN - TRA D192690 R/9789/20 AP-577 OMAN - TRA D192690 R/9788/20 Philippines AP-574 Type-Approval No. ESD-2022590C AP-575 Type-Approval No. ESD-2022591C AP-577 Type-Approval No. ESD-2022592C Singapore DB100427 | Installation Guide HPE Aruba Networking 570 Series Outdoor Access Points...
- Page 18 End-of-Life Information https://www.arubanetworks.com/support-services/end-of-life/ Security Incident Response Team (SIRT) https://www.arubanetworks.com/support-service/security-bulletins/ Email: aruba-sirt@hpe.com Warranty This hardware product is protected by an HPE Aruba Networking warranty. For more details, visit www.hpe.com/us/en/ support.html HPE Aruba Networking 570 Series Outdoor Access Points | Installation Guide...
