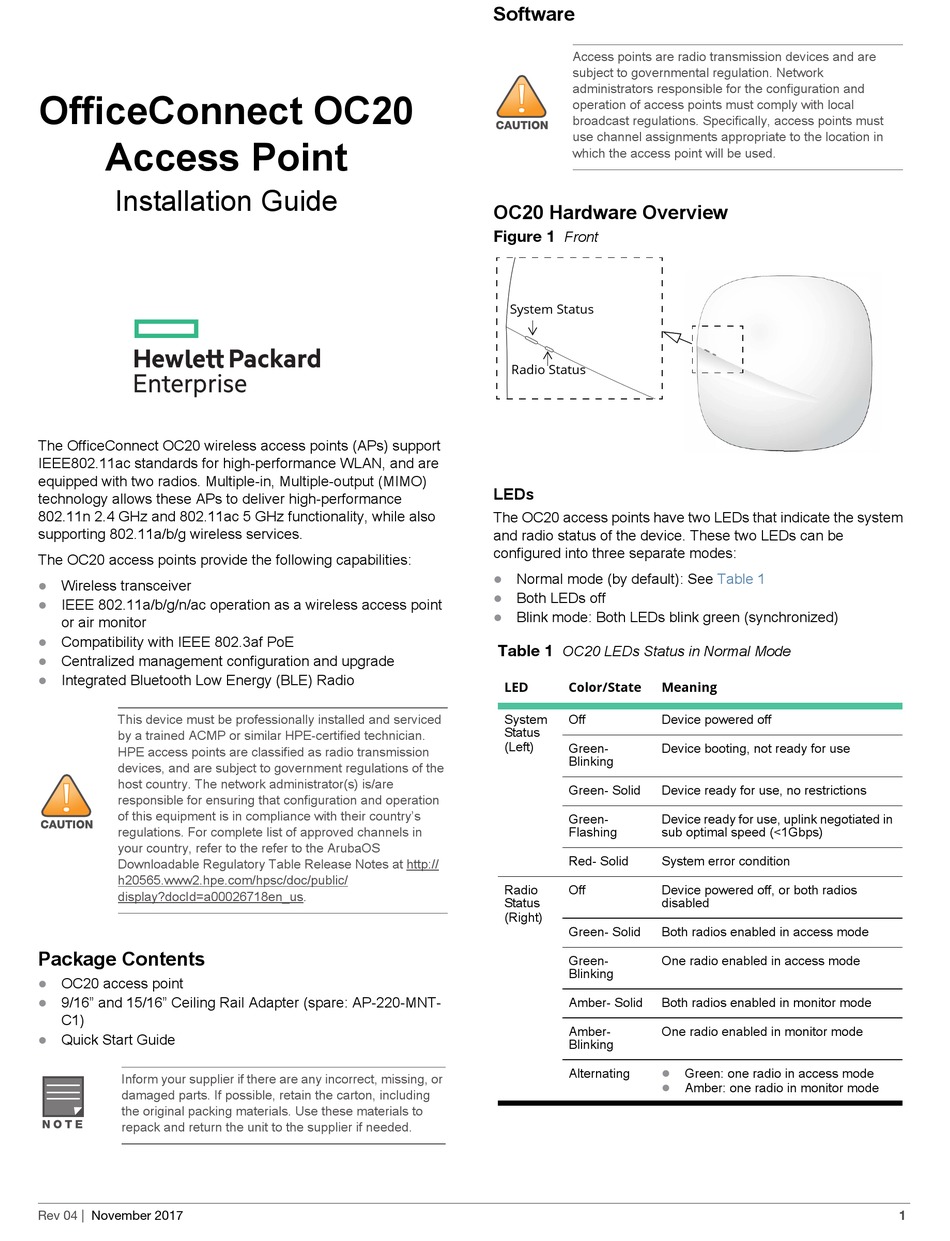

HPE OfficeConnect OC20 Installation Manual

OfficeConnect OC20

Access Point

Installation Guide

The OfficeConnect OC20 wireless access points (APs) support
IEEE802.11ac standards for high-performance WLAN, and are
equipped with two radios. Multiple-in, Multiple-output (MIMO)
technology allows these APs to deliver high-performance
802.11n 2.4 GHz and 802.11ac 5 GHz functionality, while also
supporting 802.11a/b/g wireless services.
The OC20 access points provide the following capabilities:
Wireless transceiver

IEEE 802.11a/b/g/n/ac operation as a wireless access point

or air monitor
Compatibility with IEEE 802.3af PoE

Centralized management configuration and upgrade

Integrated Bluetooth Low Energy (BLE) Radio

This device must be professionally installed and serviced
by a trained ACMP or similar HPE-certified technician.
HPE access points are classified as radio transmission
devices, and are subject to government regulations of the
!
host country. The network administrator(s) is/are
responsible for ensuring that configuration and operation
of this equipment is in compliance with their country's
regulations. For complete list of approved channels in
your country, refer to the refer to the ArubaOS
Downloadable Regulatory Table Release Notes at http://
h20565.www2.hpe.com/hpsc/doc/public/
display?docId=a00026718en_us.

Package Contents

OC20 access point

9/16" and 15/16" Ceiling Rail Adapter (spare: AP-220-MNT-

C1)
Quick Start Guide

Inform your supplier if there are any incorrect, missing, or
damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to
repack and return the unit to the supplier if needed.
Rev 04 | November 2017
Software
Access points are radio transmission devices and are
subject to governmental regulation. Network
!
administrators responsible for the configuration and
operation of access points must comply with local
broadcast regulations. Specifically, access points must
use channel assignments appropriate to the location in
which the access point will be used.

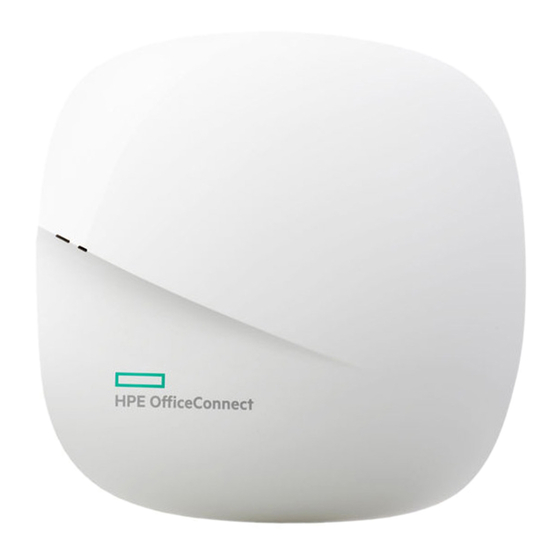

OC20 Hardware Overview
Front
Figure 1
System Status
Radio Status
LEDs
The OC20 access points have two LEDs that indicate the system
and radio status of the device. These two LEDs can be
configured into three separate modes:
Normal mode (by default): See

Both LEDs off

Blink mode: Both LEDs blink green (synchronized)

OC20 LEDs Status in Normal Mode
Table 1
LED Color/State Meaning
System Off Device powered off
Status
(Left)
Green- Device booting, not ready for use
Blinking
Green- Solid Device ready for use, no restrictions
Green- Device ready for use, uplink negotiated in
Flashing sub optimal speed (<1Gbps)
Red- Solid System error condition
Radio Off Device powered off, or both radios
Status disabled
(Right)
Green- Solid Both radios enabled in access mode
Green- One radio enabled in access mode
Blinking
Amber- Solid Both radios enabled in monitor mode
Amber- One radio enabled in monitor mode
Blinking
Alternating


Table 1
Green: one radio in access mode
Amber: one radio in monitor mode
1
