Summary of Contents for HPE Aruba Networking 555
- Page 1 HPE Aruba Networking 555 Access Point Installation Guide Published: May 2024 Edition 07...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Hardware Overview

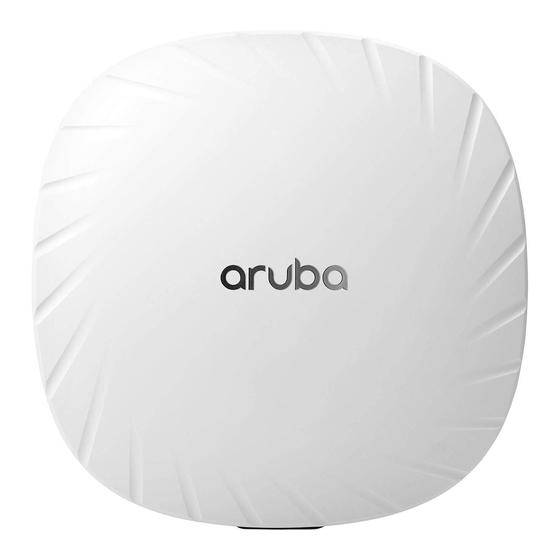

The HPE Aruba Networking 555 Access Point (AP-555) delivers high-performance concurrent 2.4 GHz 802.11ax Wi-Fi (Wi-Fi 6) functionality with 4x4 MIMO radio and 5 GHz 802.11ax Wi-Fi (Wi-Fi 6) functionality with 8x8 MIMO radio, while also supporting legacy 802.11 a/b/g/n/ac wireless services. - Page 4 Blinking: one second on/one second off. Alternating: one second each color, 2 second cycle. LED Display Settings The LEDs have three operating modes that can be selected in the system management software: HPE Aruba Networking 555 Access Point | Installation Guide...
-
Page 5: Bluetooth Low Energy Radios
4: GND 5: GND Ethernet Ports The HPE Aruba Networking 555 access point is equipped with two active Ethernet ports (Eth0 and Eth1), shown Figure 3. Both ports are 100/1000/2500/5000 Base-T, auto-sensing MDI/MDX, which supports uplink connectivity when linked by an Ethernet cable. Refer to Figure 5 for a detailed port pin-out. -
Page 6: Kensington Lock Slot
When Eth0 is prioritized, the access point simultaneously draws a minimal current from the Eth1 source. In the event that the prioritized port fails, the access point switches to the HPE Aruba Networking 555 Access Point | Installation Guide... -
Page 7: Before You Begin
Refer to the sections below before beginning the installation process. Pre-Installation Checklist Before installing your HPE Aruba Networking 555 access point, be sure that you have the following (not included with the AP): A mount kit compatible with the AP and mount surface ... -
Page 8: Access Point Installation
à proximité d'autres antennes ou émetteurs-récepteurs. Access Point Installation The HPE Aruba Networking 555 access points are designed for ceiling or wall-mounted deployments. All HPE Aruba Networking access points should be professionally installed by a professional installer. The installer is responsible for ensuring that grounding is available and meets applicable national and electrical codes. -
Page 9: Verifying Post-Installation Connectivity
If a power adapter other than the HPE Aruba Networking-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 48V DC, minimum 0.75A, marked “LPS” and “Class 2,” and suitable for plugging into a standard power receptacle in the US and Canada. -
Page 10: Regulatory Information
FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). The network administrator(s) is/are responsible for ensuring that this device operates in accordance with local/ regional laws of the host domain. HPE Aruba Networking 555 Access Point | Installation Guide... -
Page 11: Industry Canada
20, 40, 80, 160MHz OFDM, OFDMA Wi-Fi 5250-5350 23 dBm 20, 40, 80, 160MHz OFDM, OFDMA 5470-5725 30 dBm 20, 40, 80, 160MHz OFDM, OFDMA 5725-5850 14 dBm 20. 40, 80MHz OFDM, OFDMA | Installation Guide HPE Aruba Networking 555 Access Point... -
Page 12: Нормативные Требования Евразийского Экономического Союза
'HPE Belarus': ИООО «Хьюлетт-Паккард Бел», Республика Беларусь, 220030, г. Минск, ул. Интернациональная, 36-1, Телефон/факс: +375 17 392 28 20 'HPE Kazakhstan': TOO «Хьюлетт-Паккард (К)», Республика Казахстан, 050040, г. Алматы, Бостандыкский район, проспект Аль-Фараби, 77/7, Телефон/факс: + 7 727 355 35 50 Kazakhstan ЖШС... - Page 13 ЖШС «Хьюлетт-Паккард (К)», Қазақстан Республикасы, 050040, Алматы к., Бостандык ауданы, Әл-Фараби даңғ ылы, 77/7, Телефон/факс: +7 (727) 355 35 50 Oman Philippines Singapore Taiwan 第十二條 取得審驗證明之低功率射頻器材，非經許可，公司，商號或使用者均不得擅自變更頻率、加大功 率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。 | Installation Guide HPE Aruba Networking 555 Access Point...
- Page 14 5. This device has no IEC/EN60601-1-2 essential performance. 6. Compliance is based on the use of HPE Aruba Networking approved accessories. Refer to the buyer’s guide. 7. No modifications are allowed without HPE Aruba Networking approval. This product has not been qualified as a Medical Device under EU Directive 92/42/EEC. When deployed in medical environments it must be inaccessible to patients.
- Page 15 Conducted disturbances induced by RF fields: 0.15MHz-80MHz, 3Vrms, 6Vrms in ISM bands Voltage Dips: 0%, 0.5 cycles, 0%, 1 cycle, 70% 25/30 cycles Voltage Interruptions: 0% 250/300 cycles | Installation Guide HPE Aruba Networking 555 Access Point...
-
Page 16: Contacting Support
Airheads Social Forums and Knowledge Base https://community.arubanetworks.com North America Telephone 1-800-943-4526 1-408-754-1200 International Telephone https://www.arubanetworks.com/support-services/contact-support Software Licensing Site https://lms.arubanetworks.com End-of-Life Information https://www.arubanetworks.com/support-services/end-of-life/ Security Incident Response Team (SIRT) https://www.arubanetworks.com/support-service/security-bulletins/ Email: aruba-sirt@hpe.com HPE Aruba Networking 555 Access Point | Installation Guide...
