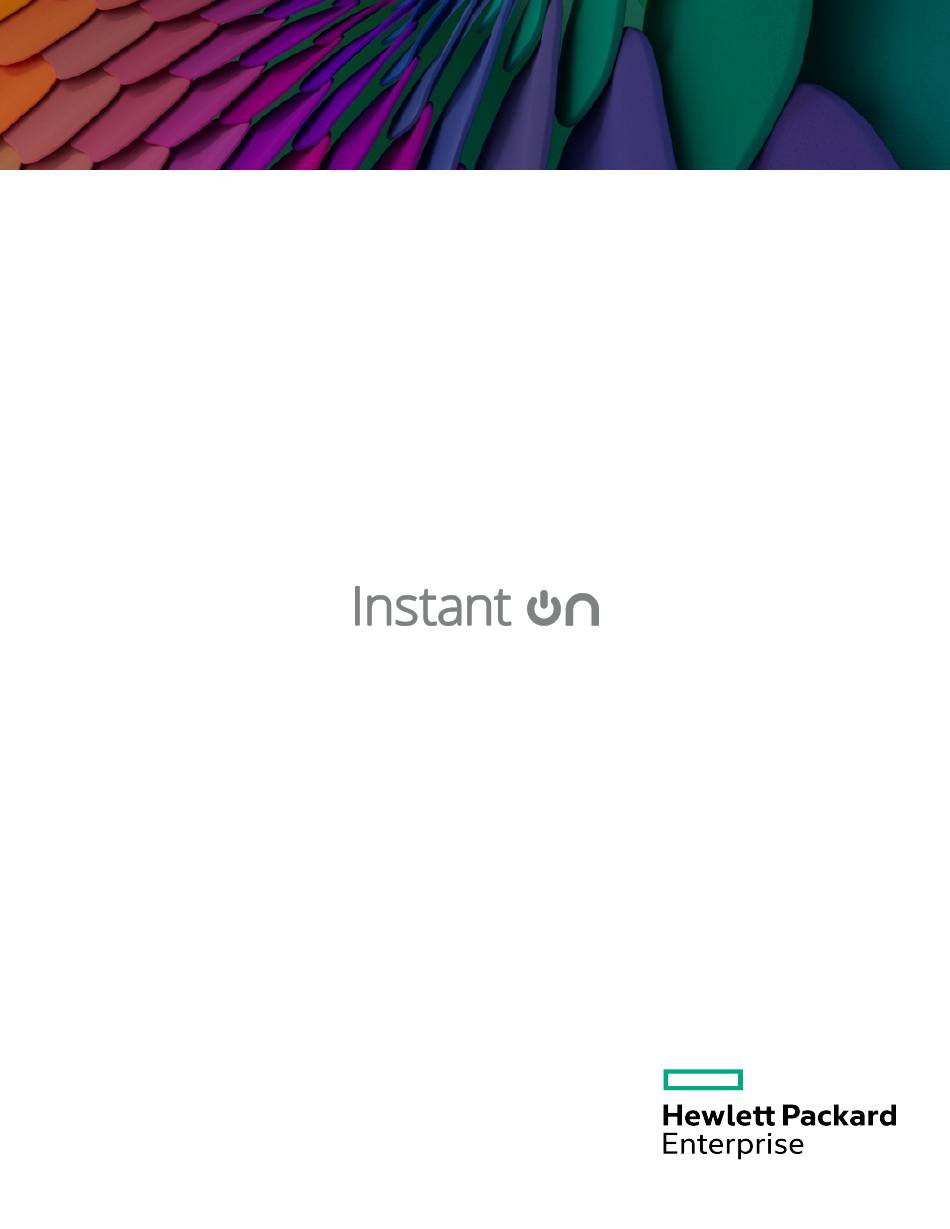

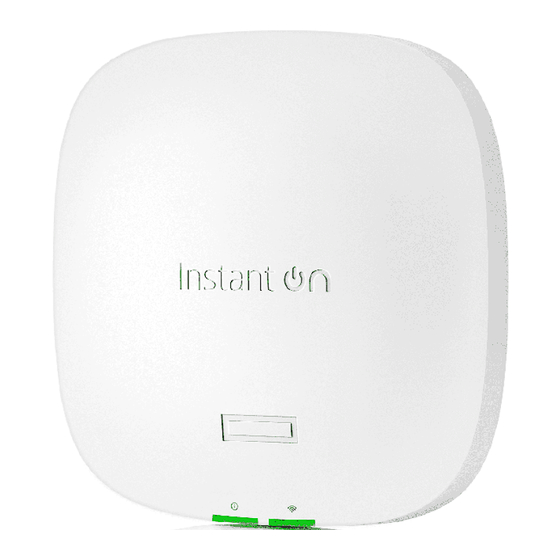

- Page 1 HPE Networking Instant On Access Point AP21 Installation Guide...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Table Of Contents
Verifying Post-Installation Connectivity Safety and Regulatory Compliance Regulatory Model Name Brazil Canada European Union and United Kingdom Japan Medical Taiwan Ukraine United States Proper Disposal of Hewlett Packard Enterprise Equipment HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 4: About This Guide
This document describes the hardware features of the HPE Networking Instant On Access Point AP21. It provides a detailed overview of the physical and performance characteristics of the HPE Networking Instant On Access Point AP21 and explains how to install the HPE Networking Instant On Access Point AP21. -
Page 5: Hardware Overview
Wall/Ceiling mount bracket Cat 5e Ethernet cable, 1.5 m If you have ordered HPE Networking Instant On Access Point AP21 bundle, the package would also include a power supply unit to power the AP through an electrical power outlet. HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 6: Hardware Overview
The AP has no power. Green- blinking The AP is booting, not ready. Green- solid The AP is ready, fully functional, no network restrictions. Green/Amber - alternating The AP is ready for configurations. HPE Networking Instant On Access Point AP21 |... -
Page 7: Radio Status Led
No lights Wi-Fi is not ready, wireless clients cannot connect. Green - solid Wi-Fi is ready, wireless clients can connect. Figure 2 Rear View Ethernet Port (E0) DC Power Port HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 8: Ethernet Port
A 12V/18W power adapter can be used to power the HPE Networking Instant On Access Point AP21. The power adapter is included in the box if you buy the HPE Networking Instant On Access Point AP21 with power adapter bundle. To order the power adapter separately, use the part number R9M78A for AP21 US and EU SKUs, and the part number R9M79A for AP21 RW SKUs. -
Page 9: Installation
Before installing the access point, ensure that you have the following: A mount kit compatible with the AP and mount surface One Cat5E or better UTP cable with network access Optional items: HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 10: Identifying Specific Installation Locations
A compatible power adapter with power cord A compatible PoE midspan injector with power cord Refer to the HPE Networking Instant On Access Point AP21 data sheet for compatible items, quantities needed, etc. Identifying Specific Installation Locations The HPE Networking Instant On Access Point AP21 is designed in compliance with governmental requirements, so that only authorized network administrators can change configuration settings. -
Page 11: Software
Access Point Installation The HPE Networking Instant On Access Point AP21 ships with a mount bracket to install the access point to a 9/16” or 15/16” ceiling tile rail, or on a solid surface, such as a wall or a hard ceiling. - Page 12 2. Drill holes at the two marked positions and install the wall anchors as per the installation instructions provided with the wall anchors. 3. Align the screw holes on the mount bracket with the corresponding wall anchors. HPE Networking Instant On Access Point AP21 |...
-
Page 13: Verifying Post-Installation Connectivity
Figure 7 Attaching AP to Mount Bracket Verifying Post-Installation Connectivity The integrated LED on the access point can be used to verify that the access point is receiving power and initializing successfully . HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 14: Safety And Regulatory Compliance
Chapter 4 Safety and Regulatory Compliance Safety and Regulatory Compliance This chapter provides an overview of the HPE Networking Instant On Access Point AP21 safety and regulatory compliance information. Regulatory Model Name For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number (RMN). -
Page 15: Eac
Bulgaria (BG), Croatia (HR), Cyprus (CY), Czech Republic (CZ), Denmark (DK), Estonia (EE), Finland (FI), France (FR), Germany (DE), Greece (GR), Hungary (HU), Iceland (IS), Ireland (IE), Italy (IT), Latvia (LV), Liechtenstein (LI), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Norway (NO), Poland HPE Networking Instant On Access Point AP21 |... -
Page 16: Japan
3. Wipe with a dry cloth, no additional maintenance required. 4. No serviceable parts, the unit must be sent back to the manufacturer for repair. 5. No modifications are allowed without approval from Hewlett Packard Enterprise. HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 17: Taiwan
This device is intended for indoor use in professional healthcare facilities. This device has no IEC/EN60601-1-2 essential performance. Compliance is based on the use of Hewlett Packard Enterprise approved accessories. Refer to the HPE Networking Instant On Access Point AP21 data sheet. -
Page 18: United States
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la conformité est susceptible d'annuler son droit d'utilisation. HPE Networking Instant On Access Point AP21 | Installation Guide... -
Page 19: Proper Disposal Of Hewlett Packard Enterprise Equipment
“RoHS” label shown at the left indicating conformance to this Directive. India RoHS This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules, governed by the Ministry of Environment & Forests, Government of India. HPE Networking Instant On Access Point AP21 |... - Page 20 China RoHS Hewlett Packard Enterprise products also comply with China environmental declaration requirements and are labeled with the “EFUP 50” label shown at the left. HPE Networking Instant On Access Point AP21 | Installation Guide...
- Page 21 Taiwan RoHS Turkey RoHS material content declaration Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur HPE Networking Instant On Access Point AP21 |...
