- Page 1 HPE Aruba Networking 730 Series Campus Access Points Installation Guide...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Table Of Contents
Verifying Post-Installation Connectivity Specifications, Safety, and Compliance Electrical Environmental Regulatory Model Name Brazil Canada European Union and United Kingdom India Medical Mexico Taiwan Thailand Ukraine United States Proper Disposal of HPE Aruba Networking Equipment HPE Aruba Networking 730 Series Campus Access Points... -
Page 4: About This Guide
About This Guide About This Guide This document describes the hardware features of the HPE Aruba Networking 730 Series Campus Access Points. It provides a detailed overview of the physical and performance characteristics of each access point model and explains how to install the access point. -
Page 5: Hardware Overview

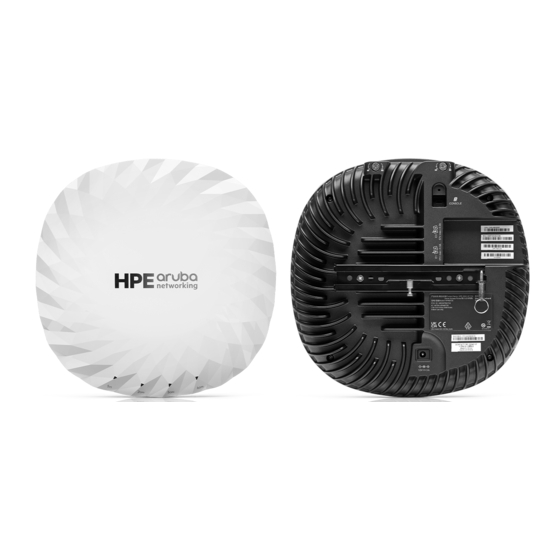

Chapter 2 Hardware Overview Hardware Overview The HPE Aruba Networking 730 Series Campus Access Points support the IEEE 802.11be (Wi-Fi 7) WLAN standard, while also supporting IEEE 802.11a/b/g/n/ac/ax wireless services. Package Contents Inform your supplier to check if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. - Page 6 / domaine. Les installateurs doivent enregistrer le gain d'antenne pour cet appareil dans le logiciel de gestion du système. Une liste d'antennes approuvées peut être trouvée à https://www.arubanetworks.com HPE Aruba Networking 730 Series Campus Access Points |...
- Page 7 Figure 2 AP-735 Front View System Status LED 2 GHz Radio Status LED 5 GHz Radio Status LED 6 GHz Radio Status LED HPE Aruba Networking 730 Series Campus Access Points...
- Page 8 E0 Ethernet Port E1 Ethernet Port Kensington Lock Slot DC Power Port The ports on the back of the AP-734 access point are the same as the ones of the AP-735 access point. HPE Aruba Networking 730 Series Campus Access Points |...
-
Page 9: Leds
Radio enabled in access (AP) mode On - Amber Radio enabled in monitor or spectrum analysis mode On - Blue Radio enabled in uplink or mesh mode Alternate Dual-5GHz mode; colors indicate mode per radio HPE Aruba Networking 730 Series Campus Access Points... -
Page 10: Usb-A Ports
When active, the two USB-A ports can supply up to 10W/2A of combined power to attached devices. To secure a USB device to the access point, tighten the USB security screw after the USB device is plugged into the USB interface. HPE Aruba Networking 730 Series Campus Access Points |... -
Page 11: Reset Button
5: GND Ethernet Ports The access point is equipped with two Ethernet ports (E0 and E1). Both ports are 100/1000/2500/5000 Base-T auto-sensing MDI/MDIX, supporting 802.3af, 802.3at or 802.3bt Power over Ethernet compliance HPE Aruba Networking 730 Series Campus Access Points... -
Page 12: Kensington Lock Slot
POE source. Kensington Lock Slot The HPE Aruba Networking 630 Series Campus Access Points is equipped with a Kensington lock slot for additional physical security. Power Both E0 and E1 ports support PoE-in (AP is a PoE-PD device), allowing the AP to draw power from a compliant PoE power source. -
Page 13: Installation
Identifying Specific Installation Locations Use the access point placement map generated by HPE Aruba Networking RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. -
Page 14: Access Point Installation
Bluetooth devices Access Point Installation The HPE Aruba Networking 730 Series Campus Access Points are designed for ceiling, or wall mounted deployments. HPE Aruba Networking provides several mount kits to use with the access points. These mount kits are available as accessories and must be ordered separately. Refer to the HPE Aruba Networking 730 Series Campus Access Points ordering guide at https://www.arubanetworks.com. -
Page 15: Software
For instructions on choosing operating modes and initial software configuration, refer to the Software Quick Start Guide HPE Aruba Networking access points are classified as radio transmission devices, and are subject to government regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration and operation of this equipment is in compliance with their country’s regulations. -
Page 16: Specifications, Safety, And Compliance
Chapter 4 Specifications, Safety, and Compliance Specifications, Safety, and Compliance This chapter provides an overview of the HPE Aruba Networking 730 Series Campus Access Points specifications, safety, and compliance information. Electrical Ethernet E0 and E1 ports: 100/1000/2500/5000 Base-T auto-sensing MDI/MDX wired RJ45 network connectivity port, supporting 802.3at or 802.3bt Power over Ethernet compliance . -
Page 17: Brazil
Pour un fonctionnement dans la bande de fréquences comprises entre 5,15 et 5,25 GHz, son utilisation est limitée à un environnement intérieur afin de réduire la possibilité d’interférences nuisibles avec les systèmes mobiles par satellite opérant sur le même canal. HPE Aruba Networking 730 Series Campus Access Points |... -
Page 18: Eac
Liechtenstein (LI), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovakia (SK), Slovenia (SL), Spain (ES), Sweden (SE), Switzerland (CH), Turkey (TR), United Kingdom (UK (NI)). Radio Frequency Range Max EIRP BLE/Zigbee 2402-2480 MHz 9 dBm HPE Aruba Networking 730 Series Campus Access Points... -
Page 19: India
4. No serviceable parts, the unit must be sent back to the manufacturer for repair. 5. No modifications are allowed without approval from HPE Aruba Networking. Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. -
Page 20: Mexico
This device is intended for indoor use in professional healthcare facilities. This device has no IEC/EN60601-1-2 essential performance. Compliance is based on the use of HPE Aruba Networking approved accessories. Refer to the ordering guide for this access point at https://www.arubanetworks.com... -
Page 21: Thailand
Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or TV technician for help. HPE Aruba Networking 730 Series Campus Access Points |... - Page 22 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la conformité est susceptible d'annuler son droit d'utilisation. HPE Aruba Networking 730 Series Campus Access Points...
-
Page 23: Proper Disposal Of Hpe Aruba Networking Equipment
Waste of Electrical and Electronic Equipment HPE Aruba Networking products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment... - Page 24 China RoHS HPE Aruba Networking products also comply with China environmental declaration requirements and are labeled with the “EFUP 50” label shown at the left. HPE Aruba Networking 730 Series Campus Access Points...
- Page 25 Taiwan RoHS Turkey RoHS material content declaration Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur HPE Aruba Networking 730 Series Campus Access Points |...
