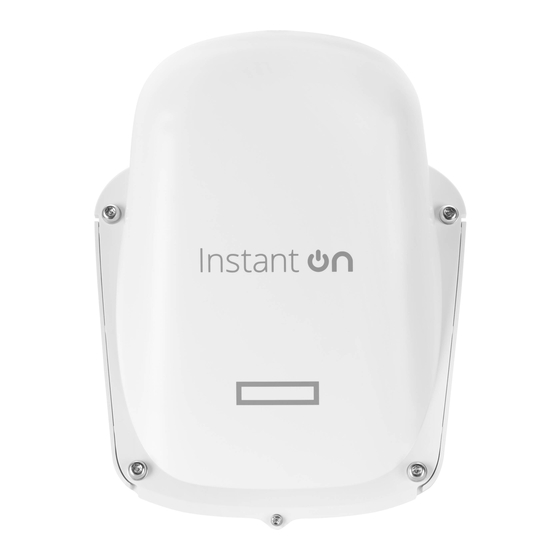

- Page 1 HPE Networking Instant On Access Point AP27 Installation Guide...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Table Of Contents
Verifying Post-Installation Connectivity Safety and Regulatory Compliance Regulatory Model Name Brazil Canada European Union and United Kingdom India Japan Medical Taiwan Ukraine United States Proper Disposal of Hewlett Packard Enterprise Equipment HPE Networking Instant On Access Point AP27 | Installation Guide... -
Page 4: About This Guide
This document describes the hardware features of the HPE Networking Instant On Access Point AP27. It provides a detailed overview of the physical and performance characteristics of the HPE Networking Instant On Access Point AP27 and explains how to install the HPE Networking Instant On Access Point AP27. -
Page 5: Hardware Overview
M4 x 6 screw M6 x 20 screw If you have ordered HPE Networking Instant On Access Point AP27 bundle, the package would also include a PoE injector and an AC power cord to power the AP. HPE Networking Instant On Access Point AP27 | Installation Guide... -
Page 6: Hardware Overview
Hardware Overview Figure 1 Front View Figure 2 Ports and LED Ethernet Port (PoE-IN) Grounding Point Reset Button and LED HPE Networking Instant On Access Point AP27 |... -
Page 7: System Status Led
3. Release the reset button on the access point after 15 seconds. Ethernet Port The HPE Networking Instant On Access Point AP27 is equipped with one 100/1000 Base-T, auto-sensing MDI/MDX Ethernet port (E0). The E0 port supports IEEE 802.3at Power over Ethernet (PoE), allowing the AP to draw power from compliant PoE power sources. -
Page 8: Installation
One or two Cat5E or better UTP cables with network access Some optional items: A compatible PoE injector with power cord Refer to the HPE Networking Instant On Access Point AP27 data sheet for compatible items, quantities needed, etc. HPE Networking Instant On Access Point AP27 | Installation Guide... -
Page 9: Identifying Specific Installation Locations
Identifying Specific Installation Locations The HPE Networking Instant On Access Point AP27 is designed in compliance with governmental requirements, so that only authorized network administrators can change configuration settings. For more information about AP configuration, refer to the Instant On User Guide. -
Page 10: Access Point Installation
Access Point Installation Mounting the AP to a Solid Surface The HPE Networking Instant On Access Point AP27 ships with a mount bracket to mount the AP to a solid surface, such as a wall. To install the HPE Networking Instant On Access Point AP27 to a wall, follow these steps: 1. - Page 11 Figure 4 Sliding AP to Mount Bracket Figure 5 Securing AP to Mount Bracket HPE Networking Instant On Access Point AP27 |...
-
Page 12: Grounding The Ap
Mounting the AP to a Pole The HPE Networking Instant On Access Point AP27 can also be mounted to a pole by using the AP-270- MNT-H1 mount kit (Part number: JW054A). The AP-270-MNT-H1 is not included in the package and must be purchased seperately. - Page 13 9. Connect the other end of the Ethernet cable to a PoE port of a compliant PoE Injector or PoE switch. Figure 7 Ethernet Cable and M20 Cable Gland Assembly Ethernet Cable O-ring Gland Body HPE Networking Instant On Access Point AP27 |...
-
Page 14: Verifying Post-Installation Connectivity
4-6 mm diameter, and the other is applicable for cables with 6-10 mm diameter. Verifying Post-Installation Connectivity The integrated LED on the access point can be used to verify that the access point is receiving power and initializing successfully . HPE Networking Instant On Access Point AP27 | Installation Guide... -
Page 15: Safety And Regulatory Compliance
Chapter 4 Safety and Regulatory Compliance Safety and Regulatory Compliance This chapter provides an overview of the HPE Networking Instant On Access Point AP27 safety and regulatory compliance information. Regulatory Model Name For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number (RMN). -
Page 16: Eac
EU & UK Declaration of Conformity Compliance is only assured if the Hewlett Packard Enterprise approved accessories as listed in the HPE Networking Instant On Access Point AP27 data sheet are used. -
Page 17: India
3. Wipe with a dry cloth, no additional maintenance required. 4. No serviceable parts, the unit must be sent back to the manufacturer for repair. 5. No modifications are allowed without approval from Hewlett Packard Enterprise. HPE Networking Instant On Access Point AP27 | Installation Guide... -
Page 18: Taiwan
30 cm (12 inches) to any part of the access point. Otherwise, degradation of the performance of this equipment could result. This device has no IEC/EN60601-1-2 essential performance. Compliance is based on the use of Hewlett Packard Enterprise approved accessories. Refer to the HPE Networking Instant On Access Point AP27 data sheet. Taiwan 取... -
Page 19: United States
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la conformité est susceptible d'annuler son droit d'utilisation. HPE Networking Instant On Access Point AP27 | Installation Guide... -
Page 20: Proper Disposal Of Hewlett Packard Enterprise Equipment
Directive. India RoHS This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules, governed by the Ministry of Environment & Forests, Government of India. HPE Networking Instant On Access Point AP27 |... - Page 21 China RoHS Hewlett Packard Enterprise products also comply with China environmental declaration requirements and are labeled with the “EFUP 50” label shown at the left. HPE Networking Instant On Access Point AP27 | Installation Guide...
- Page 22 Taiwan RoHS Turkey RoHS material content declaration Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur HPE Networking Instant On Access Point AP27 |...
