- Page 1 HPE Aruba Networking AP-505H Access Points Installation Guide Published: May 2020 Edition 03...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Hardware Overview

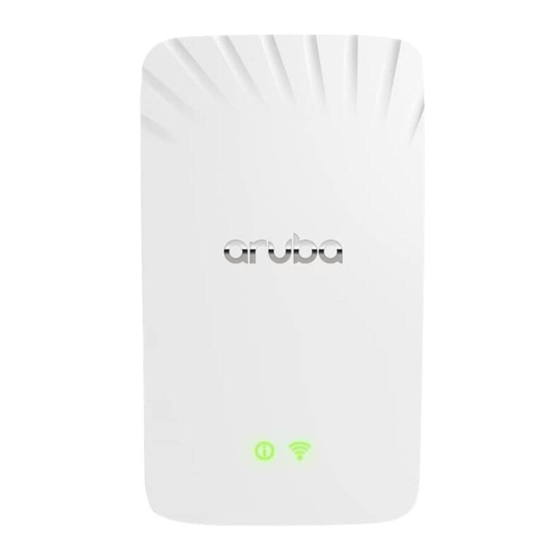

The HPE Aruba Networking AP-505H Access Points support the full 802.11ax (Wi-FI 6) featureset with dual 2x2 MIMO radios, deliver locationing functions, and can serve as a flexible IOT gateway, delivered through the built-in BLE and 802.15.4 radio. A variety of mounting scenarios are supported by a range of mount kits (sold separately). Make sure to purchase the correct mount kit for the intended deployment of the AP. - Page 4 AP-505H (side and rear view) Figure 2 Security Screw Console Reset 48V DC Power Input AP-505H (bottom view) Figure 3 HPE Aruba Networking AP-505H Access Points | Installation Guide...
- Page 5 Force the LEDs into off mode and back to software defined mode by pressing the reset button for a short duration. Warning: pressing the reset button for longer than 10 seconds may cause the AP to reset and return to factory default state. | Installation Guide HPE Aruba Networking AP-505H Access Points...
- Page 6 The top of this access point is equipped with a USB-A host port that is compatible with cellular modems and other selected peripherals. When active, this port can supply up to 5W/1A to a connected device. HPE Aruba Networking AP-505H Access Points | Installation Guide...
-
Page 7: Reset Button
Bluetooth Low Energy Radios AP-505H Access Points are equipped with an integrated BLE and Zigbee radio that provide the following capabilities: location and asset-tracking applications wireless console access IoT gateway applications | Installation Guide HPE Aruba Networking AP-505H Access Points... -
Page 8: Before You Begin
DHCP Server with vendor-specific options HPE Aruba Networking, in compliance with governmental requirements, has designed the AP-505H Access Points so that only authorized network administrators can change the settings. For more information about access point configuration, refer to the Access Point Software Quick Start Guide. -
Page 9: Access Point Installation
Otherwise, degradation of the performance of this equipment could result. Access Point Installation All HPE Aruba Networking access points should be professionally installed by a professional installer. The installer is responsible for ensuring that grounding is available and meets applicable national and electrical codes. -
Page 10: Verifying Post-Installation Connectivity
Maximum power consumption (excluding USB): Refer to datasheet If a power adapter other than the HPE Aruba Networking-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 48V DC, minimum 1.045A, marked “LPS” and “Class 2”, rated for 40°C... - Page 11 Once the AP has established a connection with its management platform, the USB host interface state is updated to match what’s configured there. This state is maintained if the AP is power- cycled or rebooted. | Installation Guide HPE Aruba Networking AP-505H Access Points...
-
Page 12: Regulatory Information
Find and select the document that corresponds to your device’s model number as it is indicated on the product label. Compliance is only assured if the HPE Aruba Networking approved accessories as listed in the ordering guide are used. - Page 13 La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debeaceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. | Installation Guide HPE Aruba Networking AP-505H Access Points...
-
Page 14: Нормативные Требования Евразийского Экономического Союза
'HPE Belarus': ИООО «Хьюлетт-Паккард Бел», Республика Беларусь, 220030, г. Минск, ул. Интернациональная, 36-1, Телефон/факс: +375 17 392 28 20 'HPE Kazakhstan': TOO «Хьюлетт-Паккард (К)», Республика Казахстан, 050040, г. Алматы, Бостандыкский район, проспект Аль-Фараби, 77/7, Телефон/факс: + 7 727 355 35 50 Kazakhstan ЖШС... - Page 15 FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). The network administrator(s) is/are responsible for ensuring that this device operates in accordance with local/ regional laws of the host domain. | Installation Guide HPE Aruba Networking AP-505H Access Points...
- Page 16 This product has not been qualified as a Medical Device under EU Directive 92/42/EEC. When deployed in medical environments it must be inaccessible to patients. If integrated as a component into a Medical Device, the integrator is responsible for ensuring that the requirements of 92/42/EEC are met. HPE Aruba Networking AP-505H Access Points | Installation Guide...
-
Page 17: Contacting Support
Airheads Social Forums and Knowledge Base https://community.arubanetworks.com North America Telephone 1-800-943-4526 1-408-754-1200 International Telephone https://www.arubanetworks.com/support-services/contact-support Software Licensing Site https://lms.arubanetworks.com End-of-Life Information https://www.arubanetworks.com/support-services/end-of-life/ Security Incident Response Team (SIRT) https://www.arubanetworks.com/support-service/security-bulletins/ Email: aruba-sirt@hpe.com | Installation Guide HPE Aruba Networking AP-505H Access Points...
