INSTALLATION

Preparation

WARNING/AVERTISSEMENT
Mount directly to a structural framing member to
reduce risk of fire, electric shock or injury.
Monter directement sur un membre de charpente
pour réduire les risques d'incendie,
d'électrocution ou de blessure.

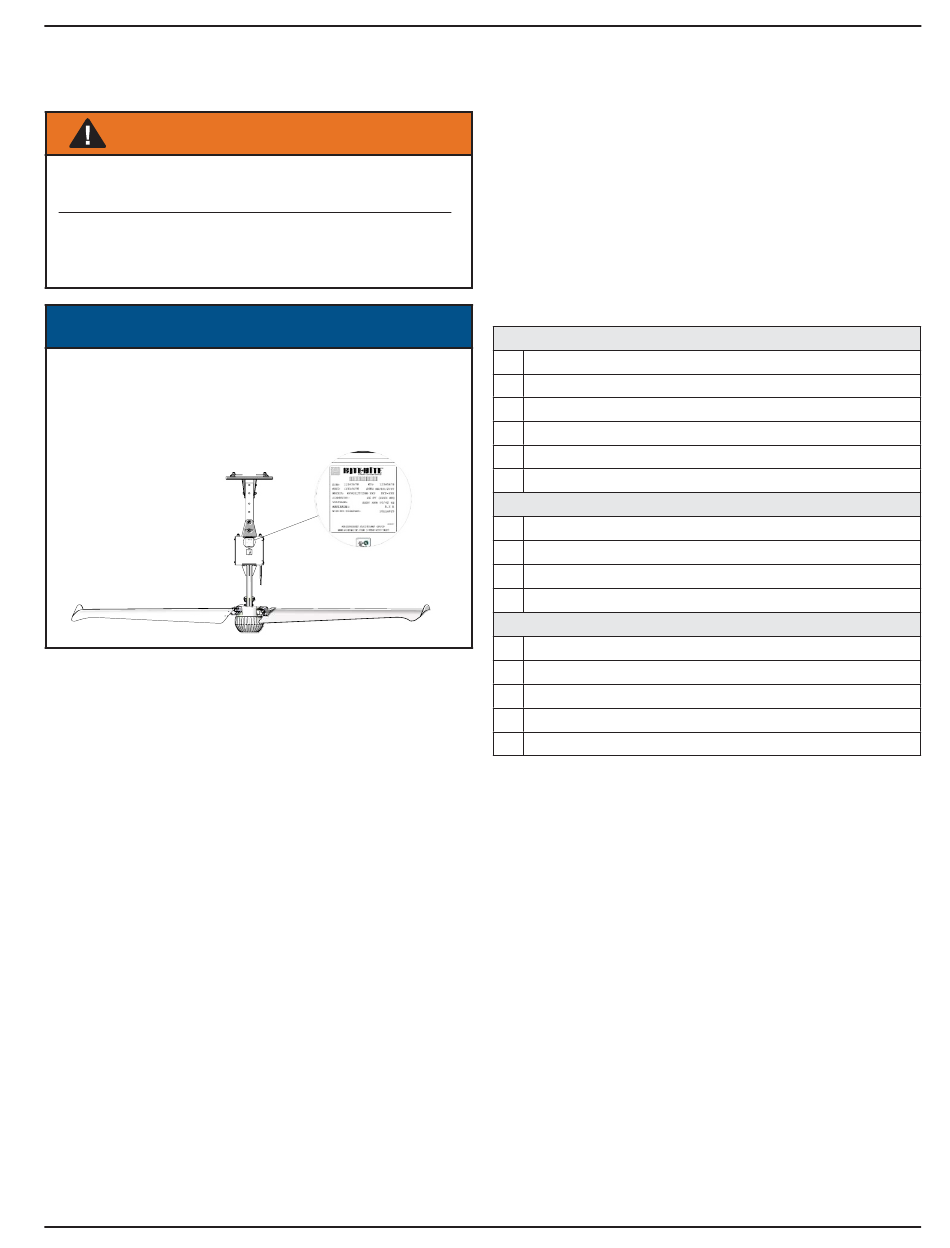

NOTICE
When more than one fan diameter or voltage is
ordered, the specification label must be used to
match the correct fan blades and power cords to their
respective installed locations.
Publication: AMEN00190 2021-09-24
Installation/Service/Owner's Manual
Fans ship with the motor, extension tube, and enclosure
fully assembled and wired with a plug. Each assembly
also includes an internally installed safety cable.
The enclosure includes brackets required to mount to
a beam (steel or laminated), an open‑web steel joist,
or a purlin.
Remove the zip tie holding the antenna to the extension
tube.
Required Tools
Revolution 25, 75, 150
2 3/4 in wrenches (1 can be socket/driver)
1 Vice grip
1 Phillips screwdriver
1 Bubble level
1 1/4 in cable cutter
≥1
Cleaning towel(s)
Revolution 25 Only
1 Torque wrench, minimum 74 ft‑lb (102 Nm)
1 1‑1/4 in socket
1 1‑1/16 in wrench
1 3/16 in Allen wrench
Revolution 75,150 Only
1 Torque wrench, minimum 200 ft‑lb (270 Nm) 1/2 in drive
1 1/2 in wrench or socket/driver
1 1/2 in to 3/4 in socket adapter
1 1/2 in socket extender
1 9/16 in wrench or socket/driver
