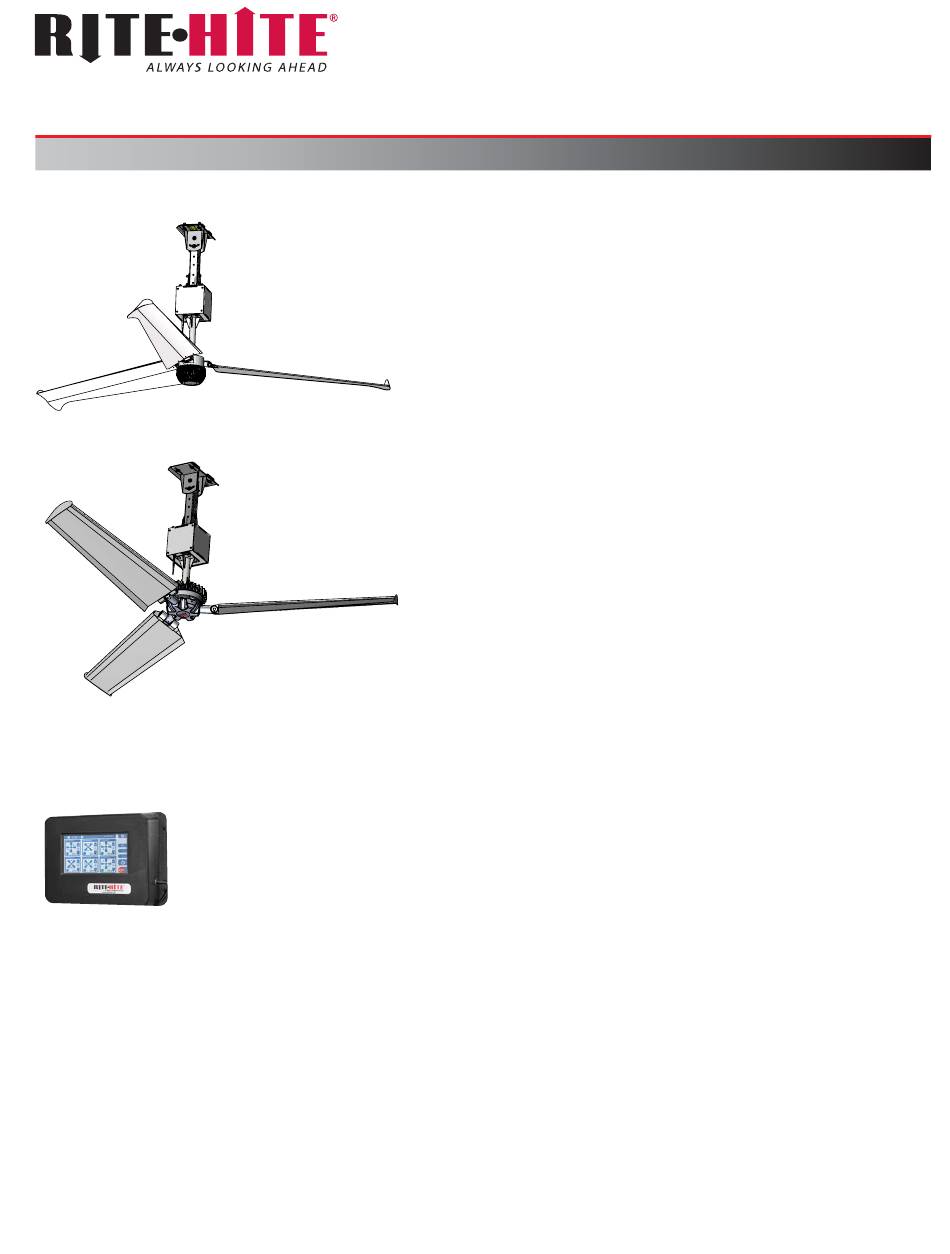

Model: Revolution 25
Model: Revolution 75, 150
Fan-Commander 2.0
Required to operate the fan(s) (ordered separately).
Use Fan-Commander 2.0 manual with this manual
for complete installation and operation instructions.
®
Revolution
25 Series HVLS Fan
®
Revolution
75 Series HVLS Fan
Revolution
®
150 Series HVLS Fan
Installation/Service/Owner's Manual
NOTICE TO USER . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTALLATION
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Fan Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mounting - Truss Kit. . . . . . . . . . . . . . . . . . . . . . . 13
Mounting - Laminated Beam Kit . . . . . . . . . . . . . 14
Mounting - Purlin Kit . . . . . . . . . . . . . . . . . . . . . . 15
Stabilization Cables . . . . . . . . . . . . . . . . . . . . . . . 16
Fan Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Blade Attachment . . . . . . . . . . . . . . . . . . . . . . . . . 17
Motor Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . 19
Planned Maintenance. . . . . . . . . . . . . . . . . . . . . . 19
Mounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Extension Tubes and Enclosure Mounts . . . . . . . 20
Revolution 75, 150 Blades . . . . . . . . . . . . . . . . . . 21
Revolution 25 Blade Bolt . . . . . . . . . . . . . . . . . . . 21
Revolution 25 Blade Set . . . . . . . . . . . . . . . . . . . . 21
Electrical Components . . . . . . . . . . . . . . . . . . . . . 22
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . 12
Publication: AMEN00190 2021-09-24
Advertisement
Table of Contents
Related Manuals for RITE-HITE Revolution 25 Series
Summary of Contents for RITE-HITE Revolution 25 Series
-
Page 1: Table Of Contents
® Revolution 25 Series HVLS Fan ® Revolution 75 Series HVLS Fan Revolution ® 150 Series HVLS Fan Installation/Service/Owner's Manual Model: Revolution 25 Model: Revolution 75, 150 NOTICE TO USER ......2 SAFETY. -
Page 2: Notice To User
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual NOTICE TO USER READ AND SAVE THESE INSTRUCTIONS. FCC Compliance NOTE: This equipment has been tested and found to comply with the Thank you for purchasing a Rite‑Hite product. limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Safety
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual SAFETY Safety Identifications Lockout Procedure Barricade work area and post safety warnings. DANGER Power supply and control must: • Be disconnected or locked in OFF position Indicates a hazardous situation which, if not using a lockout device approved by local avoided, will result in death or serious injury. - Page 4 Rite‑Hite Representative to verify hardware specifications as required. WARNING/AVERTISSEMENT Only install Rite-Hite fans when the mounting framework of the building is constructed soundly (without defects) and capable of supporting the loads of the fan and it's installation requirements.
-
Page 5: Preparation
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Preparation Fans ship with the motor, extension tube, and enclosure WARNING/AVERTISSEMENT fully assembled and wired with a plug. Each assembly also includes an internally installed safety cable. Mount directly to a structural framing member to The enclosure includes brackets required to mount to reduce risk of fire, electric shock or injury. - Page 6 Each fan assembly includes a NEMA plug on a 5 ft cord. Before installing, ensure that a mating receptacle is available in the ceiling near the installation location. The type of receptacle required is dependent on the ordered voltage: Revolution 25 Series 100-120V 1Φ 200-240V 1Φ 200-240V 3Φ 277V 1Φ...
-
Page 7: Specifications
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Specifications Diameter (Φ) 6 ft, 8 ft, 10 ft, 12 ft, 16 ft, 20 ft, and 24 ft (1830 mm, 2440 mm, 3660 mm, 4880 mm, 6100 mm and 7320 mm) Height 3 ft to 8 ft in 6 in increments... -
Page 8: Fan Clearance
10 ft (3050 mm) MIN DRAWN DATE 05/17/2021 ENGINEERED SOLUTIONS GROUP, INC. THIS DOCUMENT IS THE PROPERTY INITIAL ECN 1330 Roof surface to mounting surface: OF RITE-HITE® AFTERMARKET CORP. TITLE SUBJECT MATTER HEREIN IS CONFIDENTIAL. FLOOR • SURVEY,DIMS Used to determine air intake. - Page 9 Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Fan Clearance Continued Alternate Fan Drop Height (Revolution 25, 75, 150) NOTICE 0 in (0 mm) Re‑calculate and verify fan clearances and air intake if alternate drop heights are used. 0 in (0 mm) 0 in (0 mm) 18 in (460 mm)
- Page 10 ® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual INSTALLATION Fan Clearance Continued Revolution 25 Shown: Beam Mount Roof Surface ROOF SURFACE BOTTOM OF BEAM MOUNTING SURFACE Bottom of Beam Mounting Surface MOUNTING SURFACE <1012A004.pdf:3> = Fan Drop Height (Minimum Height Required for Air Intake) FAN DIAMETER ROOF SURFACE TO 6 ft (1830 mm)
- Page 11 Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Fan Clearance Continued Revolution 75, 150 Shown: Truss Mount Roof Surface ROOF SURFACE Mounting Surface MOUNTING SURFACE <1011A102_2021_8_16.pdf:4> = Fan Drop Height (Minimum Height Required for Air Intake) FAN DIAMETER ROOF SURFACE TO MOUNTING...
-
Page 12: Mounting - I-Beam (Typical)
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual INSTALLATION Mounting – I-Beam (TYPICAL) NOTE: The beam bracket and slotted attachment plates accommodate both angled and skewed beams. 1. Mount fan directly to building support I‑beam (A) (6 in to 13.5 in [150 mm to 343 mm] wide) with supplied brackets and hardware. -
Page 13: Mounting - Truss Kit
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Mounting – Truss Kit WARNING/AVERTISSEMENT Always mount the fan to 2 joists. 1 joist will not provide the rigidity and support necessary for the fan during operation, and may cause the fan to fall and cause injury. -
Page 14: Mounting - Laminated Beam Kit
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual INSTALLATION Mounting – Laminated Beam Kit NOTE: The beam bracket and slotted attachment plates accommodate both angled and skewed beams. 1. Clamp the angle brackets (A) to the laminated or concrete beam (B). -
Page 15: Mounting - Purlin Kit
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Mounting – Purlin Kit Purlin Requirements: PURLIN HEIGHT • Length: < 30 ft (9144 mm) 8 in 9 in 10 in PURLIN (210 mm) (230 mm) (260 mm) SPAN •... -
Page 16: Stabilization Cables
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual INSTALLATION Crosswinds or impact could tilt the fan and cause the Stabilization Cables blades to impact a ceiling joist or other object. Stabilization cables anchor the fan. Use these cables to attach the fan WARNING/AVERTISSEMENT bracket to the ceiling in 4 locations. -
Page 17: Blade Attachment
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual INSTALLATION Blade Attachment 1. Remove bolts and shipping bracket (B) from fan hub (A). 2. Use a step ladder or lift to attach each fan blade to the fan hub. 3. -
Page 18: Motor Cover
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual INSTALLATION Motor Cover 1. Align the motor cover ribs (B) with motor fins (A): • Locate the 1/4 in (6.35 mm) recessed circle inside the cover. • Position the circle toward the socket head cap screw securing the cable bracket to the motor. -
Page 19: Maintenance
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual MAINTENANCE WARNING/AVERTISSEMENT Follow lockout procedures before cleaning or re-torquing the fan. Suivre les procédures de verrouillage avant le nettoyage ou le resserrage du ventilateur. Planned Maintenance INSPECT AND PERFORM THE FOLLOWING: Fan Mounting Check all fasteners and re‑torque as required. -
Page 20: Parts
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual PARTS Mounts Extension Tubes and Enclosure Mounts <1011A126.PDF:2> PART # DESCRIPTION EXTN,ASSY,FAN,48",GY 44750046 EXTN,ASSY,FAN,30",GY 44750039 EXTN,ASSY,FAN,18",GY 44750036 ITEM PART NUMBER DESCRIPTION MOUNT,KIT,ADJ TUBE,DD 44750046 EXTN,ASSY,FAN,48",GY 55290038 44750039 EXTN,ASSY,FAN,30",GY <1011A126.PDF>... -
Page 21: Revolution 75, 150 Blades
Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual PARTS Revolution 75, 150 Blades Revolution 25 Blade Set <1011A026 HIGH QUALITY PRINT.PDF:2> DESCRIPTION PART # BLADE,SNGL,REV,8'DIA 12510049 BLADE,SNGL,REV,12'DIA 12510050 BLADE,SNGL,REV,16'DIA 12510051 BLADE,SNGL,REV,20'DIA 12510052 BLADE,SNGL,REV,24'DIA 12510053 Revolution 25 Blade Bolt <1011A026 - PARTS LIST.PDF:2>... -
Page 22: Electrical Components
® ® Revolution 25, 75, 150 Series HVLS Fans Rite‑Hite Installation/Service/Owner’s Manual PARTS Electrical Components <1011A026 HIGH QUALITY PRINT.PDF:3> ITEM PART NUMBER DESCRIPTION 7640 VFD,REV,DD 51000067 FUSE,15A,600V,CC,ATDR 45500026 FILTER,EMC,YSKW,240V,3PH,14A 11280004 ANTENNA,900MHZ,RPSMA 16650014 PCB,RADIO,900MHZ,VFD ITEM PART NUMBER DRAWING DESCRIPTION 53760134 1011M015 KIT,COMM,900 MHZ RADIO,DD <1011A026 HIGH QUALITY PRINT.PDF:4>... - Page 23 Rite‑Hite ® Revolution ® 25, 75, 150 Series HVLS Fans Installation/Service/Owner’s Manual Publication: AMEN00190 2021-09-24...
-
Page 24: Warranty
GLOBAL SALES AND SERVICE Representatives in All Major Cities RITE-HITE WORLD HEADQUARTERS RITE-HITE CHINA RITE-HITE LATIN AMERICA RITE-HITE GMBH 8900 N.
