CoolMan

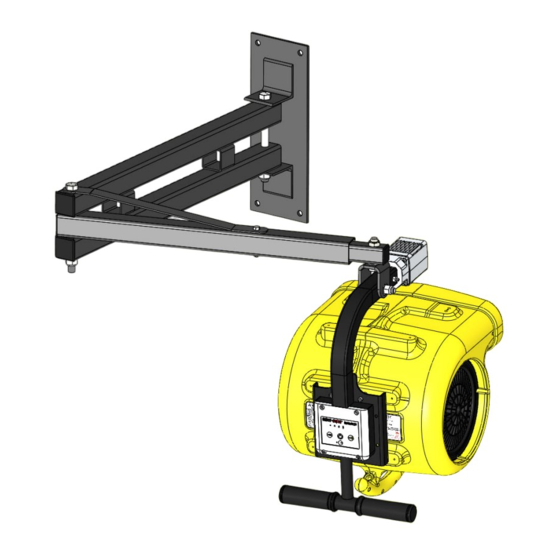

2800 Trailer Fan
®
with Rite-Lite™ LED Dock Light
Installation/Service/Owner's Manual
SAFETY 2
6
7
Fan Controls 10
Positioning 13
MAINTENANCE 13
®
WARRANTY 16
Model: COOLMAN2800
Manual Part #: 54450060
Language: English (Hazards: English, French)
Publication: AMEN00262 2019-12-09
Advertisement
Table of Contents
Related Manuals for RITE-HITE CoolMan 2800
Summary of Contents for RITE-HITE CoolMan 2800
-

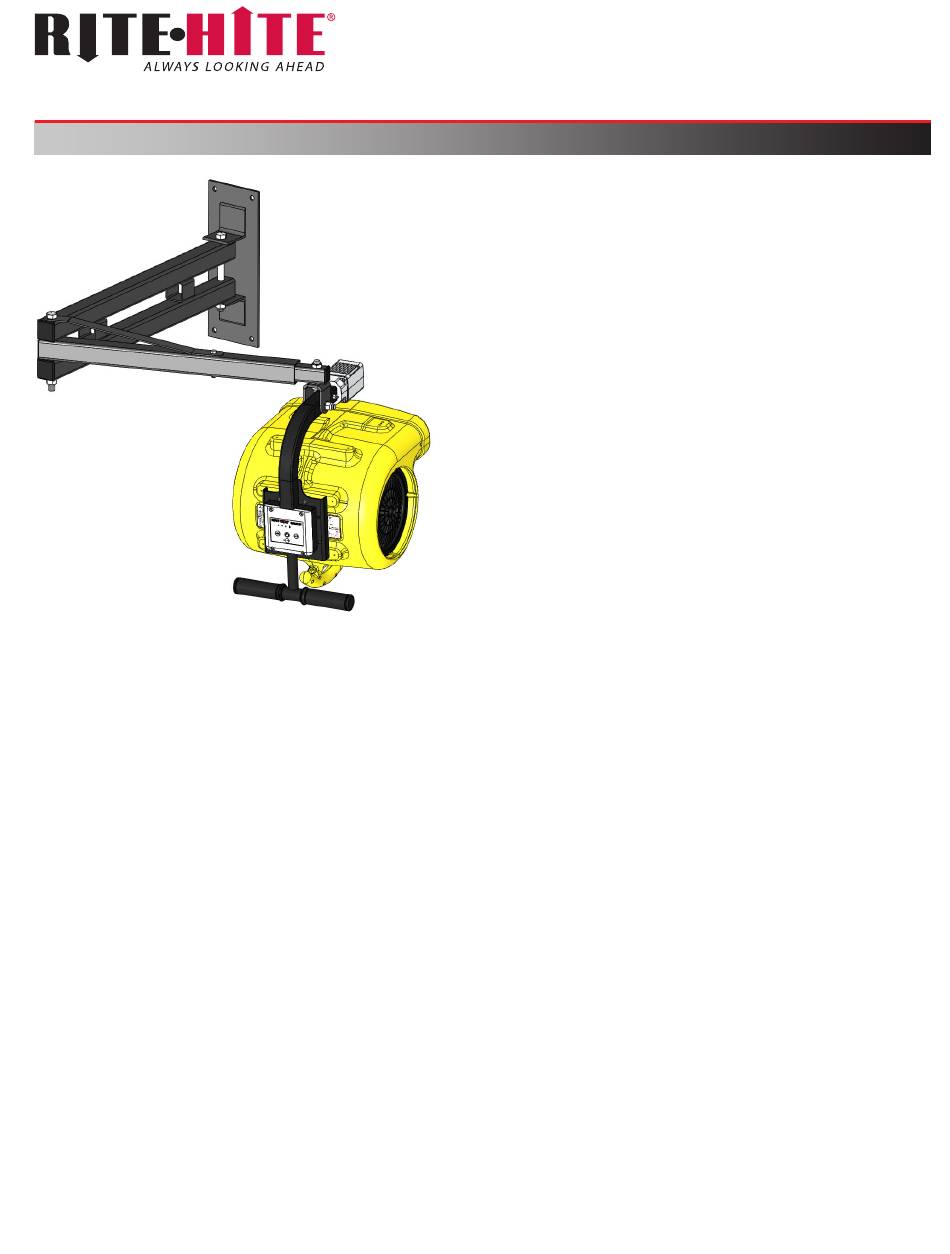

Page 1: Table Of Contents
CoolMan 2800 Trailer Fan ® with Rite-Lite™ LED Dock Light Installation/Service/Owner's Manual NOTICE TO USER 2 SAFETY 2 Lockout Procedure 3 INSTALLATION... -
Page 2: Notice To User
A Planned Maintenance Program (PMP), customized to your specific operation is available and recommended. Indique une situation dangereuse qui, si elle n’est For a PMP, contact your local Rite-Hite representative pas évitée, peut entraîner la mort ou des blessures or Rite-Hite technical support at (US) 1-414-973-3625 graves. -
Page 3: Lockout Procedure
Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual SAFETY Lockout Procedure General Barricade work area and post safety warnings WARNING / AVERTISSEMENT Power supply and control must: • Be disconnected or locked in OFF position Risk of electrical shock. -
Page 4: Installation
® Installation/Service/Owner's Manual INSTALLATION Fan Specifications The CoolMan 2800 is designed to be mounted in various ways depending on the requirements of the installation Size 16in x 16in x 16in [410mm x 410mm x 410 mm] site. Some field engineering is allowed. Contact... -
Page 5: Telescoping Support Arm
Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual INSTALLATION Telescoping Support Arm 33.00in [840mm] Front View Extended Extended 27.00in [685mm] 29.00in [740mm] Standard Standard 6.00in [155mm] 16.00in 14.50in [410mm] [370mm] 22.25in 0.50in [565mm] [13mm] 4.50in [115mm] 6.00in [155mm] 16.00in... -
Page 6: Wall Bracket Position (Standard)
CoolMan 2800 Trailer Fan with Rite-Lite™ LED Dock Light Rite-Hite ® ® Installation/Service/Owner's Manual INSTALLATION Wall Bracket Position (STANDARD) 70.00in [1780mm] 70.00in [1780mm] Extended 64.00in [1630mm] 64.00in [1625mm] Standard 12.00in 12.00in [305mm] [305mm] 6.00in [155mm] 16.00in [410mm] 16.00in [410mm] 22.25in [565mm] 0.50in... -
Page 7: Wall Bracket Adjustment (Optional)
Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual INSTALLATION Wall Bracket Adjustment (OPTIONAL) 70.00in [1780mm] Extended 70.00in [1780mm] 64.00in [1625mm] Standard 64.00in [1630mm] 10.75in 10.75in [2735mm] [2735mm] 8.50in [220mm] 16.00in [410mm] 22.00in [560mm] 22.30in 19.00in [570mm] [485mm]... -
Page 8: Wall Bracket / Support Arm
CoolMan 2800 Trailer Fan with Rite-Lite™ LED Dock Light Rite-Hite ® ® Installation/Service/Owner's Manual INSTALLATION Wall Bracket / Support Arm Fan Mounting Bracket Figure 4 Use the wall bracket (A) to locate and mark the 4 anchor hole locations 1 Drill 1 of the upper wall bracket holes. -
Page 9: Secure Power Cords
Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual INSTALLATION Secure Power Cords 8in - 10in [205mm ‑ 255mm] Figure 6 1 Secure the power cord(s) above and below the curved area of the fan mounting bracket with 2 tie bands (G). -
Page 10: Operation
Loose parts can impede fan Figure 7 blades and cause motor to overheat and fail. The CoolMan 2800 fan is controlled with switches on the front of the fan All switches need to be in the off position before... -
Page 11: Light Controls
Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual OPERATION Light Controls The LED light allows the user to control the intensity and function of the light from the user interface LEDs (A) provide a visual indication of light intensity Intensity adjusts from 50% to 100% See “Light Settings”... - Page 12 CoolMan 2800 Trailer Fan with Rite-Lite™ LED Dock Light Rite-Hite ® ® Installation/Service/Owner's Manual OPERATION Light Controls Sensitivity Adjustment Continued Microwave Sensor The LED light uses a microwave sensor inside the light head to detect approaching fork truck and pedestrian traffic.
-
Page 13: Positioning
Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual OPERATION MAINTENANCE Positioning WARNING / AVERTISSEMENT Disconnect power before cleaning or servicing. Débranchez l'alimentation avant de procéder au nettoyage ou à l'entretien. Motor bearing has pre‑lubricated ball bearings. Re‑lubrication is not required. -
Page 14: Parts
CoolMan 2800 Trailer Fan with Rite-Lite™ LED Dock Light Rite-Hite ® ® Installation/Service/Owner's Manual PARTS CoolMan 2800 Trailer Fan LED Light and Controls ® with Rite-Lite™ LED Dock Light <1108A010pdf:2> DESCRIPTION PART # LIGHT,LED,HEAD ASSY,CLM 54270069 LIGHT,LED,HEAD ASSY,CLM,MST 54270070 CTRLR,ASSY, DOCKLIGHT,PCB&SWITCH 17500024 <1108A010pdf>... - Page 15 Rite‑Hite CoolMan 2800 Trailer Fan with Rite‑Lite™ LED Dock Light ® ® Installation/Service/Owner's Manual Publication: AMEN00262 2019-12-09...
-
Page 16: Warranty
Product within the Product's rated capacities and/or specified design parameters, or failure to properly maintain the Product, (iv) use of the Product in a manner that is inconsistent with Rite-Hite's guidelines or local building codes, (v) movement, settling, distortion, or collapse of the ground, or of improvements to which the Products are affixed, (vi) fire, flood, earthquake, elements of nature or acts of God, riots, civil disorder, war, or any other cause beyond the reasonable control of Rite‑Hite, (vii) improper handling, storage, abuse, or neglect of the Product by Owner or by any...
