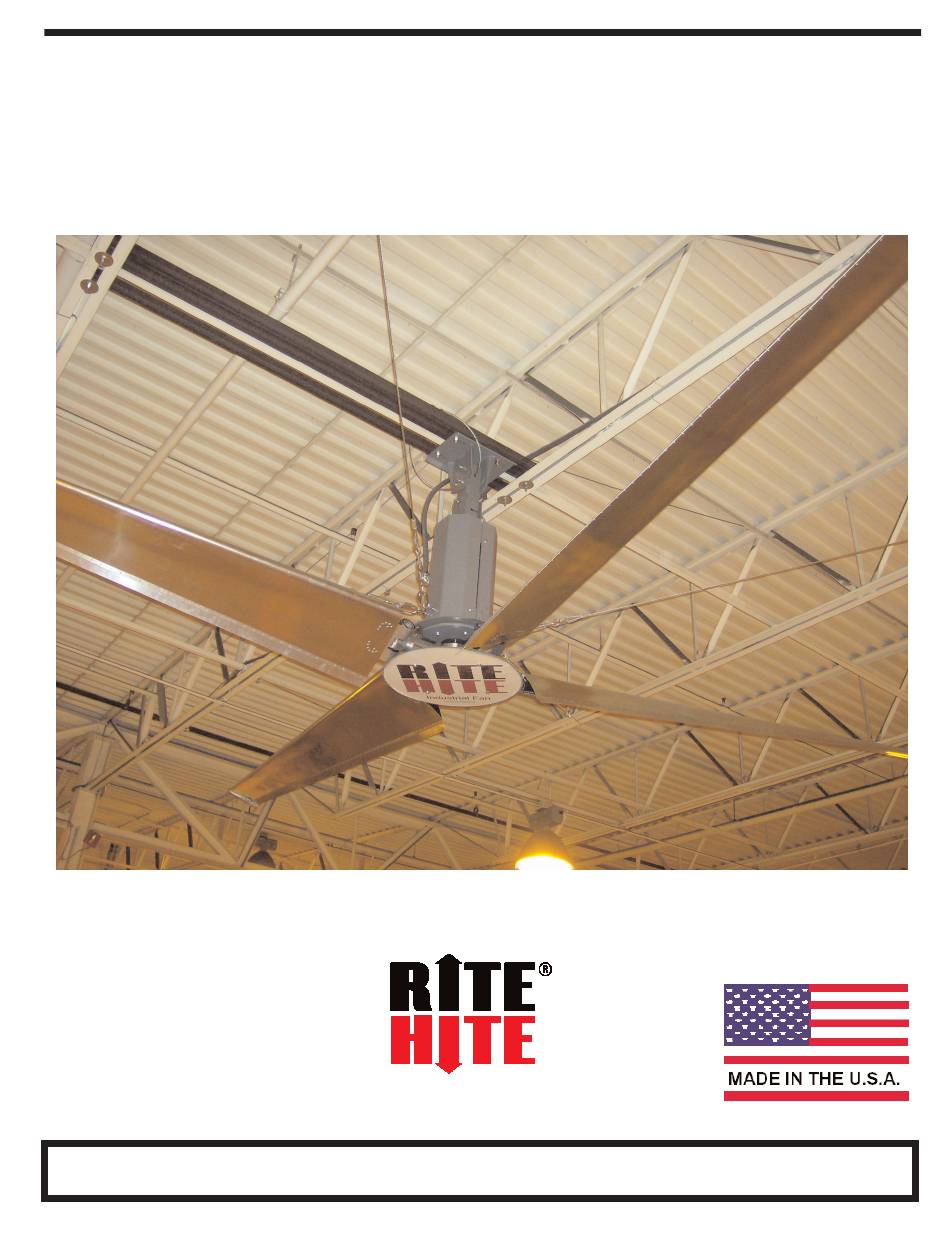

- Page 1 REVOLUTION HV/LS FAN INSTALLATION AND OWNER’S MANUAL AFTERMARKET CORPORATION THIS MANUAL COVERS ALL UNITS SHIPPED 1/07 TO DATE PRINTED IN U.S.A. PUBLICATION NO. RCF RITE-HITE PRINT SHOP JANUARY 2007...
-
Page 2: Table Of Contents
Thank you for purchasing the Revolution Fan from RITE-HITE AFTERMARKET CORPORATION. IMPORTANT Read and understand contents of this manual prior to installation or operation of this equipment. For best results, have this product serviced by your authorized RITE-HITE ® Aftermarket representative. -
Page 3: Safety Warnings
RITE-HITE ® Corporation does not recommend any particular lockout device, but recommends the utilization of a device that meets OSHA standards (refer to OSHA regulation 1910.147). RITE-HITE ® Corporation also recommends the review and implementation of an entire safety program for the Control of Hazardous Energy (Lockout/Tagout). -
Page 4: Unpacking Of Parts
REVOLUTION UNPACKING OF THE COMPONENTS You should have received the following items: (2) boxes of fan blades, they are packed (2) per box for a total of (4) blades – approximately 50 lb. per box. (1) motor / hub assembly – approximately 160 lb. -
Page 5: Mounting Of Fan
FAN WEIGHT AND TORQUE OBSTRUCTIONS The weight of the fan that will be suspended The blades on the Rite-Hite Revolution Fan from the ceiling is approximately 300 lbs. and are angled upward to provide improved will generate torque of up to 300 ft-lb. -
Page 6: I Beam Mounting
REVOLUTION I-BEAM MOUNTING SUPPORT CHANNEL MOUNTING If the fan is being mounted to a building Never mount the fan to only one building support I-beam (6-14 inches wide) the fan can joist. One joist will not provide the rigidity and be mounted directly to the beam with the support necessary for the fan during operation. -
Page 7: Attachment Of Motor Bracket
REVOLUTION ATTACHMENT OF MOTOR BRACKET The motor bracket attaches to the extension rod with (2) ½” x 4.5” long – grade 8 bolts, washers and lock nuts. Position the motor bracket so that one angle is on each side of the extension tube. -
Page 8: Stabilization Cable
REVOLUTION I M P O R TA N T ! ! ! STABILIZATION CABLES Cables are included with the kit to attach the fan bracket back to the ceiling in (4) locations. These cables will help to stabilize the fan for any situations such as cross... -
Page 9: Field Wiring Diagram
REVOLUTION FIELD WIRING DIAGRAM Pub. No. RF - JANUARY 2007... -
Page 10: Control Box Wiring
REVOLUTION CONTROL BOX WIRING Pub. No. RF - JANUARY 2007... -
Page 11: Control Box Mounting
REVOLUTION CONTROL BOX MOUNTING Mount the control box securely to a wall or building column with appropriate anchors (not provided). The box should not be greater than 200 ft. from the fan it is controlling. The fan should be visible from where the control box is mounted. -
Page 12: Motor Wiring
REVOLUTION MOTOR WIRING The fan motor will receive three phase power from the fan control box even if single phase power is provided to the control box. Remove the cover from the motor junction box. Change the wire leads as necessary for high or low voltage. - Page 13 REVOLUTION MOTOR WIRING CONDUIT RESTRICTIONS LAMINATED BEAM BRACKETS AC supply lines for a controller MAY (OPTIONAL) share the same conduit with AC supply The laminated beam brackets are through lines for one or more additional bolted with one bracket on each side of the controllers.
-
Page 14: Annual Planned Maintenance
REVOLUTION ANNUAL PLANNED MAINTENANCE FAN BLADE CLEANING GEAR REDUCER: • Dirt and dust may be removed from the • Check for oil leaks. blades by using a cloth or soft non-metallic brush. MOTOR: • Stubborn stains may be removed with a •... -
Page 15: Trouble Shooting
F006 MOTOR STALLED Current trip was activated by something that physically stopped the fan movement. Check fan for damage. Restart if no damage is detected. Contact Rite-Hite if damage is found. F007 MOTOR OVERLOAD This signals the motor is drawing too much current. Under normal operation this will not occur. - Page 16 REVOLUTION TROUBLE SHOOTING CONTINUED FREQUENCY DRIVE FAULTS CONTINUED NAME ACTION F12 OVER CURRENT Check for excessive load. Check to insure motor wiring matches voltage provided. Check for any mechanical interference causing extra load. Check wire length from control box to motor. Is it greater than...
- Page 17 Check load requirements and A098 setting. Current trip was activated by something that physically stopped the fan movement. Check fan for damage. Restart if no damage is detected. Contact Rite-Hite if damage is found. F64 DRIVE OVERLOAD Reduce load F70 POWER UNIT Cycle power.
-
Page 18: Parts List - Ceiling Bracket
REVOLUTION PARTS CEILING MOUNT BRACKET ITEM PART# QTY DESCRIPTION 125353 Ceiling Mount Bracket Assembly (includes the following parts) 125354 Ceiling Mount Bracket 125355 Spacer 125356 Clamp Plate 125338 Bolt, .5"-13 x 2", Grade 8 125339 Nut, .5"-13, Nylock, Grade 8 125340 Bolt, .5"-13 x 4.5", Grade 8... -
Page 19: Parts List - Lower Bracket - Motor Bracket
REVOLUTION PARTS LOWER BRACKET HARDWARE ITEM PART# QTY DESCRIPTION 125335 Motor Bracket Assembly (Includes the following parts) 125336 Motor Bracket 125337 Top Angle 125338 Bolt, .5"-13 x 2", Grade 8 125339 Nut, .5"-13, Nylock, Grade 8 125340 Bolt, .5"-13 x 4.5", Grade 8 51709 Washer, .5", Flat... -
Page 20: Parts List - Fan Blades
REVOLUTION PARTS FAN BLADES PART# QTY DESCRIPTION 125042 Hub and (4) blade assembly, 12' (Includes the parts below) 125037 Hub, 2', 28 deg. Blade angle 125038 (2) Blade set, 12' 125043 Hub and (4) blade assembly, 16' (Includes the parts below) 125036 Hub, 2', 26 deg. -
Page 21: Stabilization Cables-Control Boxes-Label Plate-Extension Tube
REVOLUTION PARTS STABILIZATION CABLES PART# QTY DESCRIPTION 125371 Stabilization Cable Assembly - 18” - (Includes the following parts) 125372 Cable, 120", ZP 125373 Turnbuckle, .3125" x 3" 125374 Quick Connect, .3125" 125375 Stabilization Cable Assembly-19” to 84”-(Includes the following parts) 125376 Cable 240", ZP... - Page 22 REVOLUTION NOTES Pub. No. RF - JANUARY 2007...
- Page 23 REVOLUTION NOTES Pub. No. RF - JANUARY 2007...
-
Page 24: Warranty
This shall be the exclusive ® remedy for all claims whether based on contract negligence or strict liability. Neither RITE-HITE CORPORATION, ANY OTHER MANUFACTURER WHOSE PRODUCTS ARE THE SUBJECT OF THIS TRANSACTION, NOR ANY RITE-HITE AFTERMARKET...
