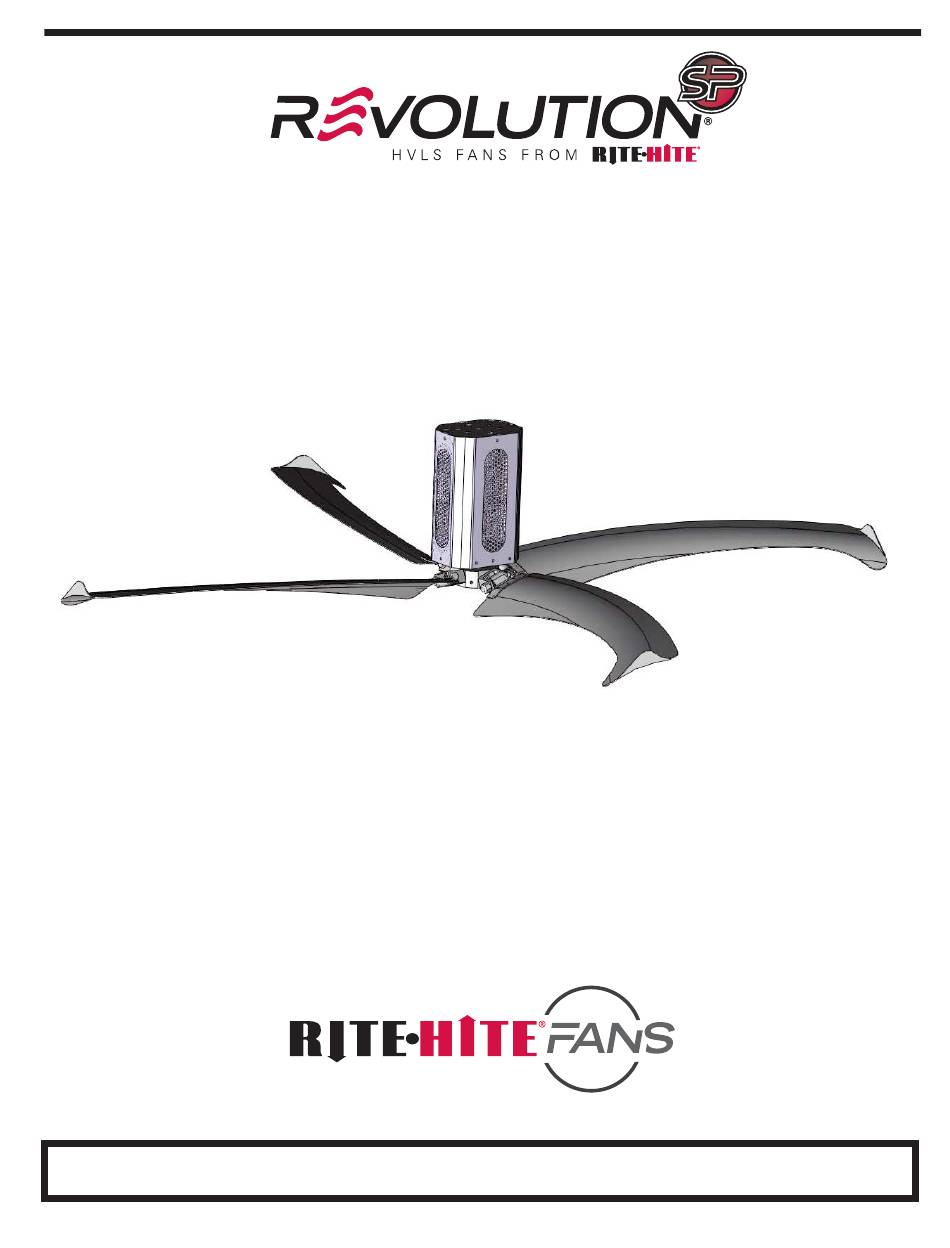

- Page 1 INSTALLATION AND OWNER’S MANUAL This Manual Covers All Fans Shipped 1/07 to Date PRINTED IN U.S.A. PUBLICATION NO. RFSP - REV. 5 RITE-HITE PRINT SHOP DECEMBER 2010...
-
Page 2: Table Of Contents
WARRANTY ............. . .32 PRODUCT INTRODUCTION ® Thank you for purchasing the Revolution SP Fan from RITE-HITE IMPORTANT Read and understand contents of this manual prior to installation or operation of this equipment. -
Page 3: Safety Warnings
® meets OSHA standards (refer to OSHA regulation 1910.147). RITE-HITE also recommends the review and implementation of an entire safety program for the Control of Hazardous Energy (Lockout/Tagout). These regulations are available through OSHA publication 3120. -
Page 4: Unpacking Of Parts
REVOLUTION SP FAN COMPONENTS AND TOOLS UNPACKING OF THE COMPONENTS You should have received the following items: (2) boxes of fan blades, they are packed (2) per box for a total of (4) blades – approximately 25 lb. (11.4 kg) per box. -
Page 5: Mounting Of Fan
REVOLUTION SP FAN MOUNTING OF THE FAN I M P O R TA N T ! ! ! I M P O R TA N T ! ! ! FAN DISTANCE FROM CEILING AND FAN WEIGHT AND TORQUE OBSTRUCTIONS The weight of the fan that will be suspended A combination of centrifugal force and air from the ceiling is approximately 150 lbs. -
Page 6: I Beam & Ceiling Truss Mounting
REVOLUTION SP FAN I-BEAM AND TRUSS MOUNTING I-BEAM MOUNTING CEILING TRUSS MOUNTING If the fan is being mounted to a building (STRUCTURAL ANGLES) support I-beam (6-13½ inches (152-343 mm) Never mount the fan to only one building wide) the fan can be mounted directly to the joist. - Page 7 I-BEAM AND TRUSS MOUNTING CONTINUED CEILING TRUSS MOUNTING (RITE-HITE FORMED ANGLES) Never mount the Revolution SP fan to only one building joist. One joist will not provide the rigidity and support necessary for the fan during operation. The truss kit supplied by Rite-Hite is designed to make the installation of the kit easier.
-
Page 8: Attachment Of Motor Bracket & Safety Cable
REVOLUTION SP FAN MOTOR BRACKET ATTACHMENT OF MOTOR BRACKET The motor bracket attaches to the extension tube with (2) ½" x 4½" long – grade 8 bolts, washers and lock nuts. Position the motor bracket so that one angle is on each side of the extension tube. -
Page 9: Stabilization Cable
REVOLUTION SP FAN INSTALLATION I M P O R TA N T ! ! ! STABILIZATION CABLES Stabilization cables are necessary only when extension tubes longer than 30" (762 mm) are used. Cables are included with the kit to attach the fan bracket back to the ceiling in (4) locations. -
Page 10: Blade Attachment
REVOLUTION SP FAN INSTALLATION I M P O R TA N T ! ! ! BLADE ATTACHMENT The fan blades are set in place on the fan hub. Raise the blade above the arm of the hub and allow the blade to slide into the slot provided on the hub. -
Page 11: Guarding The Fan
REVOLUTION SP FAN INSTALLATION REMOTE MOUNTED CONTROL I M P O R TA N T ! ! ! This is an 8"(203 mm)W x 10"(254 mm)H x 7" (178 mm)Deep remote-mounted control box GUARDING THE FAN with an on/off switch and a speed control dial. -
Page 12: Motor Wiring
REVOLUTION SP FAN MOTOR WIRING The fan motor will receive three phase power The conduit with the incoming power and the from the fan control box even if single phase conduit with the power going to the motor power is provided to the control box. Remove should be separated by a minumun of 6”(152... -
Page 13: Control Box Wiring
REVOLUTION SP FAN CONTROL BOX WIRING Pub. No. RFSP Rev. 5 - December 2010... -
Page 14: Stop Circuit For Multiple Fans (Schneider Electric)
REVOLUTION SP FAN STOP CURCUIT FOR MULTIPLE FANS (SCHNEIDER ELECTRIC) Pub. No. RFSP Rev. 5 - December 2010... - Page 15 REVOLUTION SP FAN REMOTE MOUNTED FAN FOR SCHNEIDER ELECTRIC Pub. No. RFSP Rev. 5 - December 2010...
-
Page 16: Control Box Mounting
REVOLUTION SP FAN CONTROL BOX MOUNTING Mount the control box securely to a wall or building column with appropriate anchors (not provided). The box should not be greater than 200 ft. (61m) from the fan it is controlling. The fan should be visible from where the control box is mounted. - Page 17 REVOLUTION SP FAN CONTROL BOX I M P O R TA N T ! ! ! C A U T I O N ! ! ! Ceiling mounted standard control boxes Shielded 6 wire 20 AWG cable recommended. should not be mounted inside the fan diameter.
-
Page 18: Laminated Bean Kit
REVOLUTION SP FAN LAMINATED BEAM KIT (OPTIONAL) LAMINATED BEAM KIT(OPTIONAL) The laminated beam brackets are through bolted with one bracket on each side of the laminated (or concrete) beam. The standard ceiling mounting bracket should then be attached to this bracket in the normal manner. -
Page 19: Annual Planned Maintenance
REVOLUTION SP FAN ANNUAL PLANNED MAINTENANCE RUN / TEST FAN MOUNTING: Turn the power disconnect switch on the • Re-torque all fasteners [1/2-13 Grade 8 (98 control box to the ON position. Allow a few ft-lbs)], [5/16-18 Grade 8 (29 ft-lbs)]. -
Page 20: Fan Noise
REVOLUTION SP FAN FAN NOISE Revolution Fans are engineered to utilize the full output of a 1 HP motor. So while they are quiet, they do generate noise. The noise can be characterized in these ways: 1. Low pitched “rumbling” noise is commonly Wind noise will be present because the fan from the gearcase. -
Page 21: Troubleshooting
REVOLUTION SP FAN TROUBLESHOOTING SCHNEIDER ELECTRIC FREQUENCY DRIVE Problem Cause Resolution Display on Frequency No power to control box Use voltage meter on AC setting to drive does not light up determine if there is incoming power. Measure across L1/L2, L2/L3, L1/L3. - Page 22 REVOLUTION SP FAN TROUBLESHOOTING SCHNEIDER ELECTRIC FREQUENCY DRIVE Problem Cause Resolution if spikes are random and it is acceptable for the fan to restart itself from this fault. OLF Motor Overload Current trip was activated by something that physically stopped the fan movement. Check the fan for damage.
-
Page 23: Parts List - Ceiling Bracket
REVOLUTION SP FAN PARTS CEILING MOUNT BRACKET ITEM PART# QTY DESCRIPTION Ceiling Bracket 135139 Ceiling Mount Bracket Assembly (includes the following parts)(Black) 135140 Ceiling Mount Bracket(Black) 135141 Spacer (Black) 135142 Clamp Plate (Black) 125338 Bolt, .5"-13 x 2", Grade 8 125339 Nut, .5"-13, Nylock, Grade 8... -
Page 24: Parts List - Lower Bracket - Motor Bracket
REVOLUTION SP FAN PARTS LOWER BRACKET HARDWARE Part Number Description Motor Bracket Lenze 135116 Motor Bracket Assembly Lenze , Black (Includes the following parts) 135117 Motor Frame Bracket, Black Lenze 135118 Motor Frame Cover, 12 G, Black 135119 Motor Frame Base, 12 G, Black 135120 Screw, Self locking, button head cap, .3125-18 x .625... -
Page 25: Parts List
REVOLUTION SP FAN PARTS Part Number Quantity General Description 135151 Hub, 10", 22 deg. Blade angle Blades 135152 (2) Blade set, 8', RSP, Polished 135153 (2) Blade set, 10', RSP, POLISHED 135154 (2) Blade set, 12' RSP POLISHED 135155 (2) Blade set, 8', RSP ANODIZED... -
Page 26: Parts List - Stabilization Cables-Control Boxes
REVOLUTION SP FAN PARTS STABILIZATION CABLES QTY DESCRIPTION Safety Cable Assembly (Includes the following parts) Wire Rope, .25" x 7', 7x19 Cable clamp, .25" Stabilization Cable Assembly - 4'-7' Down tube - (Includes the following parts) Wire Rope, .25x240", 7x19 Galv Turnbuckle, .375"... -
Page 27: Parts List
REVOLUTION SP FAN PARTS ITEM PART# QTY DESCRIPTION 18" Drop Tube 135211 18" Down Tube Assembly (Includes the following parts)(Black) 135212 18" - 3" x 3" square tube(Black) 135213 18" Down Tube Assembly (Includes the following parts)(White) 135239 18" - 3" x 3" square tube(White) 125363 18"... -
Page 28: Parts List - Laminated Beam Kit
REVOLUTION SP FAN PARTS Fan truss support kit 135259 Truss bracket assembly, joist Fan (includes the following parts) (Grey) 135260 Angle 4.625" x 3" x .1875 x 120", Grey 135261 Bolt, .5-13 x 8" fully threaded, grade 8 51709 Washer, .5", Flat 125339 Nut, .5"-13, Nylock, Grade 8... - Page 29 REVOLUTION SP FAN NOTES Pub. No. RFSP Rev. 5 - December 2010...
- Page 30 REVOLUTION SP FAN NOTES Pub. No. RFSP Rev. 5 - December 2010...
- Page 31 REVOLUTION SP FAN NOTES Pub. No. RFSP Rev. 5 - December 2010...
-
Page 32: Warranty
Periodic lubrication and ® ® adjustment is the sole responsibility of the owner. This warranty is RITE-HITE exclusive warranty. RITE-HITE EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. Non- ®...
