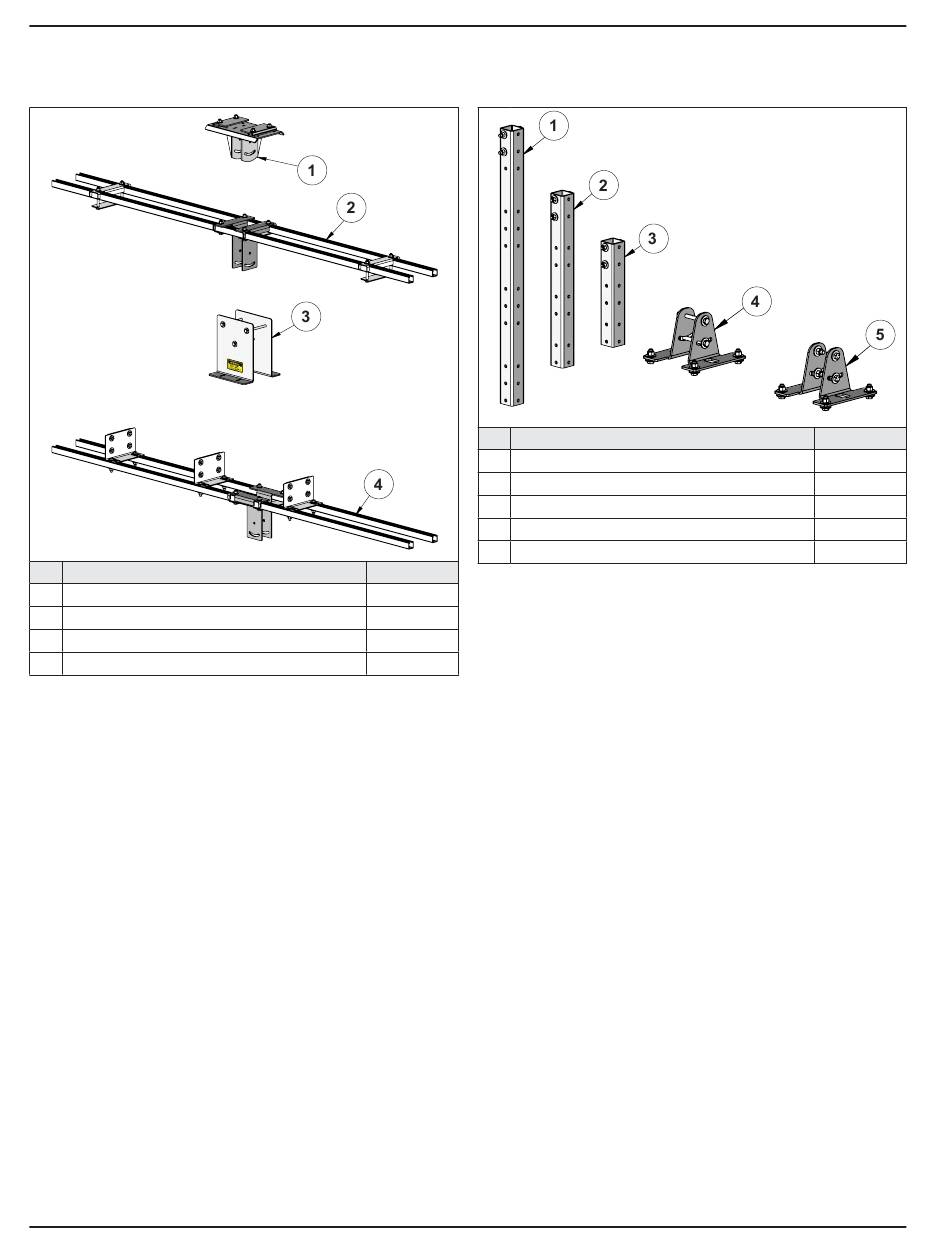

PARTS

Mounts

<1011A126.PDF>
# DESCRIPTION
1 BRKT,ASSY,SWVL,CLNG,FAN,GY
ITEM PART NUMBER
1 14501233
2 MOUNT,ASSY,STRUT,FAN 2 55290037
3 14501239
4 53760145
3 BRKT,ASSY,MNT,LAM BEAM,FAN,GY
4 KIT,HRDWR,MNT,PURLIN,REV
20
Installation/Service/Owner's Manual
1
2
3
4
PART #
14501233
DESCRIPTION
BRKT,ASSY,SWVL,CLNG,FAN,GY
MOUNT,ASSY,STRUT,FAN 55290037
BRKT,ASSY,MNT,LAM BEAM,FAN,GY
KIT,HRDWR,MNT,PURLIN,REV
14501239
53760145

Extension Tubes and Enclosure Mounts

5
6
<1011A126.PDF:2>
# DESCRIPTION
1 EXTN,ASSY,FAN,48",GY
2 EXTN,ASSY,FAN,30",GY
3 EXTN,ASSY,FAN,18",GY
ITEM PART NUMBER
4 5 MOUNT,KIT,ADJ TUBE,DD 44750046 EXTN,ASSY,FAN,48",GY
6 44750039 EXTN,ASSY,FAN,30",GY
5 MOUNT,KIT,NO TUBE,DD
7 44750036 EXTN,ASSY,FAN,18",GY
8 55290038 MOUNT,KIT,ADJ TUBE,DD
9 55290039 MOUNT,KIT,NO TUBE,DD
ITEM PART NUMBER DESCRIPTION
5 44750046 EXTN,ASSY,FAN,48",GY
6 44750039 EXTN,ASSY,FAN,30",GY
7 44750036 EXTN,ASSY,FAN,18",GY
8 55290038 MOUNT,KIT,ADJ TUBE,DD
9 55290039 MOUNT,KIT,NO TUBE,DD
Rite‑Hite
7
7
8
8
PART #
9
44750046
44750039
44750036
DESCRIPTION
55290038
55290039
Publication: AMEN00190 2021-09-24
®
