This manual covers units shipped February 2019 to date.
Fan‑Commander 2.0
Required to operate the fan(s) (ordered separately)
Use Fan‑Commander 20 manual with this manual
for complete installation and operation instructions
Language: English (Hazards: English, French)
Revolution
Rogue
Installation/Service/Owner's Manual
SAFETY 2
INSTALLATION
Step 1 – Mounting Preparation 6
Step 2 – Mounting 6
Step 3 – Motor Bracket 9
Step 4 – Safety Cables
Step 5 – Stabilization Cables
Step 6 – Attach Blades 11
Step 7 – Level Hub 11
Step 8 – Fan Electrical Installation
Step 9 – Control Box 13
Step 10 – Label Plate 13
Step 11 – Motor Cover 13
Fan Guarding 13
Motor Wiring 14
(OPTIONAL)
MAINTENANCE
Run / Test 17
Motor 18
PARTS
Mounting 20
Extension Tube Assemblies, Cables 21
Motor Cover, Motor Assembly 22
Blades 22
Hub 22
Controls 20 23
WARRANTY 24
Publication: AMEN00064 2019-03-07
HVLS Fan
®
HVLS Fan
®
10
11
(INCLUDED WITH KIT)
12
16
Manual Part #: 54450031
Model: REVOLUTION, ROGUE
Advertisement
Table of Contents
Related Manuals for RITE-HITE Revolution HVLS Fan
Summary of Contents for RITE-HITE Revolution HVLS Fan

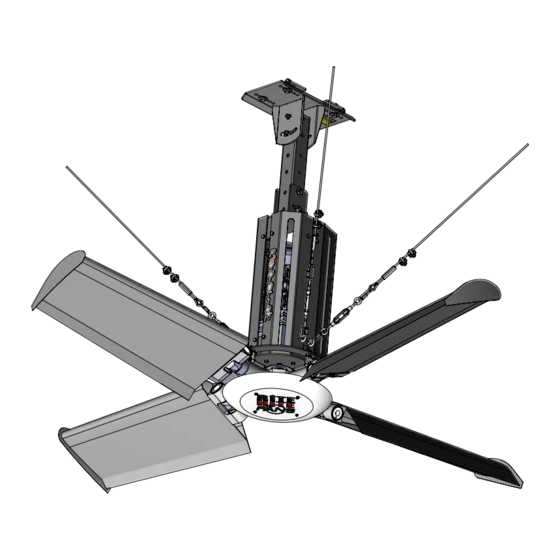

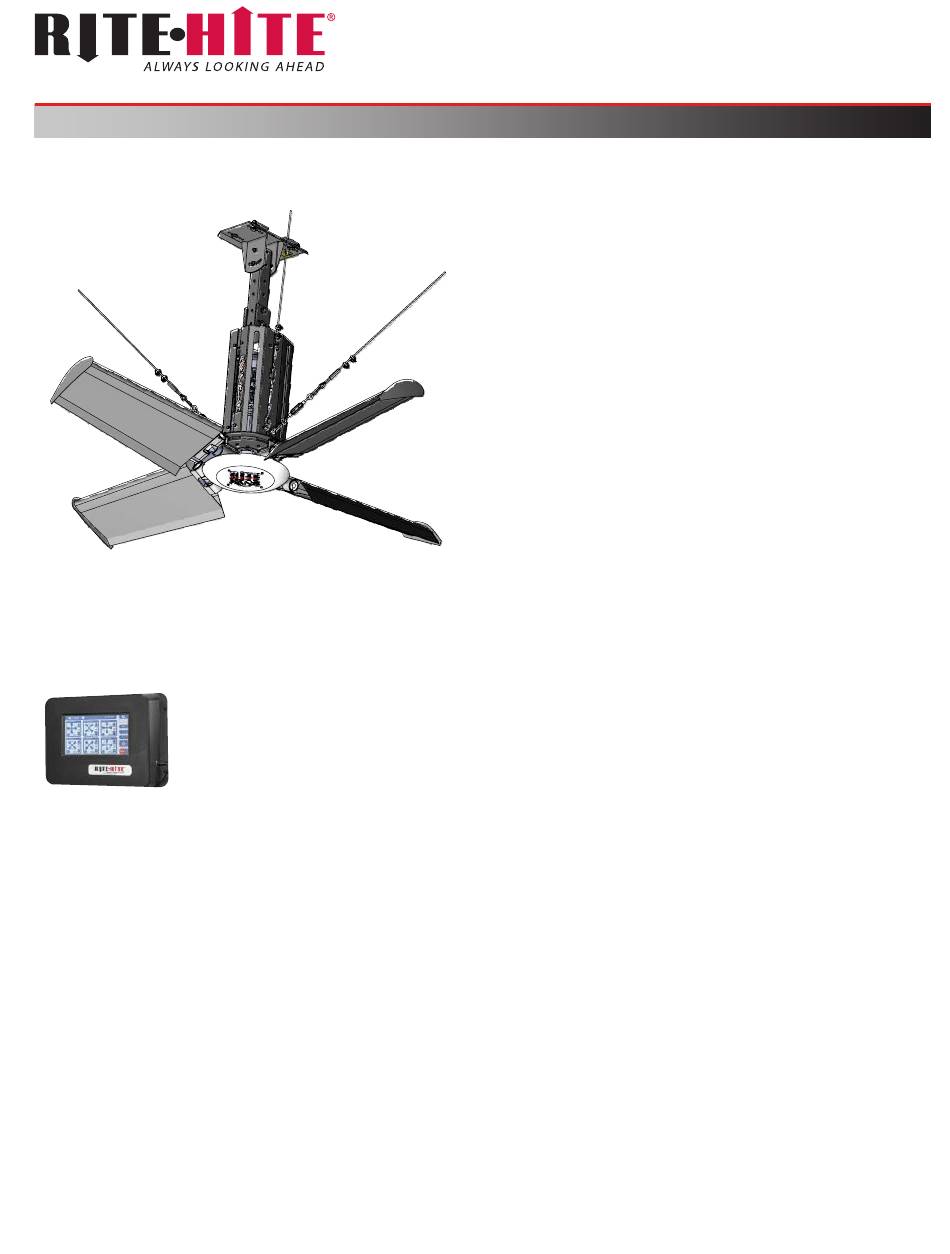

- Page 1 Revolution HVLS Fan ® Rogue HVLS Fan ® Installation/Service/Owner's Manual This manual covers units shipped February 2019 to date. NOTICE TO USER 2 SAFETY 2 INSTALLATION Components 4...
- Page 2 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual NOTICE TO USER SAFETY READ AND SAVE THESE INSTRUCTIONS. Safety Identifications Thank you for purchasing a Rite‑Hite product DANGER The Revolution and Rogue Fans are high‑volume/low‑speed (HV/LS) industrial fans that provide more consistent air Indicates a hazardous situation which, if not circulation and ventilation with better energy efficiency than avoided, will result in death or serious injury.
- Page 3 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual SAFETY Lockout Procedure General Barricade work area and post safety warnings DANGER Power supply/control must: • Be disconnected or locked in OFF Installation to be completed in accordance with the position using a lockout device approved National Electric Code, ANSI/NFPA 70‑1999, and by local codes...
-
Page 4: Specifications
Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual INSTALLATION Components Specifications Before installation, verify all components were received Diameter (Ø) 8ft, 12ft, 16ft, 20ft and 24ft Notify your Rite‑Hite representative if parts are missing [2440mm, 3660mm, 4880mm, 6100mm and 7320mm] or damaged Blades... - Page 5 Extra Air Intake Height Bottom of Beam Mounting Surface Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual Mounting Surface INSTALLATION Shown: Beam mount Fan Clearance, Air Intake 18" [460 mm] Fan Drop Beam Kit Mounted Roof Surface Height Roof surface...
- Page 6 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual INSTALLATION Step 1 – Mounting Preparation Step 2 – Mounting I‑Beam (TYPICAL) WARNING / AVERTISSEMENT Mount directly to a structural framing member to reduce risk of fire, electric shock or injury. Monter directement sur un membre de charpente pour réduire les risques d’incendie, d’électrocution ou de blessure.
- Page 7 (TYPICAL) Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual INSTALLATION Step 2 – Mounting Continued Ceiling Truss Kit (OPTIONAL) WARNING / AVERTISSEMENT Always mount the fan to 2 joists. 1 joist will not provide the rigidity and support necessary for the fan during operation, and may cause the fan to fall and cause injury.
- Page 8 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual INSTALLATION I-BEAM MOUNTING (TYPICAL) Step 2 – Mounting Alternative Methods Continued Laminated Beam Kit (OPTIONAL) Truss Kit sold separately TRUSS KIT SOLD SEPARATELY LAMINATED BEAM KIT (OPTIONAL) Figure 5 Figure 4 1 Through bolt the laminated beam brackets with 1...
- Page 9 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual INSTALLATION Step 3 – Motor Bracket The motor bracket attaches to the extension tube with (2) 1/2in x 4‑1/2in Grade 8 bolts, washers, and locknuts 1 Position the motor bracket so that 1 angle is on each side of the extension tube 2 Insert the bolts through the holes in the angles at the top of the motor bracket and through the extension...
- Page 10 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual INSTALLATION Step 4 – Safety Cables 1 Wrap a safety cable around the bolted brackets at the (INCLUDED WITH KIT) ceiling and through the top of the extension tube (A) WARNING / AVERTISSEMENT 2 If installing with adjustable‑length extension tubes, use a third safety cable to secure the center bolted...
- Page 11 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual INSTALLATION Step 5 – Stabilization Cables Step 6 – Attach Blades (INCLUDED WITH KIT) WARNING / AVERTISSEMENT Always use stabilization cables. They protect the fan from tilting and allowing the blades to impact a ceiling joist or object.
- Page 12 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual INSTALLATION Step 8 – Fan Electrical Installation (TYPICAL) A Mount Fan Control Box (VFD Enclosure) at maintenance accessible height Fan Motor Motor Voltage B Mount disconnect at accessible height, according to local code 3ɸ...
- Page 13 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual INSTALLATION Step 9 – Control Box Step 11 – Motor Cover CAUTION / ATTENTION Mount control boxes outside of the fan diameter. A control box mounted above a fan or inside the fan diameter cannot be locked out safely.
- Page 14 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual ELECTRICAL Motor Wiring LENZE IE3 230V LENZE IE3 460V Use stranded NOTE: WYE-WYE copper conductors only, minimum 75 ̊ C. To maintain 4X rating, use only UL listed 4X fittings.
- Page 15 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual ELECTRICAL Control Box Wiring Standard 3ɸ / 1ɸ EMC Option 3ɸ EMC Option 1ɸ Incoming Power Supply Incoming Power Supply Incoming Power Supply Fuse Fuse Filter Block Block Filter Motor conductors...
- Page 16 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual ELECTRICAL EMC Compliance (OPTIONAL) The EMC Compliance Option includes an EMC filter on the line side of the VFD To maintain IEC 61800‑3 C1 compliance, you must observe the following installation guidelines: •...
- Page 17 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual MAINTENANCE WARNING / AVERTISSEMENT Follow lockout procedures before cleaning or re‑torquing the fan. Suivre les procédures de verrouillage avant le nettoyage ou le resserrage du ventilateur. Planned Maintenance PLANNED MAINTENANCE TASK INSPECT AND PERFORM THE FOLLOWING:...
- Page 18 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual TROUBLESHOOTING Motor WARNING / AVERTISSEMENT Follow lockout procedures and isolate power from fan controls. Suivre les procédures de verrouillage et isoler l’alimentation des contrôles du ventilateur. Disconnect Motor Cable from Control Box Meter Ground Wire W Phase...
- Page 19 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual Publication: AMEN00064 2019‑03‑07...
- Page 20 Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® TRUSS KIT ® Installation/Service/Owner's Manual PARTS SWVL BRKT TRUSS KIT Mounting TRUSS KIT Swivel Bracket Truss Kit DESCRIPTION DESCRIPTION PART # PART # – BRKT,ASSY,SWVL,HOUSING,FAN,GY 14501306 – – MOUNT,ASSY,TRUSS,FAN,GY 55290016 55290016 MOUNT,ASSY,TRUSS,FAN,GY 14501306...
- Page 21 EXTN,ASSY,FAN,240",GY ITEM 18" 30" 84" 120" DESCRIPTION CABLE,AIRCRAFT,GLV,1/4,120" Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual EXTN,ASSY,FAN,18",GY CABLE,AIRCRAFT,GLV,1/4,240" EXTN,ASSY,FAN,30",GY CABLE,AIRCRAFT,GLV,1/4,420" PARTS EXTN,ASSY,FAN,84",GY CABLE,AIRCRAFT,GLV,1/4,84" EXTN,ASSY,FAN,240",GY CLAMP,CABLE,ZINC,1/4,SNGL SAD EXTENSION TUBE ASSEMBLIES & CABLES Extension Tube Assemblies, Cables CABLE,AIRCRAFT,GLV,1/4,120"...
- Page 22 12510014 BLADE,SET(2),FAN,24'DIA Revolution HVLS Fan • Rogue HVLS Fan Rite‑Hite ® ® ® Installation/Service/Owner's Manual 1012.XXX MOT,ASSY,FAN,W/VOLTAGE PARTS CVR,HUB,DOM CVR,HUB,DO 12510013 BLADE,SET(2),FAN,24'DIA,LHR 12510014 BLADE,SET(2),FAN,24'DIA Motor Cover, Motor Assembly MOTOR ASSEMBLY & COVER 17900203 1012.XXX CVR,HUB,DOME,RITEHITE,REV MOT,ASSY,FAN,W/VOLTAGE 53760007 53760007 KIT,BLD,SCR,M24X100MM,AL KIT,BLD,SCR,M24X100MM,AL 67870130 67870130 SCR,BHMS,SCKT,1/4-20X2,SS...
- Page 23 Rite‑Hite Revolution HVLS Fan • Rogue HVLS Fan ® ® ® Installation/Service/Owner’s Manual PARTS Controls 2.0 DESCRIPTION PART # Filter,EMC,YSKW,480V,3PH,10A 45500027 FIlter,EMC,YSKW,240V,3PH,14A 45500026 Filter,EMC,YSKW,240V,1PH,20A 45500023 INV,YSKW,240V,3PH,10A 53300081 INV,YSKW,480V,3PH,05A 53300082 INV,YSKW,480V,1PH,10A 53300080 PCB,RADIO,900MHZ,VFD 16650014 PCB,RADIO,24MHZ,VFD 16650018 RTNR,PCB,RADIO 66800017 ANTENNA,900MHZ,RPSMA 11280004 ANTENNA,24GHZ,RPSMA 11280005 FUSE,10A,600V,CC,ATDR 51000066...
- Page 24 LIMITED PRODUCT WARRANTY Revolution HVLS Fan • Rogue HVLS Fan ® ® Rite‑Hite Company, LLC and its affiliates (collectively "Rite‑Hite") warrant that the Product sold to the Owner will be free of defects in design, materials and workmanship (ordinary wear and tear excepted) for the periods set forth below ("Limited Warranty") Three (3) Year(s) on all mechanical and electrical parts (non‑prorated) One (1) Year(s) labor, based on Rite‑Hite approved travel and labor repair times...
