Revolution 25, 75, 150 Series HVLS Fans
INSTALLATION

Motor Cover

Re‑level the fan after blade and cover attachment.
(Fan Leveling, page 16).
18
Installation/Service/Owner's Manual

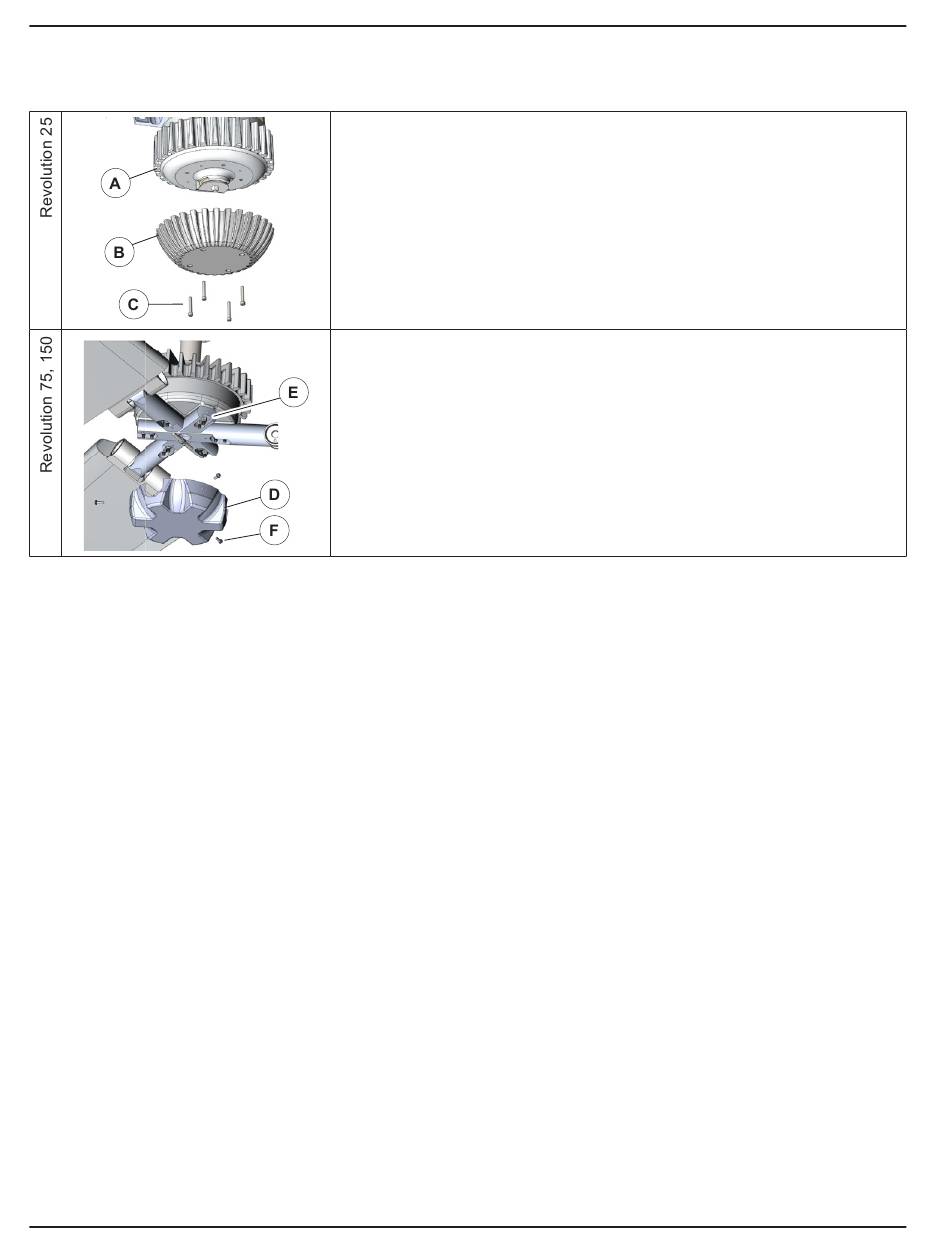

1. Align the motor cover ribs (B) with motor fins (A):
• Locate the 1/4 in (6.35 mm) recessed circle inside
the cover.
• Position the circle toward the socket head cap
screw securing the cable bracket to the motor.
2. Use a 3/16 in allen wrench to secure the cover and the motor using
(4) 1/4 in x 1‑1/2 in socket head cap screws (C).
1. Slide the motor cover (D) over the fan arms (E).
2. Secure cover with (3) 1/4 in x 5/8 in bolts (F) with exterior star lock
washers.
Rite‑Hite
Publication: AMEN00190 2021-09-24
®
