Electrical Components - RITE-HITE Revolution 25 Series Installation/Service/Owner's Manual

®
Revolution 25, 75, 150 Series HVLS Fans
PARTS

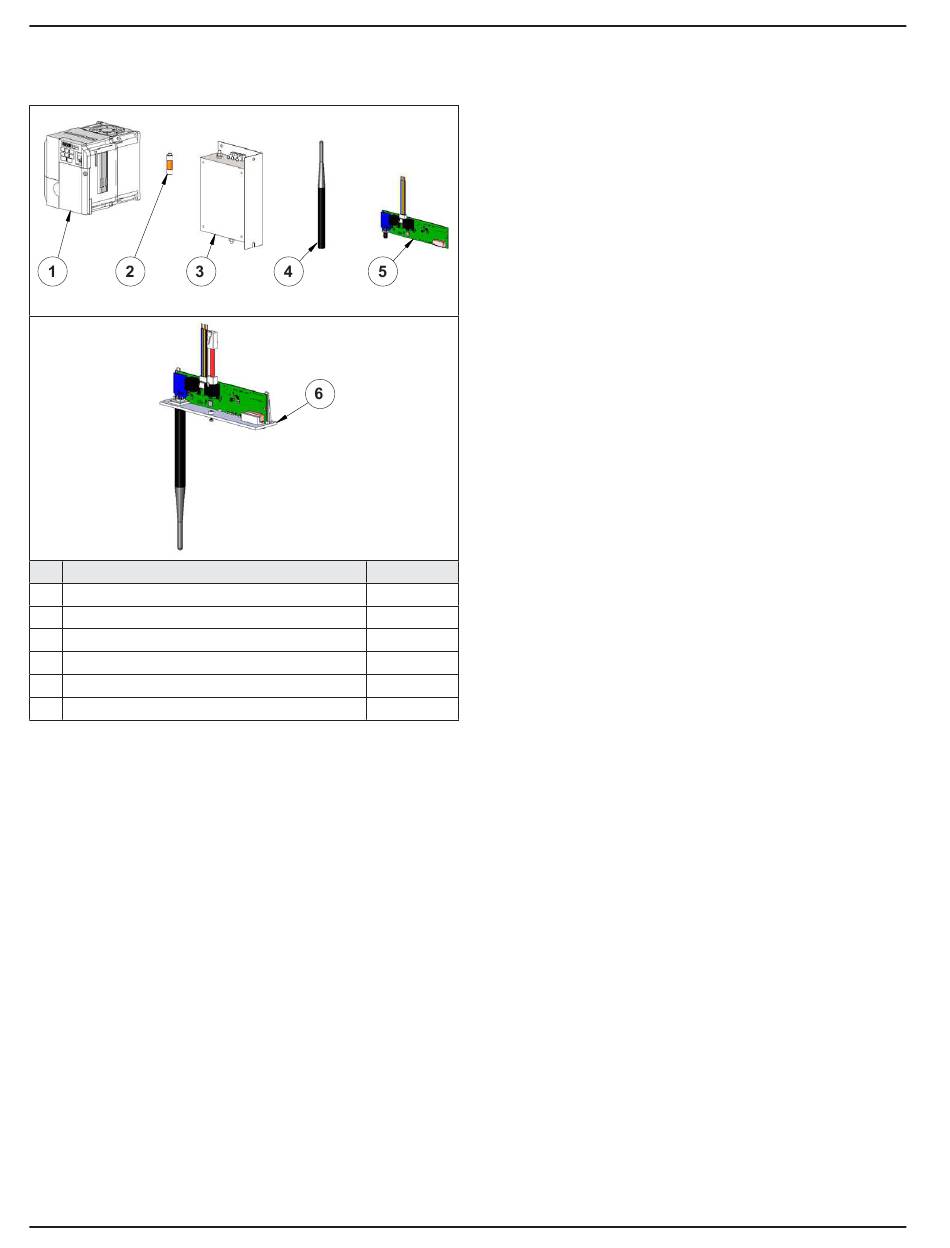

Electrical Components

17 18
16
<1011A026 HIGH QUALITY PRINT.PDF:3>
ITEM PART NUMBER
16 7640
17 51000067
18 45500026
19 11280004
20 16650014
<1011A026 HIGH QUALITY PRINT.PDF:4>
# DESCRIPTION
1 VFD,REV,DD
2 FUSE,15A,600V,CC,ATDR
3 FILTER,EMC,YSKW,240V,3PH,14A
4 ANTENNA,900MHZ,RPSMA
5 PCB,RADIO,900MHZ,VFD
6 KIT,COMM,900 MHZ RADIO,DD
22
Installation/Service/Owner's Manual
19 20
21
DESCRIPTION
VFD,REV,DD
FUSE,15A,600V,CC,ATDR
FILTER,EMC,YSKW,240V,3PH,14A
ANTENNA,900MHZ,RPSMA
PCB,RADIO,900MHZ,VFD
ITEM QTY PART NUMBER DRAWING
21 1 53760134 1011M015
PART #
7640
51000067
45500026
11280004
16650014
53760134
DESCRIPTION
KIT,COMM,900 MHZ RADIO,DD
Rite‑Hite
Publication: AMEN00190 2021-09-24
®
