INSTALLATION
Fan Clearance
Continued
Alternate Fan Drop Height (Revolution 25, 75, 150)
Re‑calculate and verify fan clearances and air intake if
alternate drop heights are used.
ORIGINAL
FAN DROP HEIGHT
56 in (1430 mm)
68 in (1730 mm)
68 in (1730 mm)
86 in (2190 mm)
86 in (2190 mm)

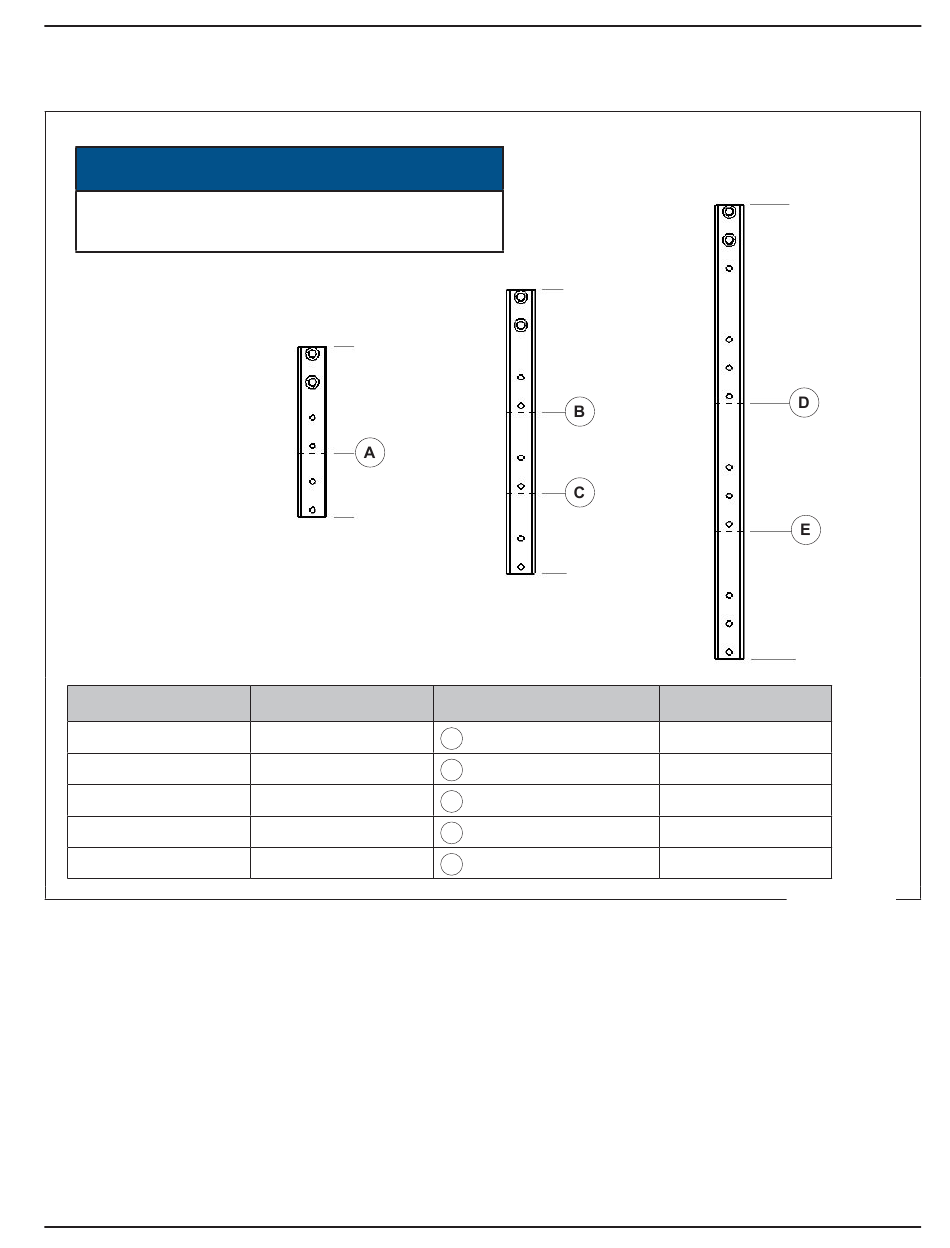

Extension tubes include extra holes to create shorter
alternate fan drop heights when field cutting.
Other fan drop heights are possible with field drilling and
cutting. Factory drilled 9/16 in (14 mm) holes are 3/4 in
(19 mm) from each end and spaced 3 in (76 mm) on
center. Additional holes are required to route the safety
cable.
Removing the extension tube:
• Decreases the fan drop height to 43.00 in (1100 mm).
• Requires (4) 1/2 in x 1.5 in bolts, washers and nylon
lock nuts.
Publication: AMEN00190 2021-09-24
NOTICE
0 in (0 mm)
18 in (460 mm)
ORIGINAL
EXTENSION TUBE LENGTH
18 in (460 mm)
30 in (770 mm)
30 in (770 mm)
48 in (1220 mm)
48 in (1220 mm)
Installation/Service/Owner's Manual
0 in (0 mm)
30 in (770 mm)
ALTERNATE
EXTENSION TUBE CUT LENGTHS
= 11.25 in (290 mm)
A
= 13.00 in (340 mm)
B
= 21.50 in (550 mm)
C
= 21.00 in (540 mm)
D
= 34.50 in (880 mm)
E
Revolution ® 25, 75, 150 Series HVLS Fans
0 in (0 mm)
48 in (1220 mm)
ALTERNATE
FAN DROP HEIGHTS
49.25 in (1260 mm)
51.00 in (1300 mm)
59.50 in (1520 mm)
59.00 in (1500 mm)
72.50 in (1850 mm
Figure 2
