Revolution HVLS Fan • Rogue
®
INSTALLATION
Step 1 – Mounting Preparation
WARNING / AVERTISSEMENT
Mount directly to a structural framing member to
reduce risk of fire, electric shock or injury.
Monter directement sur un membre de charpente
pour réduire les risques d'incendie,
d'électrocution ou de blessure.
NOTICE
For optimal/unrestricted air movement follow these
guidelines:
If the ceiling support structure is a;
• Open‑web design, take all hanging dimensions
from the underside of the ceiling
• Solid beam or solid channel, take all measurements
from the bottom of the beam for the hanger dimension
If the roof is pitched, this must be accounted for above
the tips of the blades
Fan Weight and Torque
NOTICE
The weight of the fan that will be suspended from the
ceiling is ≈ 300lb [136.4kg] and will generate torque of
up to 300ft-lb [407Nm].
6
HVLS Fan
®
Installation/Service/Owner's Manual

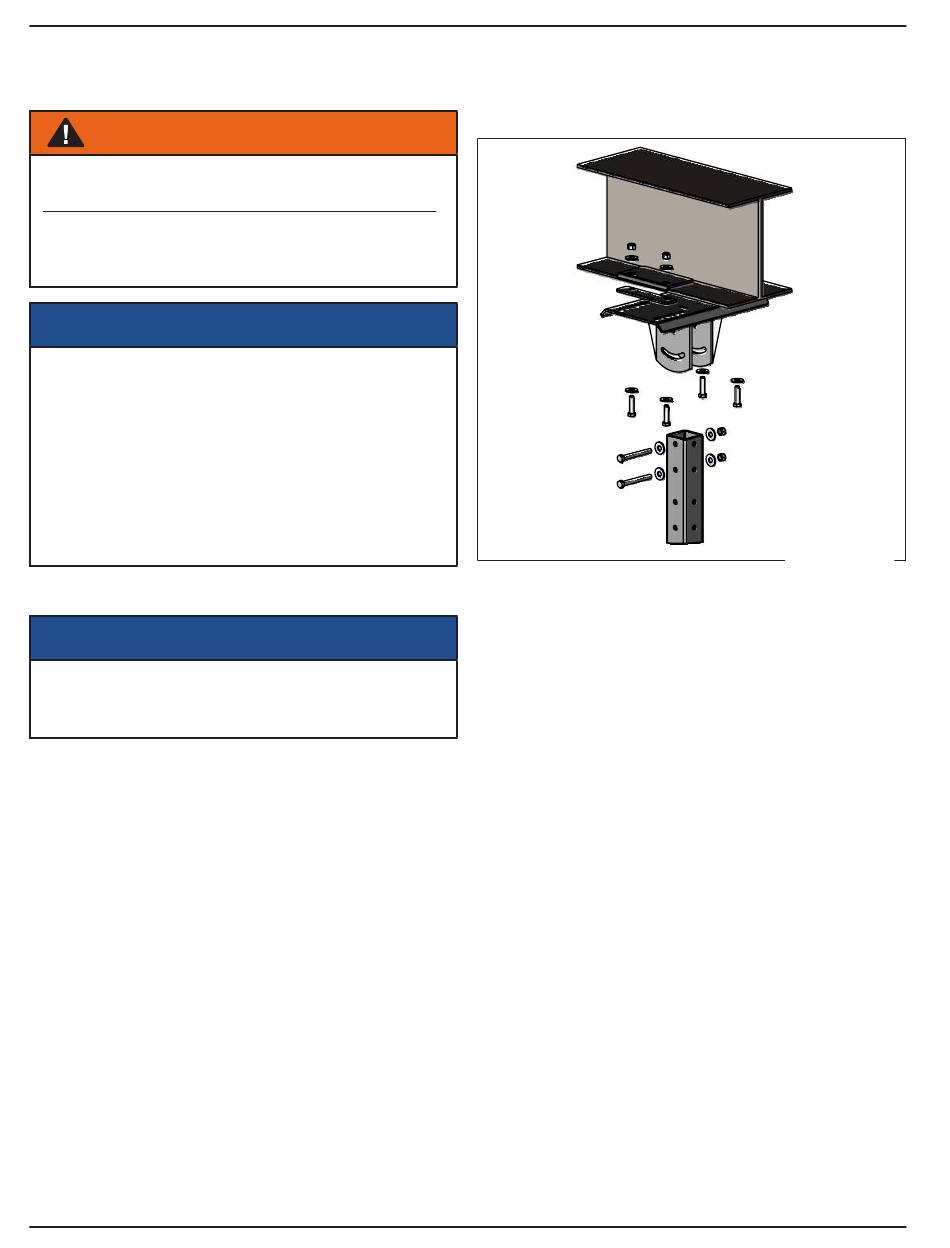

Step 2 – Mounting
I‑Beam
(TYPICAL)
1 Mount fan directly to building support I‑beam
(6in – 13.5in [150mm – 350mm] wide) with provided
brackets
2 Clamp the brackets around the beam using the holes
in the upper beam mounting bracket that are closest
to the edge of the beam

When the beam is larger than the bracket

NOTE:
(greater than 13.5in [350mm] wide), clamp the bracket
on 1 edge of the beam and drill holes through the
beam to bolt the other side securely Use only Grade 8
hardware
3 Use a level to ensure the extension tube is hanging
vertical
Rite‑Hite
Figure 2
LAMINATED BE
(OPTIONAL)
Publication: AMEN00064 2019‑03‑07
®
I-BEAM M
(TYPICA
