  • Page 1 RedFox 5328 Series Industrial routing switches...
  • Page 2: Table Of Contents

    4.1.2. Wall Mounting ............16 4.2. Protective Earth Connection ..........16 4.3. Cooling ................16 5. Specifications ................17 5.1. Interface Specifications ............17 5.2. Type Tests and Environmental Conditions ......... 19 6. Revision Notes ................23 RedFox 5328 Series...
  • Page 3: General Information

    Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 4: Safety And Regulations

    No personal injury Minor damage to the order to avoid misuse of product the product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels RedFox 5328 Series...
  • Page 5: Safety Information

    Before energising and connecting communication cables to the product, ensure a protective earthing conductor is first connected to the protective earthing terminal (only valid for metallic housings). Westermo recommends a cross-sectional area of at least 4 mm Upon removal of the product, disconnect the product from the power supply and all other communication ports before disconnecting the protective earthing conductor.
  • Page 6 The power supply wiring must be sufficiently fused. It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personnel. POWER SUPPLY CONNECTION There are safety regulations governing the power source that can be used in conjunction with the product.
  • Page 7: Care Recommendations

    If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, the nearest Westermo distributor office or Westermo technical support. RedFox 5328 Series...
  • Page 8: Product Disposal

    This product has been tested and found compliant to EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use. In accordance with the definitions of the standard, this product shall be handled by skilled service personnel. Valid for all RedFox-5328(-E)-HV models RedFox 5328 Series...
  • Page 9: Iec/Ul 62368-1 Notice

    Table 3. EN/IEC/UL 62368-1 notice 2.5.4. UL 62368-1 DC Mains Notice In accordance with UL 62368-1, Annex DVD and DVH then Westermo does not recommend using the mechanical enclosure/chassis (PE) as a conductive part of the sourced earthed DC power system in a DC mains distribution networks. If so, the...
  • Page 10: Fcc Part 15.105 Class B Notice

    2.5.8. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/product-support.
  • Page 11: Product Description

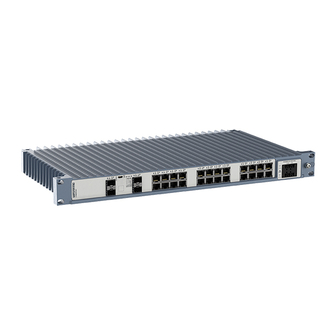

    Various port configurations are available, that can be further customized with SFP transceivers. The RedFox 5328 series is available with either a DC or AC power supply. The RedFox 5328 series is powered by the next generation WeOS operating system, which ensures robust operation and support for an expanding range of protocols and features.
  • Page 12: Hardware Overview

    Table 4. Power input LV models Illustration Position Product Direction Description marking AC/DC1 L(+) Input Line/Phase (AC), N (-) L (+) AC/DC positive (DC) N(-) Input Neutral (AC), negative/return (DC) Input Functional earth Table 5. Power input HV models RedFox 5328 Series...
  • Page 13: Console Port

    VCP driver. 3.4.3. SFP Transceivers The product supports UL and IEC certified transceivers only. See Westermo's modular transceivers datasheets 100 Mbit and 1 Gbit for supported SFP transceivers, which can be downloaded from the product support pages at www.westermo.com/support/product-...
  • Page 14: Led Indicators

    Input voltage is below operating voltage limit USR2 Configurable, see WeOS5 User Guide TX/FX No link ports GREEN Link established GREEN Data traffic indication FLASH YELLOW Port alarm, or port is set in blocking state by link redundancy protocol Table 6. LED indicators RedFox 5328 Series...
  • Page 15: Dimensions

    3.6. Dimensions Dimensions are stated in mm. 482,4 7,20 (x4) Figure 4. Dimensional drawing RedFox 5328 Series...
  • Page 16: Installation

    For wall mounting in an area without forced ventilation, a minimum spacing of 45 mm (1.75") above/below and 10 mm (0.4") left/right is recommended. For areas with forced ventilation, no minimal spacing is required as long as the temperature of the rear cooling plates does not exceed +85ºC (+185ºF). RedFox 5328 Series...
  • Page 17: Specifications

    Minimum temperature rating of the cable to be connected to the field wiring terminals is +77 °C Tightening torque, terminal 0.34 Nm screw Tightening torque, screw 0.34 Nm flange Shielded cable Not required Measured for 1 second at startup Recommended external supply current capability for proper startup RedFox 5328 Series...
  • Page 18 100 Mbit/s or 1000 Mbit/s tranceiver supported Console port Electrical specification USB 2.0 device interface Data rate Up to 480 Mbps (high-speed mode) Circuit type SELV Maximum supply current 100 mA Connector USB Micro B connector in device mode RedFox 5328 Series...
  • Page 19: Type Tests And Environmental Conditions

    Power port LV models: Class B emission HV models: Class A ANSI C63.4 LV models: Class B HV models: Class A (FCC Part 15 B) CISPR 22 Ethernet ports LV models: Class B HV models: Class A RedFox 5328 Series...
  • Page 20 IEC 60255-27 Power port (AC, HV models: 2000 VAC rms, 60 s DC) to all other ports IEEE 802.3 Ethernet ports to 1500 VAC rms, 60 s all other ports Table 7. EMC and electrical conditions RedFox 5328 Series...
  • Page 21 IP40 Cooling Convection Pollution degree EN/IEC/UL HV models: PD2 Macro and Micro 61010-1, EN Environment 50124-1, EN/IEC/UL 62368-1 Overvoltage EN/IEC/UL HV models: OVC II category 61010-1, EN/IEC/UL 62368-1 Insulation class EN/IEC/UL HV models: Class I equipment 61010-1 RedFox 5328 Series...
  • Page 22 Environmental Basic Description Test levels phenomena standard Location Indoor use For LV models only Method 3, 21 days corresponds to Harsh Industrial Environment G3 which is defined in ANSI/ISA 17.04: 2015 Table 8. Environmental and mechanical conditions RedFox 5328 Series...
  • Page 23: Revision Notes

    6. Revision Notes Revision Date Change description Rev. A 2023-10 First version of the user guide RedFox 5328 Series...
