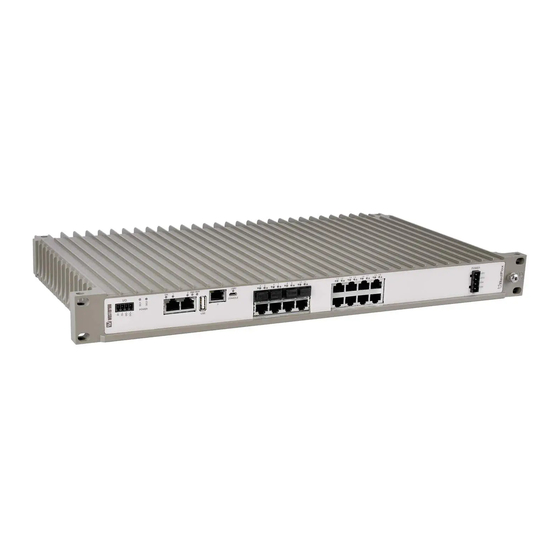

Summary of Contents for Westermo RFIR-127-F4G-T7G-DC

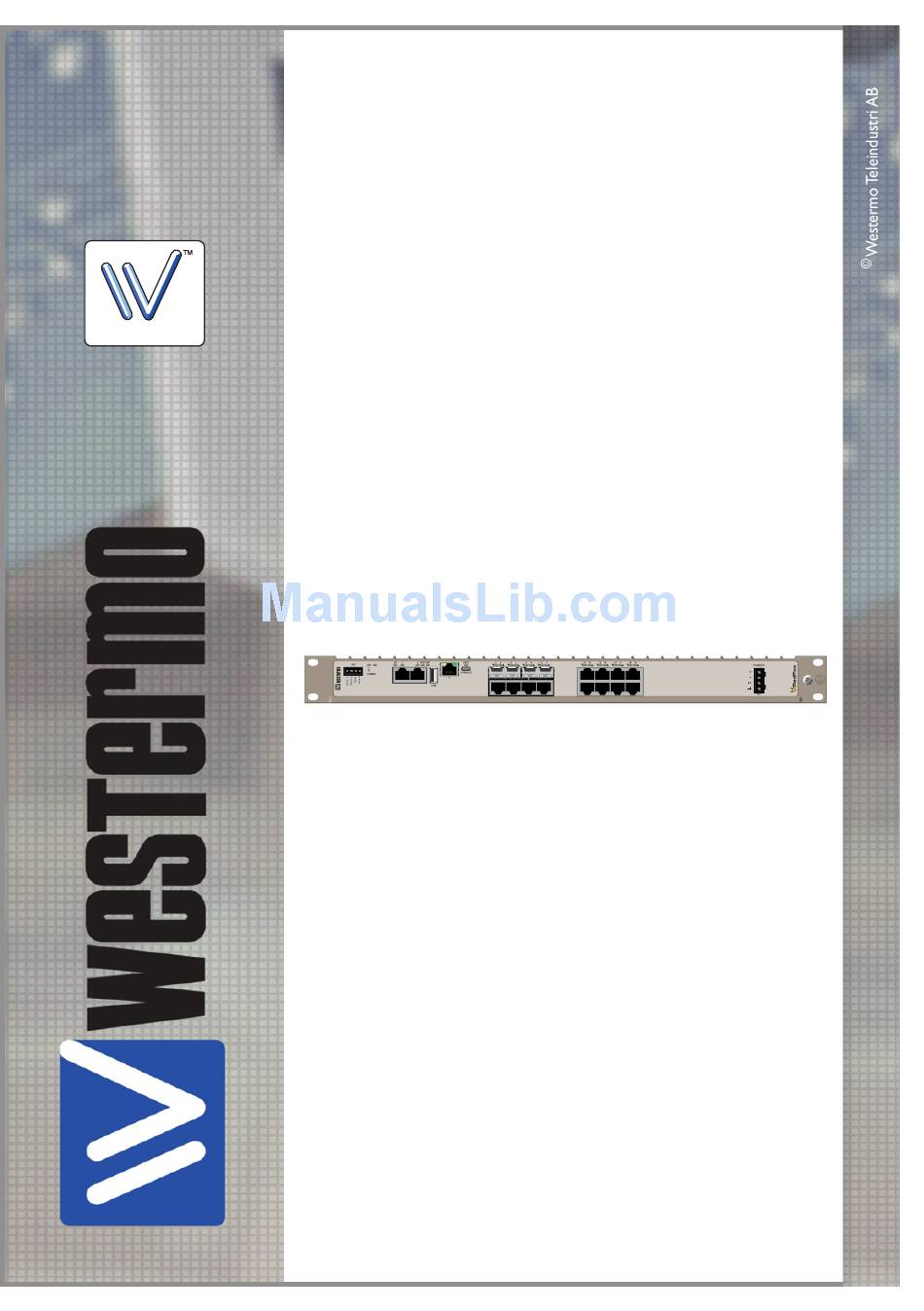

- Page 1 User Guide 6641-22810 RedFox Industrial Rack WeOS S E R I E S Industrial Routing Switch www.westermo.com...
-
Page 2: Software Tools
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. -
Page 4: Cleaning Of The Optical Connectors
Note. Fibre Optic Handling Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt. If the fibre will be disconnected from the unit the protective hood on the transmitter/receiver must be connected. The protective hood must be kept on during transportation. The fibre optic cable must also be handle the same way. -
Page 5: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Art.no Model Type Approval/compliance 3641-4020 RFIR-127-F4G-T7G-DC EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and 3641-4030 RFIR-127-F4G-T7G-AC immunity of the signalling and telecommunications 3641-4005 RFIR-219-F4G-T7G-DC apparatus 3641-4015 RFIR-219-F4G-T7G-AC EN 55022, Information technology equipment –... -
Page 6: Safety Control Drawing
Safety control drawing Position Direction/ Input/output values description In/out / BI_DA+ In/out / BI_DA– In/out / BI_DB+ Per port: In/out / BI_DC+ U = ± 1 V (4V/us) I = ± 20 mA In/out / BI_DC– Data rate: In/out / BI_DB– 10/100/1000 Mbit/s Direction/ Position... - Page 7 Safety control drawing Position Direction* / description Input/output values In/out / TD+ In/out / TD– In/out / RD+ Per port: Not connected U = ± 1 V (4V/us) I = ± 20 mA Not connected Data rate: In/out / RD– 10/100 Mbit/s Not connected Not connected...
-
Page 8: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of Conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Models Industrial Ethernet Switch RFIR-x19-F4G-T7G-DC, RFIR-x27-F4G-T7G-DC for 19 inch Rack mounting RFIR-x19-F4G-T7G-AC, RFIR-x27-F4G-T7G-AC is in conformity with the following EU directive(s). -
Page 9: Type Tests And Environmental Conditions
Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 2700 MHz 10 V/m 80% AM, 1kHz sine, 2700 – 6000 MHz Fast transient EN 61000-4-4 Signal ports... - Page 10 The RFIR (RedFox Industrial Rack) is a high performance industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customized with SFP transceivers. RFIR is powered by the Westermo WeOS network operating system.
-
Page 11: Specification
Housing Description The RedFox Industrial Rack is designed for installation in 19” rack solutions according to ETSI standard with a shallow depth of 240 mm. RFIR can also be wall mounted as an installation option. Port number RFIR-219-F4G-T7G DC or AC Port number all other models REVISIONS Description... -
Page 12: Power Interface Specifications
Interface specifications Console SFP slot, 100/1000 Mbit/s FX or port 10/10/1000 Mbit/s TX ports Power 10/100/1000 Mbit/s 10/100 Mbit/s TX ports Protective earth TX ports Power interface specifications DC power 4-position Product marking Direction Description No. 1 +DC1 Input Supply voltage input DC1 No. - Page 13 Operating voltage AC models 90 to 264 VAC, 47-63 Hz DC models 16 to 60 VDC Maximum nominal current RFIR-127-F4G-T7G-DC 1.0 (1.2*) A @ 24 VDC consumption 0.47 (0.54*) A @ 48 VDC RFIR-219-F4G-T7G-DC 0.93 (1.12*) A @ 20 VDC 0.38 (0.45*) A @ 48 VDC...
- Page 14 Console Connection to console port The console port can be used to connect to the CLI (Command Line Interface). The console connector is a micro USB cable that connects to a FTDI FT232R USB to serial converter internally. For drivers please see www.ftdichip.com and download the appropriate VCP driver.
-
Page 15: Network Ports
Network ports Slot 1 Slot 2* Slot 3* Slot 4* RFIR-219-F4G-T7G DC and AC RFIR-127-F4G-T7G DC and AC RFIR-227-F4G-T7G DC and AC Slot 1 Slot 1 10/100/1000 Mbit/s, TX port 10/100/1000 Mbit/s, TX port 10/100/1000 Mbit/s, TX port 10/100/1000 Mbit/s, TX port 10/100/1000 Mbit/s, TX port 10/100/1000 Mbit/s, TX port Slot 2... - Page 16 10/100(/1000) Mbit/s, TX ports Ethernet TX Electrical specification IEEE std 802.3. 2005 Edition Data rate 10 Mbit/s, 100 Mbit/s, (1000 Mbit/s), manual or auto Duplex Full or half, manual or auto Circuit type TNV-1 Transmission range Up to 150 m with CAT5e cable or better Isolation to All other Connection...
-
Page 17: Sfp Slot
SFP slot Each SFP slot can hold one SFP transceiver for copper or fibre cable. Fibre transcievers distances range from 550 m (0.34 mi) to 120 km (74.6 mi). For supported transceivers, see SFP data sheet. Position Direction* Description Receive port Transmit port * Direction relative this unit. - Page 18 I/O connection Product marking Direction Description Digital In- Digital in – Input Digital in – Digital In+ Digital in + Input Digital in + Status- Status – Output Alarm relay (status) contact Status+ Status + Output Alarm relay (status) contact The Status output is a potential free, opto-isolated normally closed solid-state relay.
-
Page 19: Led Indicators Power/Cpu
LED indicators Power/CPU Status Description Unit has no power. GREEN All OK, no alarm condition. Alarm condition, or until unit has started up. (Alarm conditions are configurable, see ''WeOS Management Guide''). BLINK Location indicator ("Here I am!"). Activated when connected to IPConfig Tool, or upon request from Web or CLI. -
Page 20: Sfp Transceivers
SFP Transceivers The unit supports Westermo labelled transceivers only. See Westermo's modular transceivers datasheets 100 Mbit and 1 Gbit for supported SFP transceivers for the RedFox series. See Transceiver User Guide "6100-0000" for transceiver handling instructions. Deviations With copper transceiver 1100-0148 the specified operating temperature on the RFI and RFIR series is 0 to 50ºC. -
Page 21: Rack Mounting
Mounting This unit can either be rackmounted or wallmounted, see figures below. Rackmounting < _ +85°C (+185°F) The unit can be mounted in all directions inside a 19" apparatus cabinet. Use M6x25 or 1/4"x1" screws. Wallmounting The unit can also be wallmounted in all directions. -
Page 22: Getting Started
Getting Started This product runs Westermo Operating System (WeOS) which provides several management tools that can be used for configuration of the unit. • WeConfig WeConfig is a Network configuration management tool (NCM) made for commissioning and maintenance of components in a network. -
Page 23: Referring Documents
Westermo website. Type Description Document number Management Guide Westermo OS management guide 6101-3201 Cable factory reset on RedFox Industrial Rack It is possible to set the unit to factory default settings by using a standard (straight) Ethernet RJ-45 cable. 1. Power off the switch and disconnect all Ethernet cables (including copper and fibre). -
Page 24: Sales Units
France Singapore Other Offices infos@westermo.fr sales@westermo.com.sg www.westermo.fr www.westermo.com Germany Sweden info@westermo.de info.sverige@westermo.se www.westermo.de www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. J 6641-22810 2016-05 Westermo Teleindustri AB, Sweden...
