  • Page 1 RedFox 5728 Series Industrial routing switches...
  • Page 2: Table Of Contents

    4.1.1. Rack Mounting ............18 4.2. Protective Earth Connection ..........18 4.3. Cooling ................18 5. Specifications ................19 5.1. Interface Specifications ............19 5.2. Type Tests and Environmental Conditions ......... 23 6. Revision Notes ................27 RedFox 5728 Series...
  • Page 3: General Information

    Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 4: Safety And Regulations

    No personal injury Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels RedFox 5728 Series...
  • Page 5: Safety Information

    During installation, ensure a protective earthing conductor is first connected to the protective earthing terminal (only valid for metallic housings). Westermo recommends a cross-sectional area of at least 4 Upon removal of the product, ensure that the protective earthing conductor is disconnected last.
  • Page 6 WARNING - PROTECTIVE FUSE It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personell. WARNING - POWER SUPPLY CONNECTION There are safety regulations on which power sources that shall be used in conjunction with the product.
  • Page 7: Care Recommendations

    There may be a requirement on the minimum temperature rating of the cable to be connected to the field wiring terminals, see Interface Specifications. 2.3. Care Recommendations Follow the care recommendations below to maintain full operation of the product and to fulfill the warranty obligations: RedFox 5728 Series...
  • Page 8: Product Disposal

    If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo technical support.
  • Page 9: Compliance Information

    2.5.3. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/product-support.
  • Page 10: Product Description

    Intuitive set-up and configuration enable easy and cost-efficient installation and removes the need for specialized IT support or training. Recognizing the growing sophistication of cyberattacks, an extensive suite of cyber security tools is also available. RedFox 5728 Series...
  • Page 11: Available Models

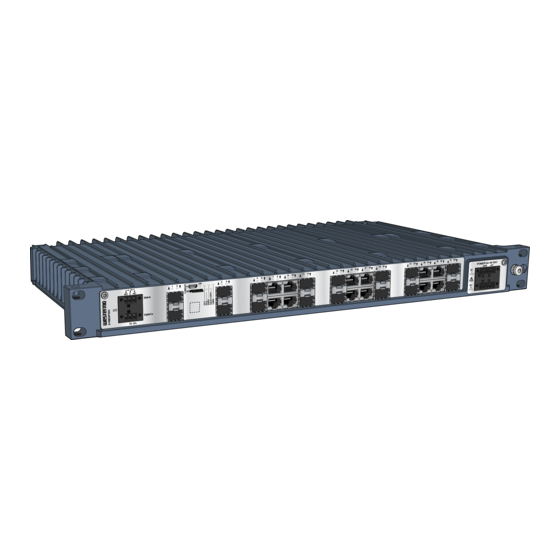

    Protective earth Label with QR code The base MAC address and production date of the product is included in the front label QR code Figure 3. Location of interface ports and LED indicators, illustrated by a RedFox-5728-F16G-T12G- HVHV RedFox 5728 Series...
  • Page 12: Connector Information

    Table 3. Power input HVHV Illustration Position Product Direction Description marking AC/DC1 L(+) Input Line/Phase (AC), positive (DC) N (-) L (+) AC/DC N(-) Input Neutral (AC), negative/return (DC) Input Functional earth Table 4. Power input HV RedFox 5728 Series...
  • Page 13: I/O Connection

    Alarm (status) relay contact: Output NO - Normally Open C - Common Output Digital in NC - Normally Closed Table 5. I/O connection The Digital in is an opto-isolated digital input, which can be used to monitor external events. RedFox 5728 Series...
  • Page 14: Console Port

    To insert the micro SD card correctly, turn the gold plated pins upwards. Figure 5. Insertion of micro SD card 3.4.5. SFP Transceivers The product supports UL and Westermo labelled SA-approved transceivers only. See Westermo's modular transceivers datasheets 100 Mbit and 1 Gbit for SA-approved SFP RedFox 5728 Series...
  • Page 15 They are very sensitive to dust and dirt. If the fibre is disconnected from the product, the protective plugs on the transmitter/ receiver must be connected. The protective plugs must be kept on during transportation. The fibre optics cables must be handled the same way. RedFox 5728 Series...
  • Page 16: Led Indicators

    TX/FX No link ports GREEN Link established GREEN Data traffic indication FLASH YELLOW Port alarm and no link. Or if FRNT or RSTP mode, port is blocked. Only available on RedFox-5728 HVHV models Table 7. LED indicators RedFox 5728 Series...
  • Page 17: Dimensions

    3.6. Dimensions Dimensions are stated in mm. 482,4 DETAIL A SCALE 1 : 1 7,2 (x4) Figure 6. Dimensional drawing, illustrated by a RedFox-5728-F16G-T12G-HVHV RedFox 5728 Series...
  • Page 18: Installation

    For mounting in 19" apparatus cabinet without forced ventilation, a minimal spacing of 1U according to IEC 60297 or 45 mm (1.75") above/below is recommended. With forced ventilation, no minimal spacing is required as long as the temperature of the rear cooling plates does not exceed +85ºC (+185ºF). RedFox 5728 Series...
  • Page 19: Specifications

    NOTE - USE OF ANTISTATIC ARM-WRIST BAND To minimize the risk of exposing the unit to unintentional large static electric fields - if service and maintenance need to be performed during operation, always use an antistatic arm-wrist band. RedFox 5728 Series...
  • Page 20 When both AC/DC1 and AC/DC2 inputs are energized, some portion of the unit's power consumption will be drawn from AC/DC2, while AC/DC1 will utilize the majority of the power consumption. Including SFP transceivers Measured for 1 second at startup Recommended external supply current capability for proper startup RedFox 5728 Series...
  • Page 21 Solid state, DC general use, DC Pilot duty Maximum withstand across 60 VDC (continous) open contacts Permissible current 80 mA (continous), 120 mA (short term 1 s.) External circuits connected to I/O connectors shall be SELV-rated circuits, galvanic isolated from mains. RedFox 5728 Series...
  • Page 22 Up to 480 Mbps (high-speed mode) Circuit type PELV Maximum supply current 100 mA Connector USB Micro B connector in device mode Micro SD Electrical specification Secure Digital 2.0 Maximum supply current 100 mA Connector Micro SD connector RedFox 5728 Series...
  • Page 23: Type Tests And Environmental Conditions

    CM: ±2.5 kV 200 Ω/1 µF, 1 MHz direct of Ethernet ports shield Voltage dips and EN 61000-4-29 DC power port 70% U , 100 ms interruptions (DC 40% U , 100 ms port) 0% U , 50 ms RedFox 5728 Series...
  • Page 24 IEEE 802.3 Ethernet ports to 1500 VAC rms, 60 s all other ports Impulse withstand IEC 60255-27 Power port (AC) 5 kV Power port (DC) I/O port Ethernet ports 1 kV Table 8. EMC and electrical conditions RedFox 5728 Series...
  • Page 25 Class V.S.3 1 to 150 Hz at <30 mm/s Shock Operational Class 2, 10g/11 ms, 3x6 shocks 60255-21-2 Non-operational Class 2, 30g/11 ms, 3x6 shocks Bump Class 2, 20g/16 ms, 6x1000 bumps Fall IEEE 1613 Non-operational Height of fall = 100 mm RedFox 5728 Series...
  • Page 26 RedFox-5728-(E-)F4G variants: IP40 Cooling Convection Pollution degree EN/IEC PD2 Macro and Micro Environment 61010-1 Overvoltage EN/IEC OVC III category 61010-1 Insulation class EN/IEC Class I equipment 61010-1 Location EN/IEC Indoor use 61010-1 Table 9. Environmental and mechanical conditions RedFox 5728 Series...
  • Page 27: Revision Notes

    Declaration of Conformity updated, 3.4.3 Console port updated, 3.6 Dimensions updated, 5.1 Interface Specifications, Ethernet TX table updated, Console table updated, 5.2 Type Tests and Environmental Conditions updated Rev. A 2020-11 First version of the user guide RedFox 5728 Series...
  • Page 28 Westermo • Metallverksgatan 6, SE-721 30 Västerås, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6641-25001 REV B 2021 04 Westermo Network Technologies AB, Sweden...
