4 Connecting the Router
4.2.5.2 Asynchronous serial ports
The optional Asynchronous Serial Port feature requires additional hardware. Some models are equipped with two ex-
tra serial ports, which are provided through two RJ-45 connectors on the Regesta Smart PLC. Please note that the
functionality of these serial ports may vary on certain models. To determine if your device offers serial ports and to
obtain information about their type, please refer to the label.

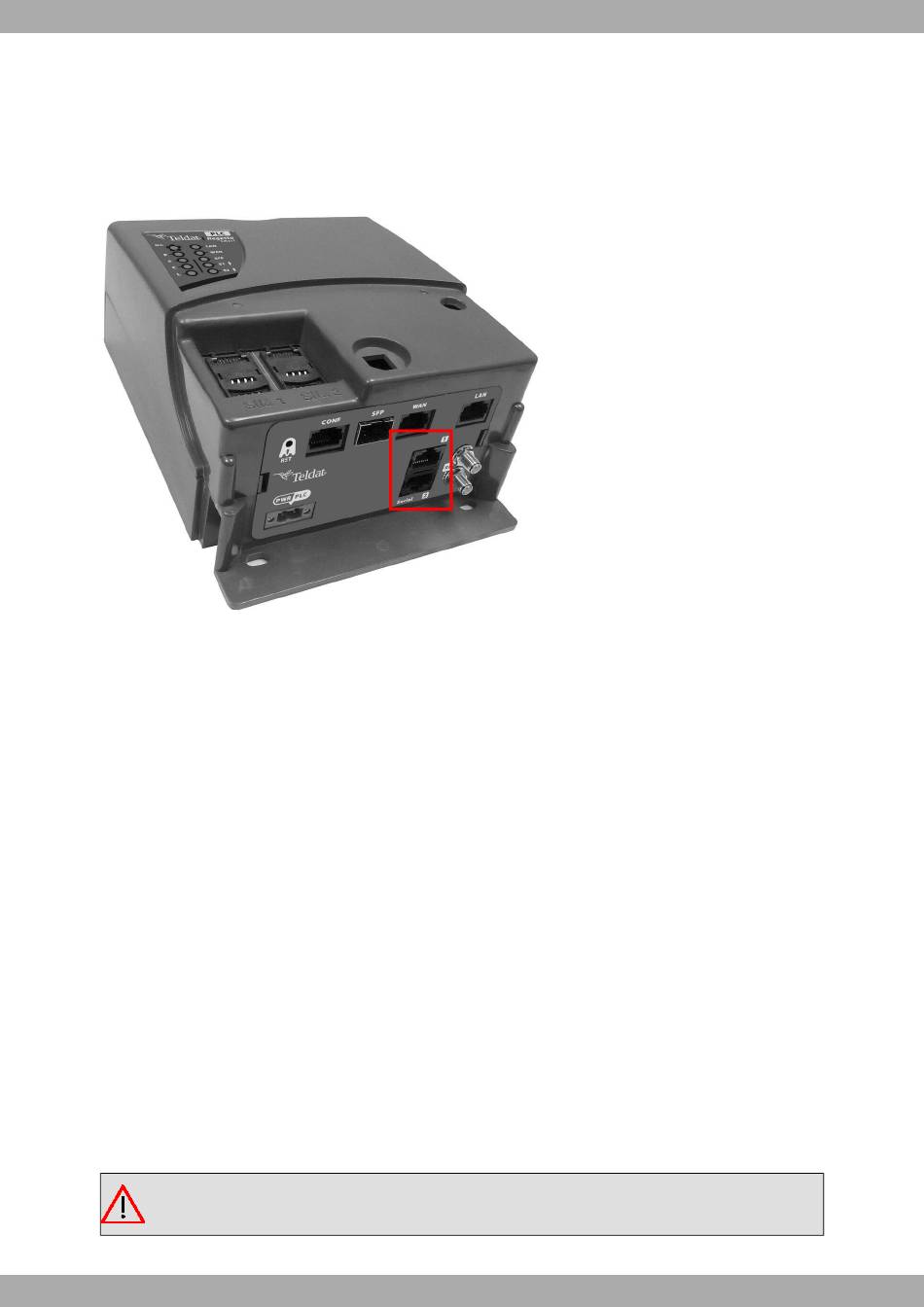

Asynchronous Serial connectors
Fig. 20:
These serial ports can support RS-232 and/or RS-485/RS-422, and possess the following characteristics:
4.2.5.2.1 RS-232 serial port
4.2.5.2.2 RS-485/RS-422 serial port
4.3 Installing the SIM card
The Regesta Smart PLC features a Wireless WAN interface that requires at least one SIM card to be inserted for op-
eration. However, in certain countries, CDMA services provided by some operators do not require the use of SIM
cards.The Regesta Smart PLC features two SIM trays placed beneath the protective case, conveniently labeled
SIM1 and SIM2. For setups that utilize only one SIM card, we advise inserting it into the SIM1 tray.
Warning
Never install the SIM cards while the device is powered on.
24
(1) DCE port.
(2) A maximum speed of 115200 bps.
(3) Control signals available. For more details on the pin assignment, please
refer to
RS-232 serial port connectors
(4) RJ-45 connector.
(1) 2/4 wires configurable through software.
(2) Bus termination configurable via software. For more details on the pin as-
signment, please refer to
(3) A maximum speed of 115200 bps.
(4) RJ-45 connector.
on page 34.
RS-485 serial port connectors
on page 35.
Teldat S.A.
Regesta Smart PLC
