Multi standard seri-
S2
al interface 2
Please note that certain LEDs may behave differently depending on how the device is configured.

2.4.2 Connector panel

To access the connector panel, you will need to remove the protective case that covers it. For detailed instructions
on how to remove or install the protective cover, please refer to
.

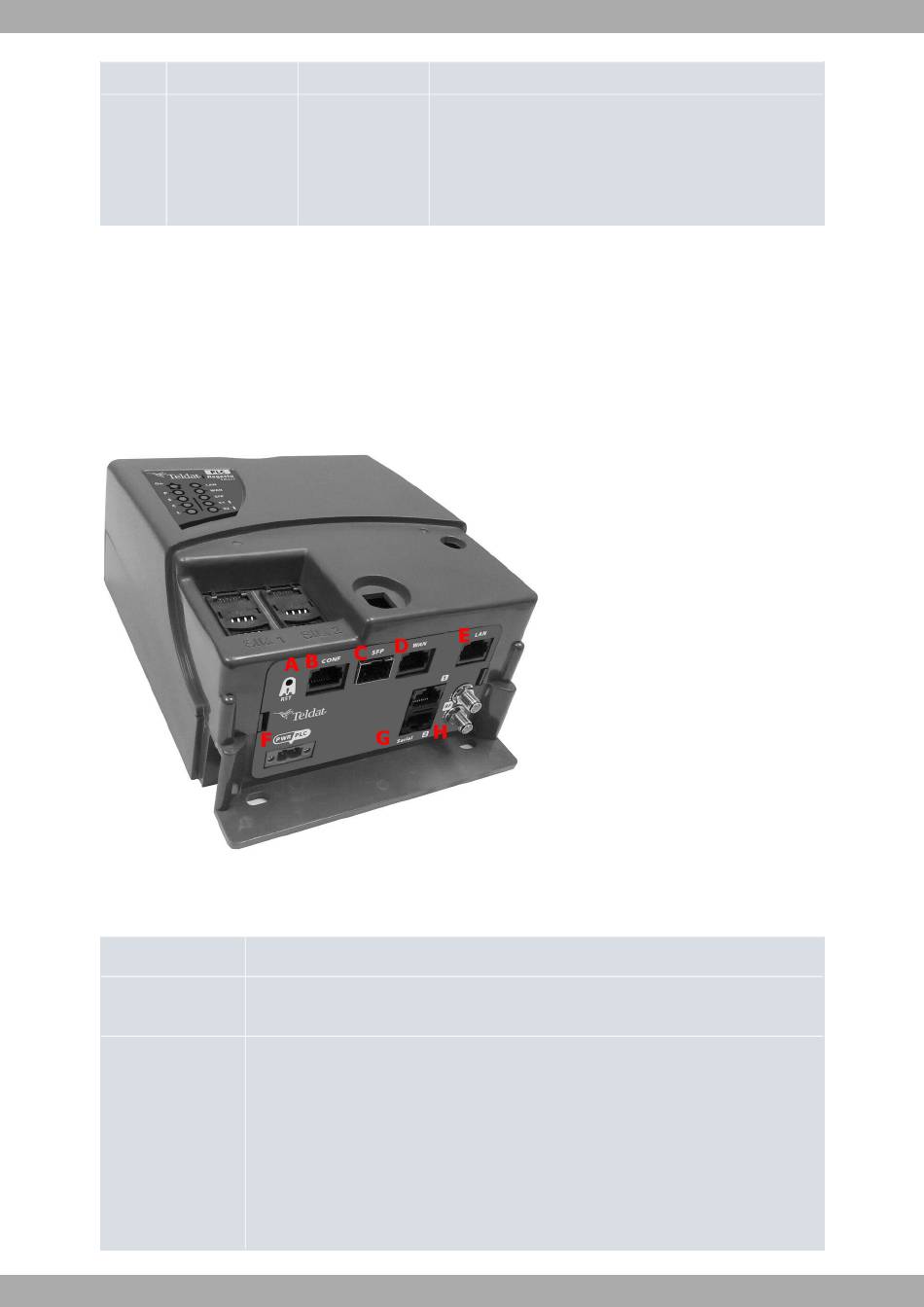

The figure below depicts the connector panel, which encompasses all the connectors found on the Regesta Smart
PLC router.
Connector Panel
Fig. 5:
The connector panel elements are as follows:
Front Panel Elements
Item
A
B
Regesta Smart PLC
Off
Green
Description
RST. Reset button. For further details on the functionality of the reset button, please see
RST button on page 26.
CONF. RJ-45 connector providing access to the device's local console for configuration and
monitoring purposes. (This connector can also be used as an RS-232 asynchronous DCE
serial port.)
For more information about the CONF connector, please refer to:
- Console connector as serial port (CONF connector)
- Configuration connector on page 34.
- Configuration interface on page 37.
• Flashing: Data is being transferred.
Serial port 2 is disabled or not initialized.
Port is in active state, shows interface activity:
• Steady: Data is not being transferred.
• Flashing: Data is being transferred.
Removing/Installing the connector protector
on page 23.
