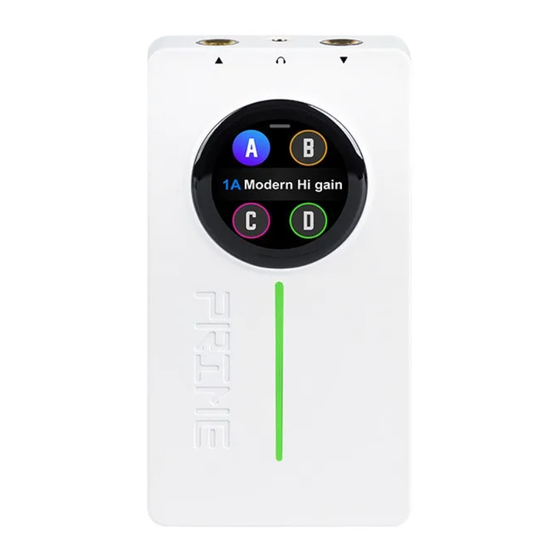

- Page 1 PRIME P2 INTELLIGENT PEDAL Portable Touch Screen Multi-Effects Unit Owner’s Manual...
-
Page 2: Table Of Contents
Screen Lock ............................7 Auto Shutdown ............................ 7 Charging ............................... 7 Footswitch control ..........................8 MIDI Control ............................8 MOOER PRIME APP ..........................9 Download ............................. 9 Connection ............................9 User interface ............................9 Effect Page / Preset Editing ........................10 Preset selection ..........................10 Effect Chain ............................ - Page 3 Auto-Lock ........................... 14 Bluetooth Rename ........................14 Tools ............................... 14 Drum Machine / Metronome .....................14 Tuner ............................14 Looper ............................15 MOOER STUDIO SOFTWARE ........................16 Firmware update ..........................16 WIRELESS FOOTSWITCH .........................17 Pairing ..............................17 Preset Switching ..........................17 Tap Tempo ............................18 Tuner ..............................
-
Page 4: Precautions
Please do not drop the unit, and avoid heavy blows. Please do not modify the unit without authorization. Should repairs be required, please contact the MOOER support team for more information. Always turn the device and connected devices off before setting up connections to avoid ... -
Page 5: Features
Easy configuration of an effects chain without complicated user interfaces Large 1.3” touch screen allows quick preset changes and access to the tuner directly on the device Based on MOOER’s unique MNRS technology, allowing for high-quality digital amp models and effects in a small format ... -
Page 6: Layout
LAYOUT 1. Input jack: 6.35 mm (1/4”) TS jack. Connect your instrument cable from your guitar here. 2. Output jack: 6.35 mm (1/4”) TRS jack. Use an instrument cable to connect to your amplifier. You can use a TRS 2 x TS splitter adapter to achieve stereo output. 3. -
Page 7: Connections
CONNECTIONS Normal Tipp for stereo output: P2 supports stereo output using a 1-in-2 (TRS 2 x TS) adapter cable. Setup for OTG recording via USB... -
Page 8: Instructions
INSTRUCTIONS Connect your instrument and amp The P2 can be wired like any other effect pedal. Connect your guitar to the INPUT (1) of the P2 with an instrument cable; use another instrument cable to connect the OUTPUT (2) to your Amp or other effects. You can put other effects before or after the P2. -
Page 9: Bluetooth Playback
Pairing: Open the Bluetooth menu of your mobile device, search for a new device, select “Prime P2 Audio” and confirm the connection. USB-Audio playback When connected to a Smartphone, computer or tablet via a USB-cable plugged into to the USB-C port on the side, the P2 supports audio playback from the connected devices. -
Page 10: Headphones / Headset
(not included), a power bank or the USB-A port of a computer. The Prime P2 can be used while it is being charged. The power source must provide 5 VDC / 2 A (10 W). The charging time for a full charge is about 3 hours*. -
Page 11: Footswitch Control
The device may get warm during charging or regular use. This is normal and does not affect the functions. Pease avoid using the device in high-temperature environments. Footswitch control The Prime P2 supports the MOOER F-series wireless footswitches (purchase separately). The footswitch can be used to control several functions of the P2 such as Preset and Bank selection, Tuner access, Drum Machine and Looper control or Tap-Tempo input. -
Page 12: Mooer Prime App
MOOER Tone Cloud and activate and control tools like Tuner, Drum Machine, Metronome and Looper. Download Please download the MOOER Prime App from Google Play Store, Apple App Store or the official MOOER Download-Support website and install it on your mobile device. Connection Turn the P2 on by long pressing the Power button. -
Page 13: Effect Page / Preset Editing
Effect Page / Preset Editing Preset selection The P2 comes pre-configured with 80 sample presets that users can adapt to their own taste. The currently active preset is shown below the page tabs. Tap on the preset name to open the preset list and select another preset. The presets are ... -
Page 14: Saving A Preset
Saving a preset Tap the “SAVE” button behind the preset name to re-name and save the preset. You will be prompted to specify a name and a storage location. Edit the name to your liking. If you upload your preset to the cloud, it will be published under this name. -
Page 15: P2 Menu
P2 Menu Click to log in / Account info Please register a MOOER account if you are using the PRIME App for the first time. As a registered user you can download shared presets from users worldwide or upload and share your own sounds with other users. -
Page 16: Setting
All recorded loops will be deleted. Use the MOOER Studio software to backup your settings before performing a reset or update. Display brightness This setting controls the brightness of the touch screen display on the P2. Adjust the brightness to... -
Page 17: Auto Shutdown
Auto Shutdown The P2 features power-saving mode. If the pedal is idle (no input signal) for the time specified in this setting, it will automatically shut down in order to save battery life. Long-press the Power button on the P2 to re-activate it. Auto-Lock Use this setting to automatically lock the touch screen on your P2 against accidental setting changes. -
Page 18: Looper
Looper You can use the Looper to record loops of up to 8 minutes (480 seconds). Adjusts the playback volume. Starts a loop recording and starts overdub for the second layer of the loop. NOTE: When you tap this button for the first time, the recording will not start before the first signal is detected at the input. -
Page 19: Mooer Studio Software
Firmware update NOTE: Use the MOOER Studio software to backup your settings before performing an update. Press the side button for 12 - 15 seconds until the LED bar starts blinking. Connect the P2 to your PC using the included USB-C to USB-A cable. -
Page 20: Wireless Footswitch
WIRELESS FOOTSWITCH The Prime P2 supports MOOER F4 wireless footswitches (to be purchased separately). The footswitch allows users to control Preset Switching, Drum Machine, Looper and Tuner and it provides a Tap Tempo function. Please consult the manual for the F4 footswitch for battery specs and charging requirements. -
Page 21: Tap Tempo
Tap Tempo If a Delay effect is active for the currently selected preset, you can tap the footswitch for the active preset once to activate the Tap-Tempo mode and control the delay time. NOTE: The Tap-Tempo mode is indicated by a dots being shown behind the letters and numbers in the footswitch screen (e.g. -
Page 22: Controlling The Drum Machine
B: STOP / Hold to CLEAR The B LED is lit when Recording/Playback is stopped and off, after the track was cleared. Song-selection Long press footswitch C to enter the Song selection mode. Press footswitch A or B to scroll up/down between songs The screen shows the currently selected Song (S1 = Song 1 / S0 = Song 10) and the A and B LED are flashing. -
Page 23: Specifications
SPECIFICATIONS Input: 6.35 mm (1/4”) TS, 2 MΩ Output: 6.35 mm (1/4”) TRS, 100 Ω Headphone: 3.5 mm (1/8”), 32 Ω Screen: 1.28” Touch Screen USB: Type C for charging or OTG recording Bluetooth version: Bluetooth: Bluetooth audio playback and App control Wireless control: 2.4G Wireless footswitch:... - Page 24 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
