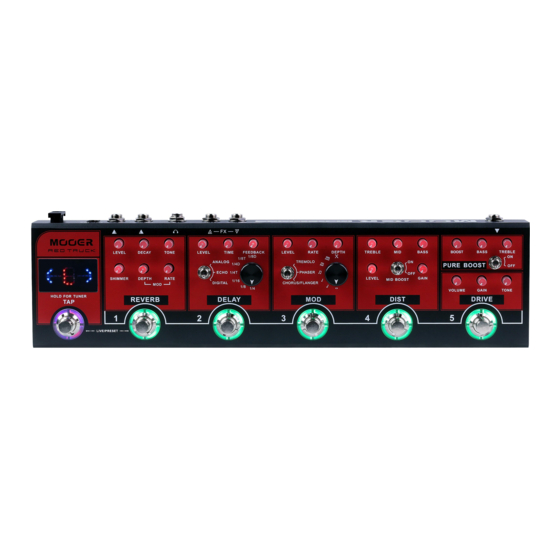

- Page 1 Combined Effects Pedal...
- Page 2 Precautions Power Supply Use the correct AC outlet to connect the power adapter. Use a power transformer with a negative external voltage of 9V (± 10%) ≥300mA, otherwise it will cause equipment damage, fire or other problems. When unused or thunderstorms please unplug the power supply.
-
Page 3: Main Features
Footswitch 3: MOD on/off in LIVE mode. Preset 3 in PRESET mode Footswitch 4: DIST on/off in LIVE mode. Preset 4 in PRESET mode Footswitch 5: DRIVE on/off in LIVE mode. Preset 5 in PRESET mode DISPLAY SCREEN: Displays the current operation mode of red truck. Displays the tuner when activated... -
Page 4: Operation Modes
Operation Modes Redtruck has two different operation modes. LIVE MODE and PRESET MODE To change operation mode, simultaneously press and release TAP + Footswitch 1 Live Mode In this mode Redtruck operates like a traditional pedalboard. Each footswitch will switch it’s respective effects module on and off. The DISPLAY SCREEN will display <L>... -
Page 5: Effect Modules
Effect Modules Red truck has 6 stompbox style effect modules and a built in precision tuner. 1.PURE BOOST: Based on one of MOOER’s most popular and useful micro pedals. The Pure boost is an analog circuit which can provide up to +20 Db of clean boost with a natural and dynamic response to the touch. - Page 6 MOD RATE: Adjusts the speed of reverb modulation effect TUNER: Red Truck has an accurate built-in guitar tuner. Hold down the TAP foot switch to mute your output and activate the tuner. Press the TAP...
-
Page 7: Tap Tempo
Tap Tempo TAP: Press and release this foot switch several times to create a Tap Tempo. Tap tempo can control both the delay time and modulation rate simultaneously or either of these two effect modules independently. The light surrounding the TAP foot switch will illuminate a different colour to indicate what it is controlling. - Page 8 “4 cable method” which will put the drive modules in front of your amplifiers input and the modulation, delay and reverb modules into your amplifiers effects loop. Connect your guitar to the input of your red truck Connect SEND of the Redtruck to your amplifiers input Connect your amplifiers “effects send”...
- Page 9 Connect one output of the ABY box to the input of AMP Dry Connect the other output of the ABY box to the RETURN of Red truck Connect the OUTPUT of Redtruck to the input of AMP Wet L(see diagram) If you have a 3rd amplifier you can use both stereo outputs of Redtruck to make a...
- Page 10 CONNECTIONS 1.INPUT Connect your instrument to this input using a standard 1/4” jack cable 2.FX LOOP Refer to the ‘USING THE FX LOOP’ section of this manual for more details 3.CAB SIM OUTPUT Connect to this output using a mono or stereo 1/4”jack cable This provides an output with integrated speaker cabinet simulation for connecting headphones or Direct to your PA system or recording console 4.OUTPUT...
-
Page 11: Technical Parameters
Technical Parameters Input: 1/4’ signal input audio interface (impedance 2M ohms) Output: 1/4 "left and right channel audio interface x2 (impedance 100 ohms) Sampling rate: 44.1K Sampling accuracy: 24bit Power supply: DC 9V ≥300mA power adapter (negative inside positive) Size: 370 mm (D) X 96 mm (W) X 51 mm (H) Weight: 1200g Owner’s Manual,Carry Case Attachment:... - Page 12 MOOER AUDIO CO.,LTD www.mooeraudio.com Part No:620010668...
