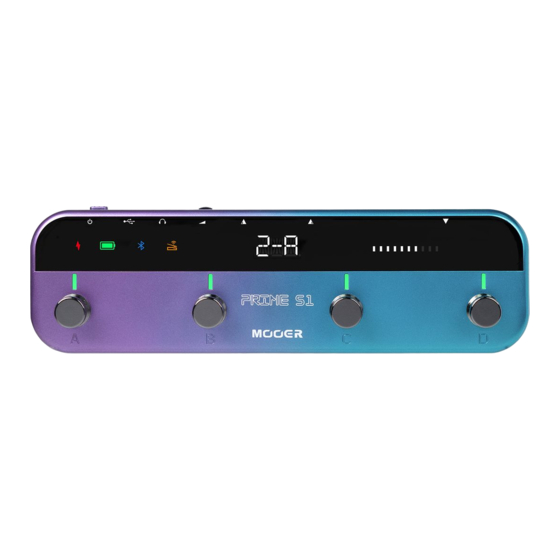

Mooer PRIME STOMP S1 Owner's Manual

Mooer PRIME STOMP S1 Owner's Manual

Intelligent pedal
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual

Advertisement

loading

Related Manuals for Mooer PRIME STOMP S1

Summary of Contents for Mooer PRIME STOMP S1

  • Page 1 Owner’s Manual...

  • Page 2: Table Of Contents

    Content Precautions ..................... 1 Features ......................3 Layout ......................4-5 Instructions ....................6-11 Specifications ....................12...

  • Page 3: Precautions

    Precautions PLEASE READ CAREFULLY BEFORE PROCEEDING Power Supply  Please use a power supply that meets UL, CSA, VED, or CCC standards.  Please use the power supply that meets manufacturer's power requirement.  Please unplug the power supply when the device is turned off or during a thunderstorm.
  • Page 4 Location To avoid deformation, discoloration, or other serious damage, do not expose this unit to the following conditions:  Direct sunlight or other heat sources  Magnetic fields  Excessively dusty or dirty locations  Strong vibrations or shocks  High humidity or moisture Cleaning Clean only with a soft, dry cloth.

  • Page 5: Features

     Specialized App for mobile device available  MOOER Cloud can help users to share and download tones easily  The S1 is an intelligent platform and can be transformed into other effect modules by downloading and installing different firmware...

  • Page 6: Layout

    Layout Guitar input jack Left/right main output jack USB port Power switch Master volume level control Headphone output...
  • Page 7 Charging Rear panel indicators Battery indicator indicator screen Input level indicator Bluetooth indicator Display screen A/B/C/D footswitches...

  • Page 8: Instructions

    Instructions • Start Power the S1 on, the I/O indicator will illuminate, please set up the connections according to the diagram. Guitar Headphone Power supply / mobile phone or Amplifier / audio interface tablet...
  • Page 9 • Power On/Off and battery management Power On/Off: Toggle the power switch to On/Off to power the device On/Off. Battery management: When the device is ON, the battery indicator illuminates. When the battery is about to run out, the battery indicator will blink in RED. Please charge the device via the USB port.
  • Page 10 • Drum machine/Looper Press footswitches B + C to switch between preset control mode and looper mode. (Preset mode / drum machine + looper mode) • Looper REC: Press footswitch A (the footswitch LED will blink slowly) to enter recording standby mode.
  • Page 11 DELETE: Press and hold footswitch B to delete the recorded track (the LED of footswitch A & B will be Off). The display will show “LD”. • Drum machine Play/stop: Press footswitch D to start / stop the drum machine. TAP: Press footswitch C to enter TAP mode (the footswitch LED will blink, and the tempo of blinking syncs with the drum machine speed).
  • Page 12 • Sync mode Syncing can be activated / deactivated in the mobile app. Sync Off: When the sync mode is Off, looper and drum machine will not be synchronized. The looper will start to record as soon as an input signal is detected, the drum machine will not start automatically.
  • Page 13 Bluetooth • Please open the Bluetooth menu of your mobile device, find S1 and confirm the connection. The S1 can then be used to play audio tracks from the mobile device via Bluetooth, and the Bluetooth indicator will illuminate. • USB-OTG Prime S1 supports direct USB recording using a mobile phone/tablet via OTG cable.

  • Page 14: Specifications

    Specifications Input: 1/4” mono audio jack, 2 MOhm Output: 1/4” mono audio jack, 100 Ohm Headphone output: 1/8” stereo audio jack, 32 Ohm USB cable: USB-C to USB-A cable Bluetooth version: Battery capacity: 2000 mAh Battery life: 4.5 hours Charging requirements: DC 5V/2A Wireless system: 2.4G Weight:...
