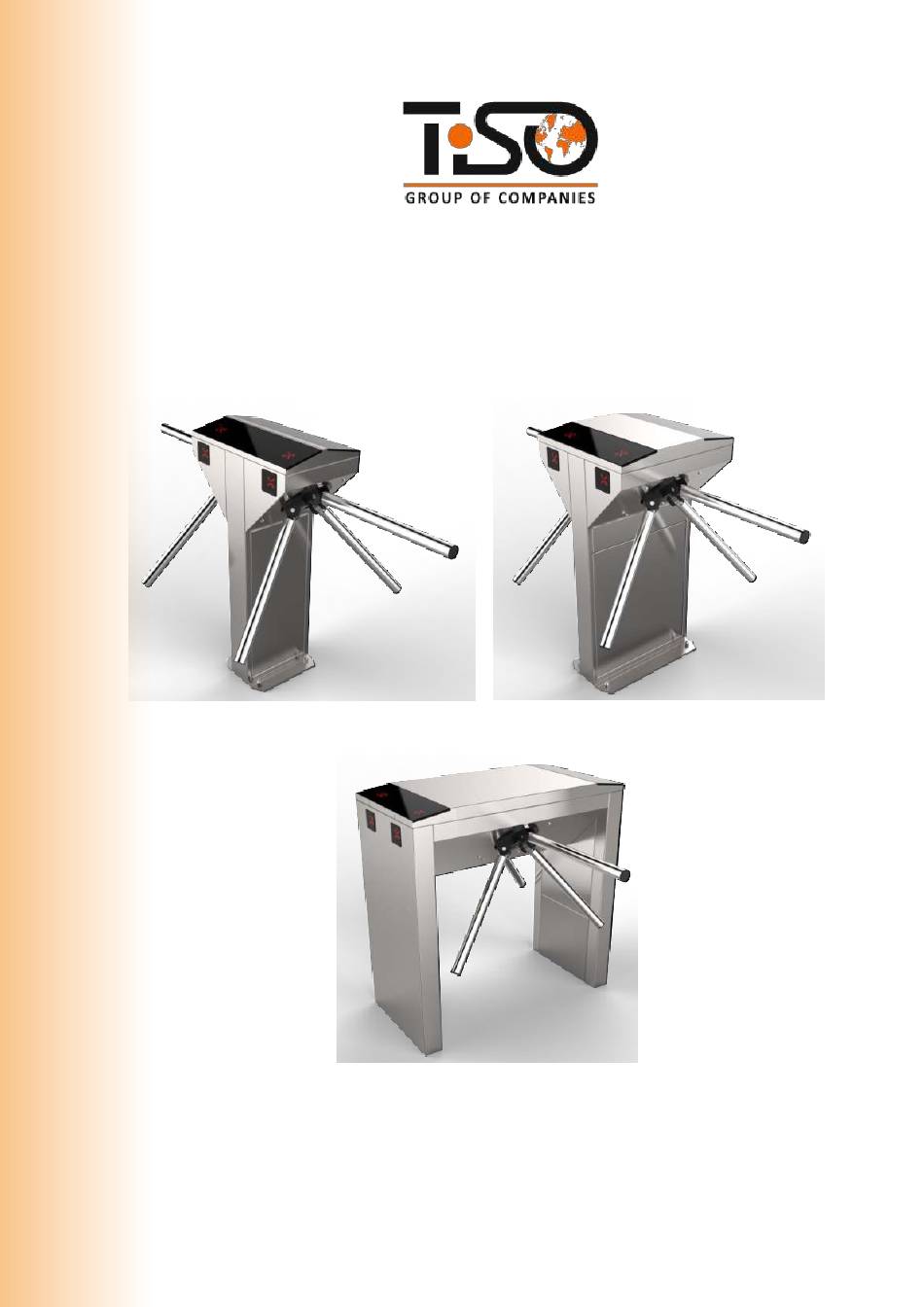

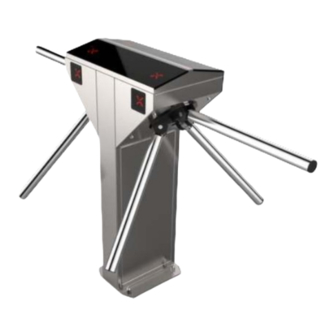

- Page 1 "TiSO-PRODUCTION" LTD SERVO-DRIVEN TRIPOD TURNSTILES series of CENTURION-M AUIA.097-10 BASTION-M AUIA.095-10, SKULL-M AUIA.096-10 TWIX-M AUIA.137-10 CENTURION-М TWIN BASTION-M TWIN TWIX-M TWIN OPERATION AND INSTALLATION MANUAL Combined, rev.1.3.2 2024 UKRAINE...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ................................. 3 WARNINGS TO THE CUSTOMER ON SAFE OPERATION OF THE TURNSTILE ......4 GENERAL WARNINGS ..........................4 1. DESCRIPTION AND OPERATION ........................5 1.1 General Information and Purpose......................5 1.2 Specifications ............................6 1.3 Configuration and Scope of Delivery ..................... 6 1.4 Design and operation .......................... -
Page 3: Introduction
INTRODUCTION This Operation Manual (hereinafter referred to as OM) covers the servo-operated turnstile (hereinafter referred to as the "turnstile"). The Operation Manual contains information about design, specifications, installation for proper operation and maintenance of the turnstile. ТU U 28.9-32421280- This Operation Manual is prepared in compliance with the specification requirements 005:2018. -
Page 4: Warnings To The Customer On Safe Operation Of The Turnstile
WARNINGS TO THE CUSTOMER ON SAFE OPERATION OF THE TURNSTILE These warnings are designed for ensuring of safety during operation of the turnstile to prevent violation of safety characteristics by improper installation or operation. These warnings are aimed at drawing attention of the customer to safety problems. -
Page 5: Description And Operation
1. DESCRIPTION AND OPERATION 1.1 General Information and Purpose. 1.1.1 Turnstile purpose: The turnstile is designed for arrangement of individual pedestrian access at access points of industrial enterprises, banks, stadiums, administrative facilities etc. driven by control signals of access control system (from keypad, proximity card readers) or manually (from wire control panel). -
Page 6: Specifications
1.2 Specifications Table 4 - Specifications Parameter name Parameter value Minimum traffic flow capacity in single access mode 50 person/min. Maximum access way width 600 mm Power supply voltage: 100 240 V~ 50/60 Hz - AC mains (primary) - DC power supply (secondary) 12 V Consumed power, no more than 110W... - Page 7 1.3.2 Turnstile scope of delivery (standard): Tripod turnstile (1pc) Hub with barrier rods (2 pcs) 2 pc Hub with barrier rods Control panel (1 pc) Anchors (6 pcs./ 4 pcs.) Data sheet For convenience of delivery the turnstile is Remote Control supplied ready-to-install with dismounted barrier rods.
-
Page 8: Design And Operation
1.4 Design and operation 1.4.1 Turnstile design 1.4.1.1 The turnstile body is a metal ware, which footing 10 (See Fig.1) is installed on an even surface by means of Redibolt anchors. The turnstile status is displayed by LED display boards 2, built in the turnstile body. The turnstile initial state is indicated by constantly lit red LED (See Fig.4): the turnstile access is locked in both directions. -
Page 9: Instrumentation, Tools And Accessories
1.4.2 Turnstile principle of operation 1.4.2.1 Turnstile operation modes: 1) single access in the direction “A” or “B”; 2) locking; 3) free access in the direction “A” or “B”; 4) "PANIC" mode; 1.4.2.2 In the initial state, when the turnstile is deenergized, barrier rods are locked from rotation and access is barred. -
Page 10: Description And Operation Of Controller As An Integral Component Of The Turnstile
puncher; concrete drills (according to diameter of anchors included in the turnstile scope of delivery); extension cord; kit of end and pin wrenches; kit of hexagons; kit of screwdrivers; hammer; multimeter (tester); measuring tape marker; pliers, side cutters; Fig.8- Tools and accessories for installation builder's level. - Page 11 Waiting for a permission command, the controller holds the rotor in its original position. After permission command is sent, controller via electromagnet "-MG1" and "-MG2" unlocks the rotor in one direction and with a light push of the rotor with your hand in the direction of passage through the outputs "MOT1"...
-
Page 12: Turnstile Controller Рсв.112.21.20.01
1.6.2 Turnstile controller РСВ.112.21.20.01 1.6.2.1. Purpose of controller РСВ.112.21.20.01 The controller is designed for acquisition of control commands from peripherals (control panel, access control system etc.), generation of feedback signals, the turnstile LED display control and the motorized mechanism controller control. The controller is assembled on board (104х68) and designed for installation inside the turnstile body or power supply box. - Page 13 Application of jumpers on the controller board PCB.112.21.20.01: Table 7 - Application of jumpers № State State value Description CONTROLLER PCB 112.21.20.01 Tripod Turnstile type INP 1 INP 2 INP 3 OPTO 1 195 / 196 OPTO 2 INP 4 Mechanism type OPTO 3 INP 5...
- Page 14 1.6.2.3. Description of operation The controller operates according to the program entered into microprocessor memory. The turnstile mechanism and LED displays are controlled according to control commands and status of rotor position sensors based on the logic downloaded into program. Control commands can be transmitted via RS485 (from control panel) or logical inputs (by closing and opening of inputs “INP1”...
- Page 15 AUTHORIZATION OF SINGLE ACCESS IN TWO DIRECTIONS Since the turnstile having one rotor can't rotate in two directions simultaneously, the controller can only unlock rotor in two directions and after access in one of directions is started, the reverse direction will be closed. The controller is switched to this mode if in the INITIAL STATUS it simultaneously acquires "TO BE OPENED A"...
- Page 16 Continued Table 9 OUT3 («DETECTION OF ХТ2/4 EXIT Signal is generated by controller ACCESS А ») 4) resistance of public key when rotor revolves from 64º to OUT4 («DETECTION OF (5÷7) Ohm; ХТ2/5 120º in the relevant direction EXIT ACCESS B») 5) active level of signal (Factory setting) –...
-
Page 17: Intended Use
2. INTENDED USE 2.1 Operational limitations 2.1.1 The product should be operated under the conditions specified in 1.1.4 of this document, while keeping the specifications given in section 1.2. FOLLOWING IS PROHIBITED: 1) TO USE THE TURNSTILE NOT FOR APPOINTMENT (see section 1 "DESCRIPTION AND WORK");... - Page 18 2.2.2 General layout of the turnstile access ways а) TWIX-М TWIN b) BASTION-М TWIN Fig.11 – Turnstile layout options (conditionally) Fig.12 – Tripod turnstile (single and double) layout (conditionally)
-
Page 19: Installation Procedure
2.2.3 Installation procedure: The turnstile installation procedure is as follows: 1) The package integrity to be checked prior to unpacking. If package is damaged, then damages to be fixed (picture to be taken, damage report to be made). 2) The turnstile to be unpacked and inspected for defects and damages as well as completeness to be checked according to the turnstile data sheet;... - Page 20 8) The rack door to be removed by turning the lock key (Fig.14) to access to the " «CENTURION-M TWIN » and «BASTION-M TWIN » tripod turnstile base fixation and service holes as well as terminal blocks. The lock pin (1) to be removed and the latch (2) to be opened by lifting it up to remove the rack lid (Fig.14 , View А).
- Page 21 WARNING: Cables to be pulled in corrugated or metal pipes; The length of cable free ends to be at least 1 m to provide their entry, termination and connection to the relevant terminals in the turnstile rack. The cable outlet point to be aligned with the hole on the turnstile mounting plate (Fig.15-17).
- Page 22 2.2.4 Adjustment of the locking position of the hub with barrier rods 1. On the electronic board of the magnetic sensor press the button and hold (not less than 1second and make sure that the force on the button does not bend the board);...
-
Page 23: Preparation For Use
2.3 Preparation for use 2.3.1 Commission guidelines Prior to the turnstile energization: 1) make sure of proper connection and good condition of all connecting cables; 2) the turnstile barrier rod turning area to be cleaned from foreign particles. When mains cable of power supply unit is connected to network the turnstile control mechanism are energized: barrier rods are locked from rotation in both directions barring access. -
Page 24: Contingency Actions
2.4 Contingency actions For emergency human escape (in case of fire, acts of God etc.) and enabling free access the turnstile to be unlocked from control panel by issuing the relevant command. Antipanic device to be used for full opening of access way. -
Page 25: Routine Maintenance
verification of the turnstile performance during manual control in the modes specified in Table 9 or as part of ACS when pendants, identification cards are used; verification of reliability of the turnstile screw joints and earthing connections - to be tightened, if applicable; ... -
Page 26: Post Repair Checkout
Continued Table 12 Check the wires The Control panel beeps The Control panel have not a Check the Control panel "Communication" communication with the controller Check the Controller Change the Controller/ Control panel Have no a communication with the Check the wires controller Does not work the indication Check the LED indicator... -
Page 27: Transportation And Storage
5. TRANSPORTATION AND STORAGE 5.1 Turnstile storage It is forbidden to subject the turnstile to jerks and impacts during storage. Transportation trolleys to be used for handling of the turnstile. In storage facilities there should not be aggressive gases and vapours causing metal corrosion. Air temperature during storage should not be below +50 С... -
Page 28: Annex А.1 Design, Overall And Installation Dimensions Of The "Сenturion-М Twin" Type Turnstile
Annex А.1 Design, overall and installation dimensions of the "СENTURION-М TWIN" type turnstile... -
Page 29: Annex А.2 Design, Overall And Installation Dimensions Of The Turnstile "Bastion-M Twin
Annex А.2 Design, overall and installation dimensions of the turnstile «BASTION-M TWIN»... -
Page 30: Annex А.3 Design, Overall And Installation Dimensions Of The Turnstile "Twix-M Twin
Annex А.3 Design, overall and installation dimensions of the turnstile «TWIX-M TWIN»... -
Page 31: Annex B. Control Panel Auia.114.02.00.00
Annex B. Control panel AUIA.114.02.00.00 1 – control panel housing; 5 – "FREE ACCESS" mode control button; 2 – "SINGLE ACCESS" mode control button 6 – "PANIC" mode control button; 3 – front plate; 7 – access direction LED display; 4 –... -
Page 32: Annex C. Servo-Operated Tripod Turnstile Wiring Diagram
Annex C. Servo-operated tripod turnstile wiring diagram CONTROL MECHANISM Control panel A UIA195.07.00.00 A UIA195.00.00.00 XP1 PCB +12V CONTROLLER SPEED CONTROLLER PCB 112.21.20.01 PCB 201.01.00.00 ANGLE 1 ANGLE 2 PANIC INP 1 ZERO 3 INP 2 IN 1 GRN 1 OPEN "A"... -
Page 33: Annex D.1 Wiring Diagram Of The Turnstile Connection To Access Control System (Acs) In Pulse Mode
Annex D.1 Wiring diagram of the turnstile connection to access control system (ACS) in pulse mode OPTO XT3.1 XT1.1 RESET OPTO1 Relay 1 Relay 2 XT2.1 Door contact 1 XT .1 Door contact 2 М + GB XT5.1 inp1 - "PANIC" inp2 - "TO BE OPENED A"... -
Page 34: Annex D.2. Wiring Diagram Of The Turnstile Connection To Access Control System (Acs) In Hold Mode
Annex D.2. Wiring diagram of the turnstile connection to access control system (ACS) in hold mode... -
Page 35: Annex D.3. Diagram Of The Turnstile Connection To Fire Alarm (Fa)
Annex D.3. Diagram of the turnstile connection to fire alarm (FA) OPTO XT3.1 XT1.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1 inp1 - "PANIC" inp2 - "TO BE OPENED A" in pulse mode. When command is issued entry is activated for 5 sec. inp3 - "TO BE OPENED B"... -
Page 36: Annex D.4. Wiring Diagram Of The Turnstile Connection To Fire Alarm System (Fas)
Annex D.4. Wiring diagram of the turnstile connection to fire alarm system (FAS) OPTO XT3.1 XT1.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1 OPTO XT3.1 XT1.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1... -
Page 37: Annex D.5. Wiring Diagram Of The Turnstile Connection To Control Panel
Annex D.5. Wiring diagram of the turnstile connection to control panel OPTO XT1.1 XT3.1 RESET OPTO1 XT2.1 XT .1 М + GB XT5.1... - Page 38 Manufacturer: LLC TiSO-PRODUCTION 14, Promyslova Street, Kyiv, 02088, Ukraine Phone: +38 (044) 291-21-11 Tel./fax: +38 (044) 291-21-02 E-mail: sales@tiso.global www.tiso.global SERVICE CENTER e-mail: service1@tiso.global Our equipment meets the requirements of European standards: EN ISO 12100:2010, EN ISO 14118:2018, EN 60204-1:2018,...
