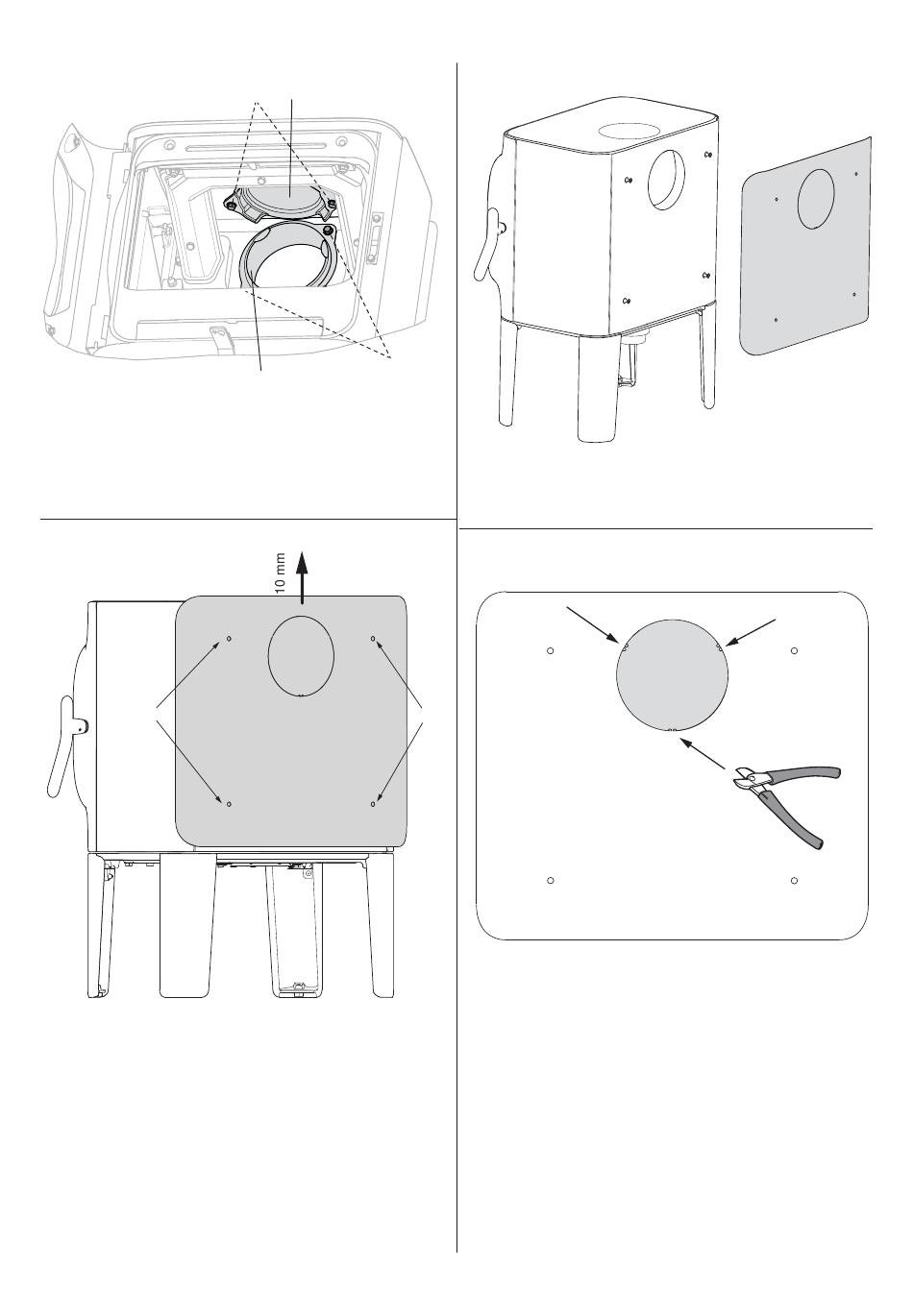

Fig. 24
5. Fasten the smoke outlet (A) to the rear outlet with the two
screws (C) from the inside of the burn chamber.
6. Fasten the cover (B) to the top outlet with the two screws
(D) from the inside of the burn chamber.
7. Fasten the exhaust defl ector (fi g. 21 A).
Fig. 25
A
8. Loosen, but do not unscrew the four screws (A) completely
and lift the convection plate up approx. 10 mm.
B
D
C
A
Fig. 26
9. Unhook the convection plate.
Fig. 27
A
10. Cut the rear outlet in the points (A) in the outlet and remove
the cover.
ENGLISH
A
A
A
