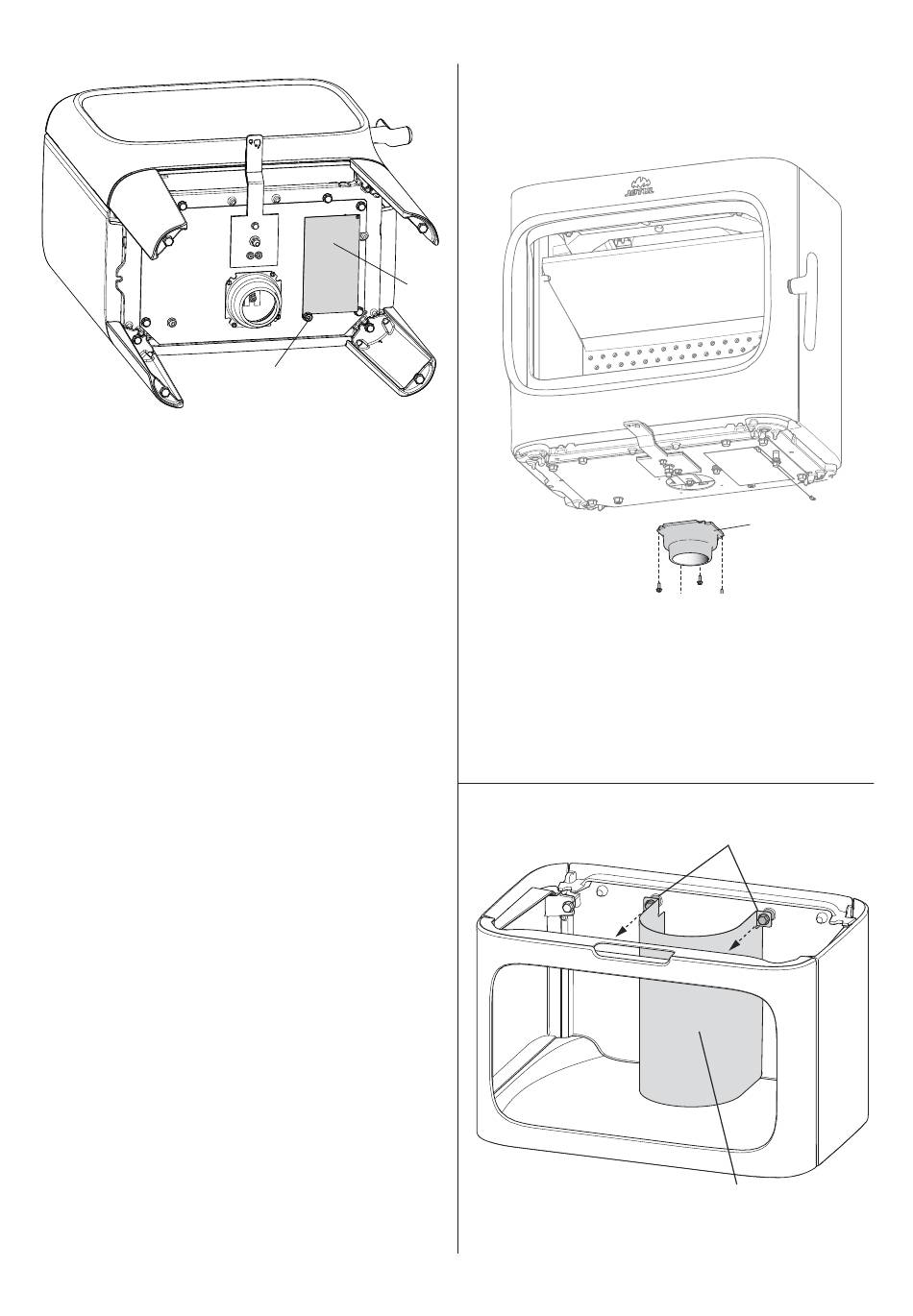

Fig. 6
1. Take the approval label (A) out of the ash pan and fasten
it with the nut (B), as displayed. The nut needs to be
tightened only with the fi ngers. NB: Do not cut off the
wire used for fastening the label.
A
B
4.2 Prior to installation - Jøtul F 305
with base
Fig. 7
2. If external air supply is not used, the external air connector
(A) can be unscrewed, if desired. Remove the four screws
used for fastening the external air connector and then the
connector itself. (For products with base: If necessary, you
can unscrew the heat shield beneath the burn chamber
in order to facilitate the dismantling of the external air
connector.
3. Install the convection plate back in its place after removing
the external air connector.
Fig. 8
1. First remove the outside air cover (A) by unscrewing the
screws (B).
ENGLISH
A
B
A
