ENGLISH
Outside air connection through bottom
plate in base

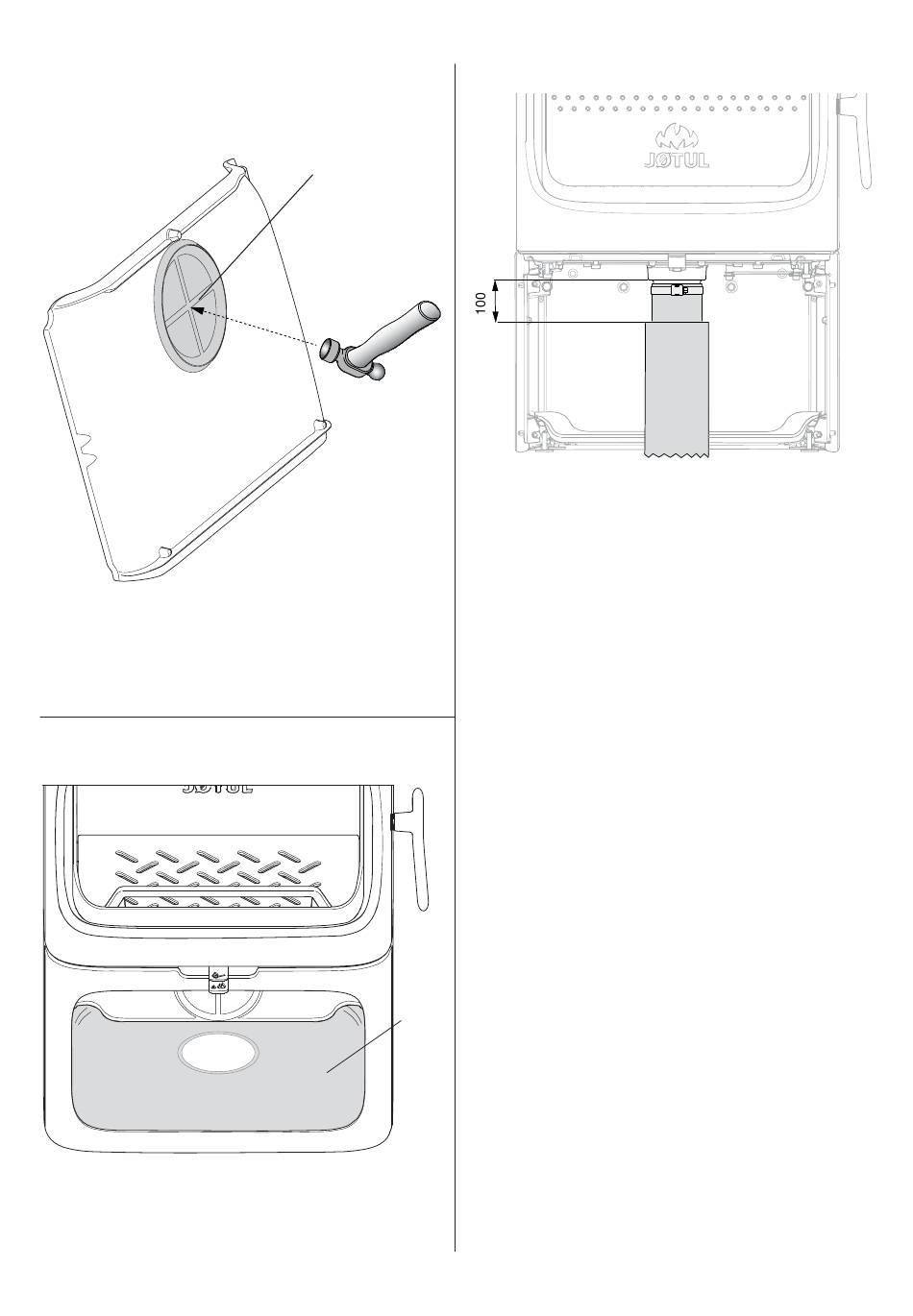

Fig. 15
1. Place a cardboard plate on the back of the bottom plate
before knocking out the cover (A) with a hammer in order
to prevent the pieces from damaging something around
them.
Fig. 16
2. Position the bottom plate in place again.
3. Place the oven in the position where it is supposed to be.
See fi g. 1 for correct placement when it comes to safety
distances.
12
Fig. 17
A
4. See the installation instructions that follow with the external
5. Attach the hose to the external air connector with a hose
A
air set.
clip to avoid using joints. The external air hose insulation
ends approx. 100 mm below the burn chamber.
