7.0 Servicing

Warning! Any unauthorised changes to the product are
illegal! Only original spare parts may be used!
7.1 Service/replacing parts in the burn
chamber
NB: Use tools with great care! The vermiculite plates may be
damaged if treated roughly.

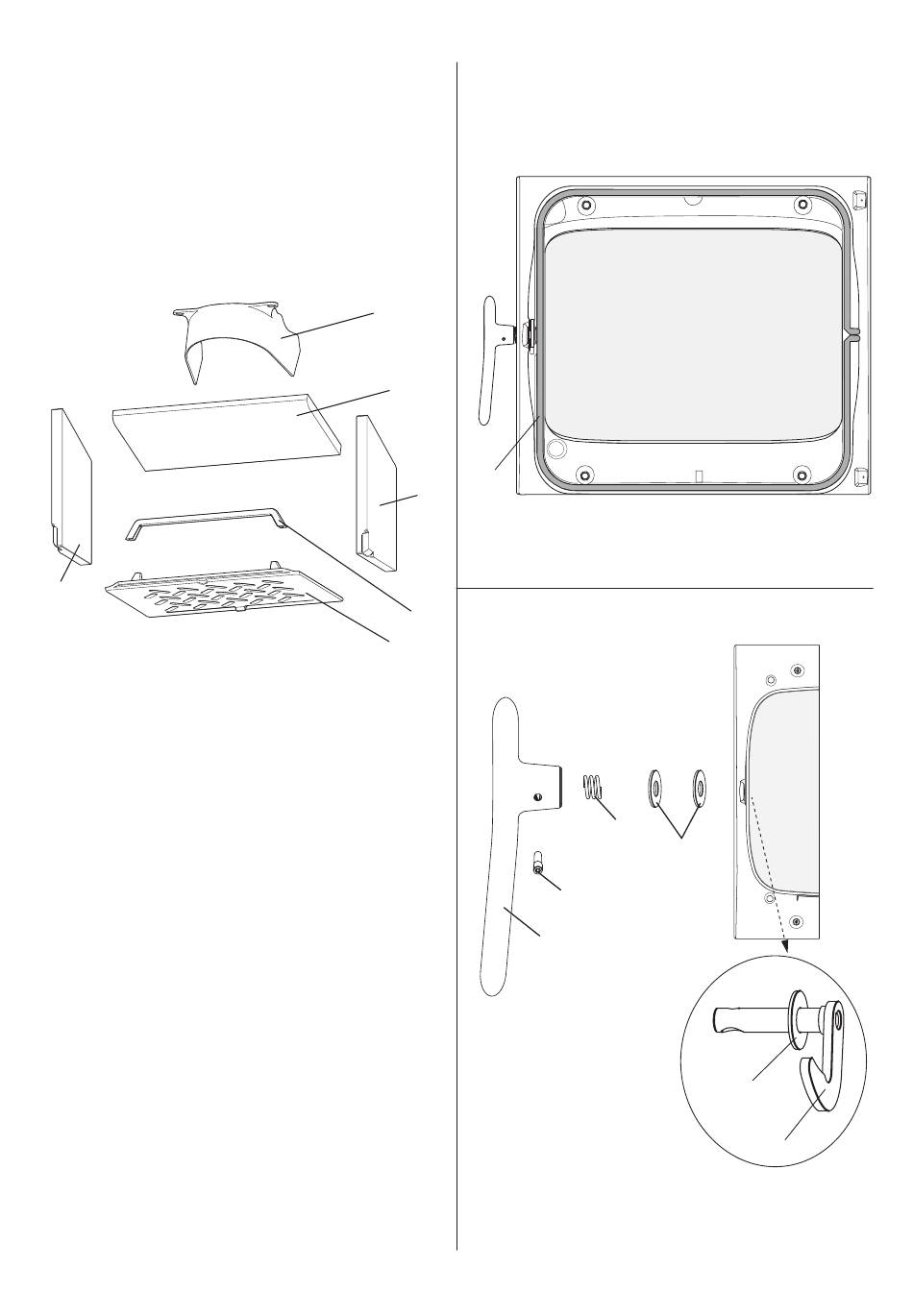

Fig. 35
F
1. Baffl e: Lift the rear edge of the baffl e (A) forward and
down and twist it out of the burn chamber.
2. The exhaust plate (B) can be dismantled by unscrewing
the 2 screws that holds the exhaust plate in place.
3. Log retainer (C): Lift the log retainer straight up and out of
the burn chamber.
4. Ash grate (D) – First remove the log retainer (C). Pull the
ash pan out and push the ash grate (D) up from below so
that you can take hold of it from the top side and lift it out
of the burn chamber.
5. Side burn plates (F): First remove the log retainer (C) and
the ash pan. Then lift the side plates out.
20
7.2 Replacing glass and gaskets in
the door
Fig. 36
B
A
A
F
1. Remove the gasket (A) placed on the inside of the door,
clean the gasket groove and glue on a new gasket.
C
Fig. 37
D
A
2. Unscrew the screw (B) and loosen the handle (A).
3. Take out the spring (C) and the two washers (D).
4. Take out the door hook (E) and the washer (F).
C
D
B
F
E
