ENGLISH

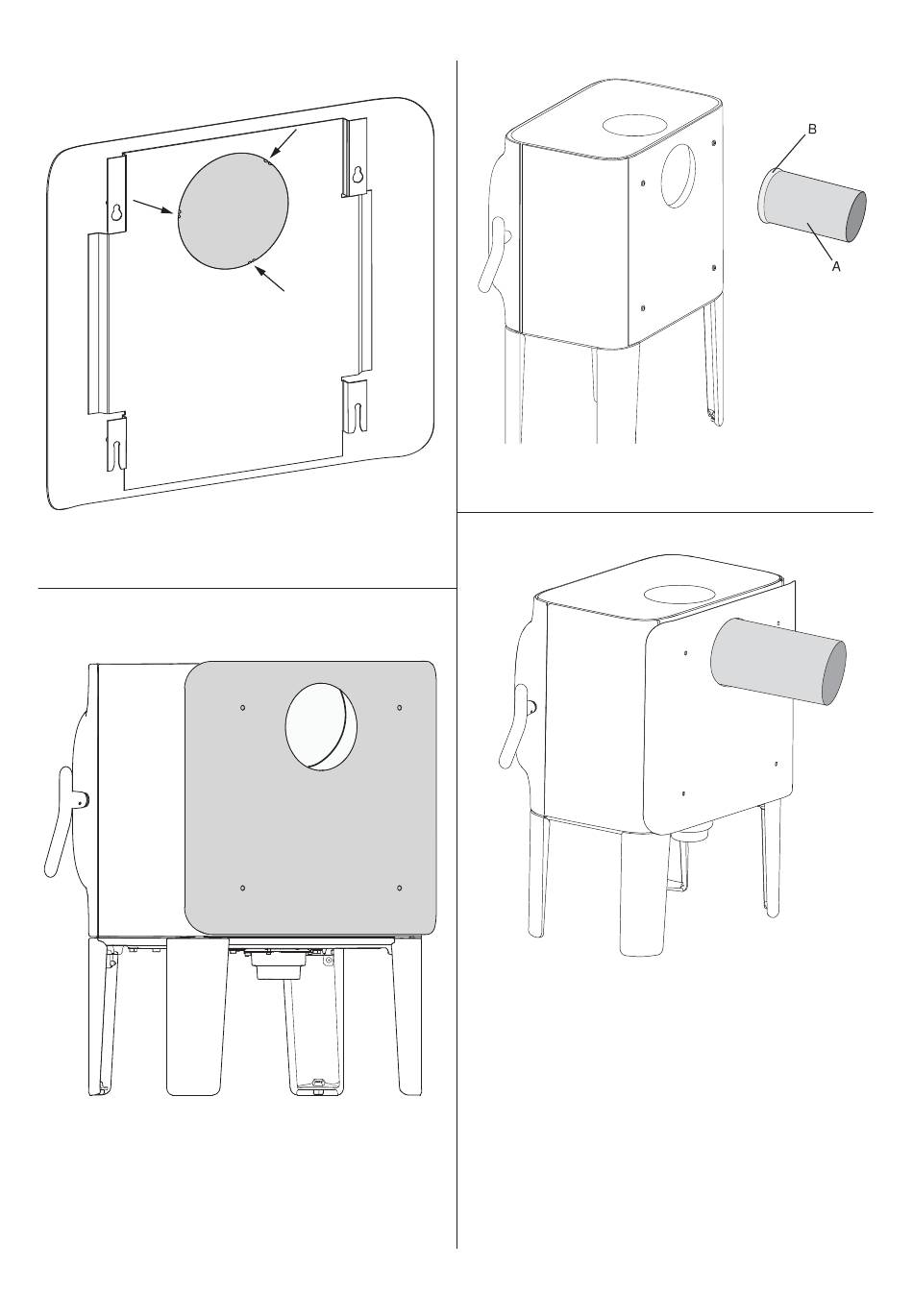

Fig. 28
A
11. Do the same to the inside part of the convection plate.
Fig. 29
12. Hook the convection plate to the product again and secure
using the same four screws.
16
A
A
Fig. 30
13. Place the gasket (B) on the edge of the fl ue pipe (A).
Fig. 31
14. Insert the fl ue pipe into the rear outlet.
NB: It is important for the joints/fl ue pipes to be sealed
completely. Air leaks may prevent them from operating
properly.
