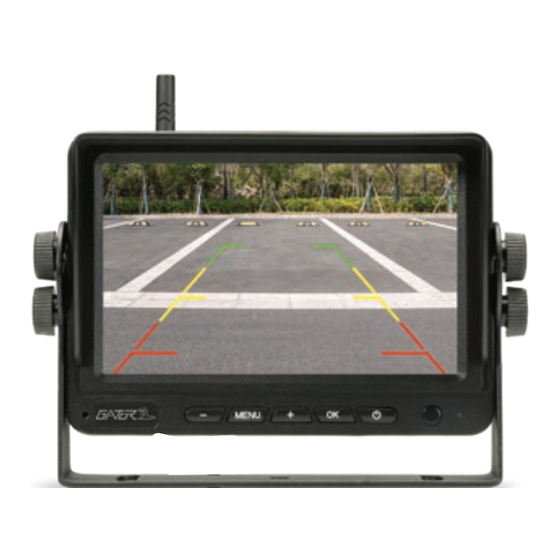

- Page 1 GRV5HDW USER MANUAL For more information on the Gator range go to our website gatordriverassist.com INCLUSIONS: 5" Wireless Monitor, Mounting Bracket With Adhesive Pad, Monitor Sunvisor, 720P HD Wireless Camera, 1.7M 10-32V Monitor Power Adaptor, 1.5M Monitor Power Cable & 2.5M Camera Power Cable.
-
Page 2: Table Of Contents
Contents Installation diagram .............2 Introduction.............3 Product information..............4 Menu operation (Main Menu)..........5 Menu operation (Language)..........5 Menu operation (Picture Flip) ..........6 Menu operation (Backlight Brightness).......6 Menu operation (Factory Default) ........7 Menu operation (System Information) ........7 Menu operation (Camera Pair) ...........8 Monitor specifications....... -
Page 3: Installation Diagram
Installation diagram Monitor Camera Option1 Option2 Socket Hardwired wired Powerwires Powerwires 10-32V DC car (10-32V Accessory) (Reversing light10-32V) accessory socket... -
Page 4: Introduction
Introduction Before using this unit, please read this instruction manual carefully. Take special care to follow the warnings indicated on the unit itself as well as the safety suggestions listed. Keep this instruction for future reference. WARNING: The wireless monitor reversing system is designed to be used with, not instead of other viewing aids in your vehicle. -
Page 5: Product Information
Product information 1. Monitor wireless antenna 2. Screen 3. Adjustable monitor angle mount 4. Camera wireless antenna 5. Guideline: On home screen quick press OK button 5. - Selection button 6. Menu button: Pess to enter/exit the menu settings 7. + Selection button 8. -
Page 6: Menu Operation (Main Menu)
Menu operation When the monitor is on, press the “MENU” button to enter into the menu settings. Press the “+ / -“ buttons to increase or decrease the parameter setting. Press the “OK“ button to confirm setting. Main menu Language/Picture Flip / Backlight Brightness / Factory Default / System Information / Camera Pair Language Press the “OK”... -
Page 7: Menu Operation (Language)
Menu operation Picture Flip Press the “OK” button to enter the picture flip interface and press the “+ / -“ buttons to turn mirror and flip function on/off Backlight Brightness Press the “OK” button to enter the backlight brightness interface and press the “+ / -“ buttons to adjust. -
Page 8: Menu Operation (Picture Flip)
Menu operation Factory Default Press the “OK” button to enter the factory default settings and press the “+ / -“ buttons to select yes or no to restore the monitor to default factory settings. System Information Press the “OK” button to enter the system information setting to show pairing camera and firmware information,... -
Page 9: Menu Operation (Backlight Brightness)
Menu operation Camera Pair Press the “OK” button enter to the camera pair settings. With the camera powered a text window will appear on screen saying “searching” . After a few seconds the camera name for pairing will appear. Press the “OK” button to confirm camera. -
Page 10: Menu Operation (Factory Default)
Menu operation Once successfully paired, a text window will appear saying “Pairing successful”, and the camera will activate. -
Page 11: Monitor Specifications
Monitor specifications Display Device..........Colorful IPS LCD Size..................5 Inch Interface...............Digital Resolution............800 x 480 (RGB) Luminance (Nits)............350 cd/m2 Contrast Ratio..............350:1 Power Consumption..............5W Video frame................30FPS Power Supply..............10-32VDC View Angle (LR/UD)....L 90, R 90, U 90, D 90 (Degree’s) Wireless Frequency........2400 ~ 2483.5MHz (2.4G hz frequency hopping technology Chipset Solution) Operating Temperature........-20˚C to +70˚C Weight..................280g... -
Page 12: Inclusions
1 x Wireless HD 720P reverse camera 1 x 2.5M Camera cable Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am –...
