USER   G UIDE   G DVR190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDVR190 and is the answer not in the manual?

Questions and answers

Related Manuals for Gator GDVR190

Summary of Contents for Gator GDVR190

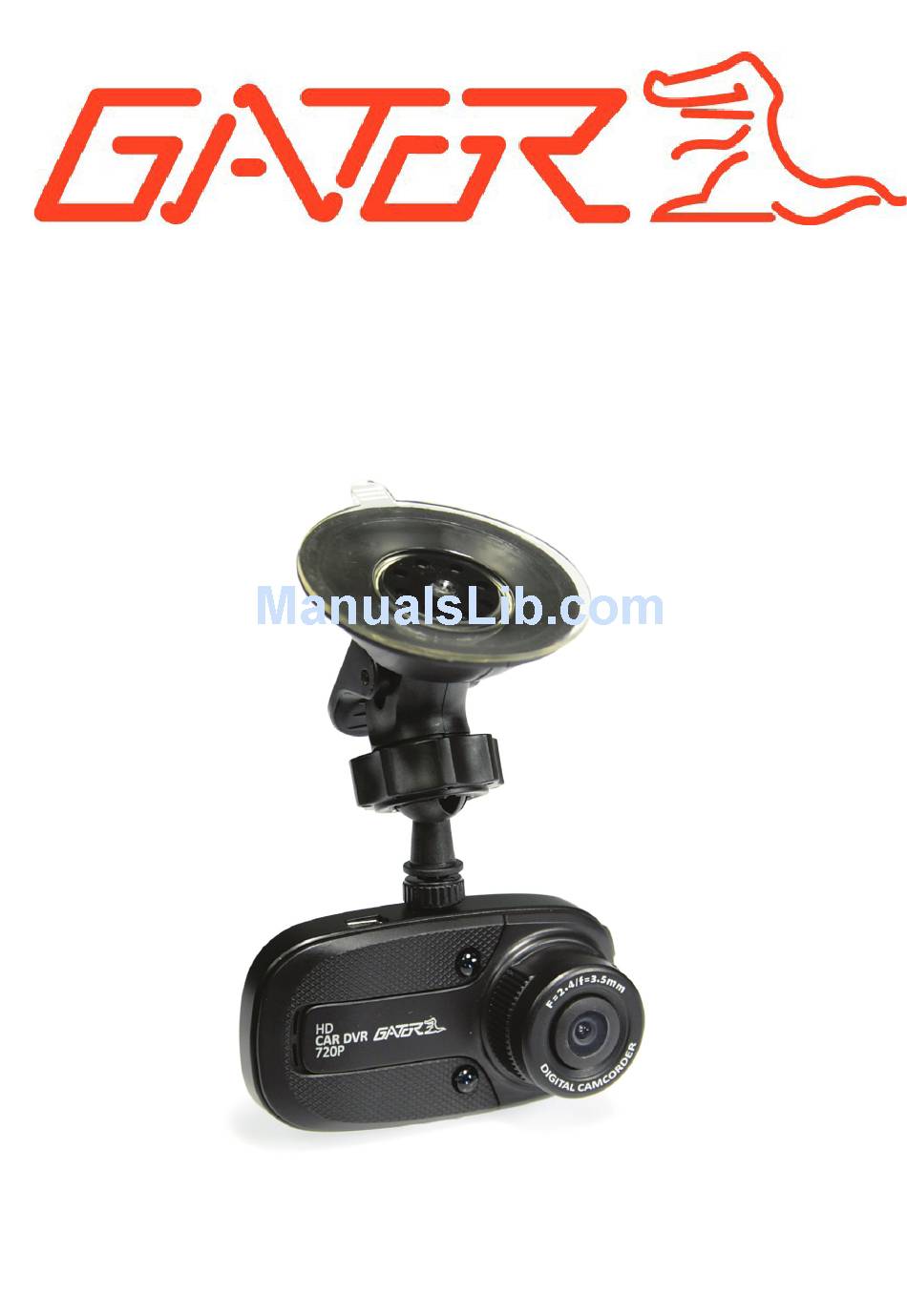

  • Page 1       USER   G UIDE   G DVR190  ...
  • Page 2 Introduction Thank you for purchasing the Gator HD Digital Video Recorder 190. This product is designed to provide high definition recording of your trips for security and evidence in the case of an incident. Being portable, this convenient and durable multi-vehicle driving recorder can be used in a variety of situations for video recording.
  • Page 3 Package Components:   Mounting Gator HD DVR Bracket USB to Mini USB Car Charger Optional Accessory:   4GB Class 6 Micro SDHC Card Hard Wire DVR Cable GDVR190 User Purchase Separately Guide Part number: GHWS (Replaces Car Charger) Purchase Separately)

  • Page 4: Product Structure

    Product Structure: 1   2   3   4   5   6   14   15   7   8   9   11   12   10   13   1) Mount Slot 9) Micro SD Card Slot 2) Mini USB Port 10) Mic 3) Up...

  • Page 5: Button Instructions

    Button Instructions Power/OK Button: When the DVR is turned off, press it once to turn it on. While the system is on, hold down the Power/OK button to turn it off. The Power/OK button is also used to start recording in video mode. Pressing the button again in video mode will stop the recording.
  • Page 6 Power Indication Light: When the device is turned on, a blue indicator will light up. When the device is recording, it will be flashing blue. When the device is charging, the light will glow red. Battery Charging Indication Light: After connecting the DVR through USB, the indication lamp will glow red meaning it is charging. The light will automatically turn off after fully charged.

  • Page 7: Video Mode

    Basic Instructions for Video and Photo Operation Powering on and off the device: To turn on the DVR press the Power/OK key once, the red indication lamp will be light up if it is connected to a power source. To turn it off, hold down the Power/OK button and the device will turn off.

  • Page 8: Photo Mode

    Photo Mode Press Menu/Mode button to switch to photo mode. There is a camera icon at the top left corner of the LCD to signify you are on photo mode. To take a photo, press the Power/OK button. The screen will flash and make a camera sound when a picture is taken.

  • Page 9: Battery Instructions

    Menu Settings Hold down the Menu/Mode button for 2 seconds and then release it to get into the menu settings. You can navigate the settings menu by using the Up/Down buttons. To change or edit a selected setting, press the Power/OK button. Hold down the Menu/Mode button for 2 seconds and then release it to get into the second tab.
  • Page 10 Hold down the Menu/Mode button for 2 seconds and then release it again until you see the spanner and screwdriver icon highlighted up the top. (SETUP MENU) Date/Time: This feature will allow you to change the year, month, day and time. To change the date simply use the arrow keys to go up or down.

  • Page 11: Product Specification

    Product Specification Product Feature HD Camera, HD Recording Built-in(Used to save the file in case of an emergency, and cannot be G-sensor deleted if the collision of vehicles happen) LCD Size 1.5” TFT LCD Lens 120 Degree Wide Angle English/Finnish (FIN)/Swedish (SWE)/Estonian Language (EST)/Russian/Dutch/Italian/French/Simplified Chinese/Portuguese/Turkish/Polish/Korean.
  • Page 12 Frequently Asked Questions Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording Due to the high amount of HD video data being recorded, please use a high speed micro SD card.

  • Page 13: Technical Assistance

    Technical Assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
