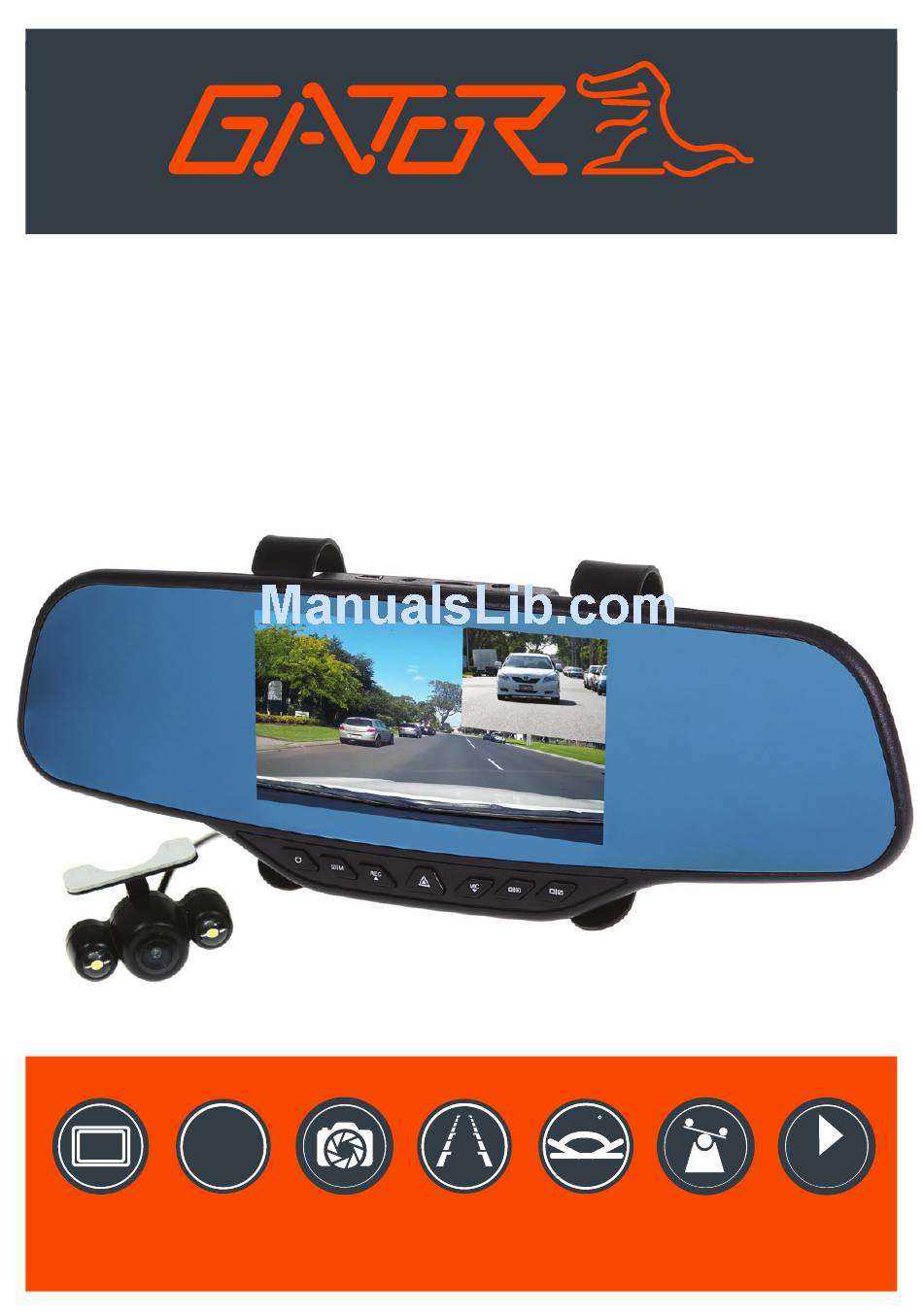

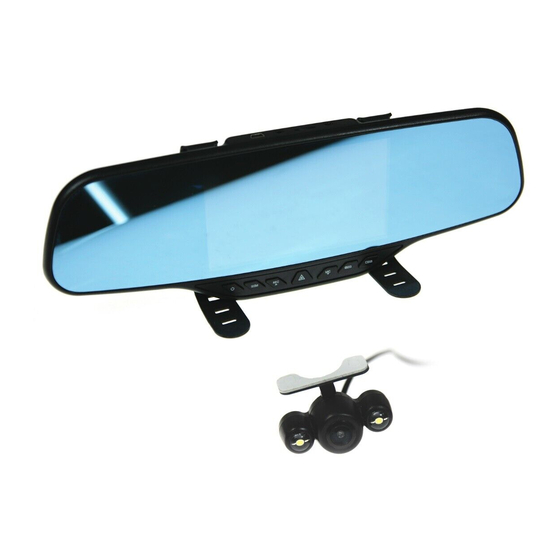

- Page 1 HD5MR FULL HD 1080P DASH CAM Rear view Mirror Reversing Camera Manual Full 5” Screen Size Resolution Dual Parking Wide Angle G Sensor File Locking Recording Guides...
- Page 2 Introduction Thank you for purchasing the Gator GHD5MR dash cam rear view mirror. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance.
- Page 3 Product features cont... Rear Camera 720 x 480 resolution 120 Degree view angle lens IP-67 Dust and water protection Surface mount butterfly camera Parking guide lines CMOS Sensor 0.2 Lux 5.5 M extension cable with trigger Cautions • Do not put the Dash Cam into a damp working environment; The Dash Cam does not has any waterproof function.
- Page 4 Package components GHD5MR Reverse Camera Camera power cable USB to Mini USB Car Charger...
- Page 5 Product structure 7. Display Switch Button 1. Power Button 8. Mini USB port 2. Menu Button 9. AV IN/Rear Camera 3. Record/Up Button 10. Mini SD Slot 4. OK/Lock(SOS) Button 11. Not Available in this Model 5. MIC/Down Button 6. Camera/Playback Mode Button...
- Page 6 Installation of Dash Cam 1. Make sure the vehicle is turned off. 2. Insert the Micro SD card into the Micro SD card slot in the mirror. 3. Secure the Dash Cam Mirror over the existing vehicles factory mirror using the straps and tighten securely. Make sure the Dash Cam camera lens is not obscured by the factory mirror.
-
Page 7: Button Instructions
Button instructions Power Button: When the Dash Cam is turned off, hold down the power button to turn it on. While the system is on, hold down the power button to turn it off. Pressing the power button once, while the unit is on, will turn off the display but Dash Cam will keep recording. - Page 8 Button instructions cont... Screen Switch Button: This button will allow you to switch between different types of display modes consisting of: Only front camera, only reverse camera, large view of front camera and small view of reverse camera (Picture in Picture) or large view of reverse camera and small view of front camera (Picture in Picture).
- Page 9 Extra functions cont..SOS Function: Press the OK/Lock Button while recording in order to lock the currently recording video file so it is non-deletable file (A key symbol will be present if activated). Ignition Auto Power On/Off: When power is connected to the Dash Cam using the car charger it automatically turns on and starts recording.
-
Page 10: Video Playback
Basic instructions for video and photo operation Photo Mode: Stop recording and press Camera/Playback Mode Button. There is a camera icon at the top left corner of the LCD to signify you are in photo mode. To take a photo, press the OK/Lock(SOS) Button. The screen will flash and make a camera sound when a picture is taken. - Page 11 Menu settings Press the Menu button to get into the menu settings. You can navigate the settings menu by using the Up/Down buttons. To change or edit a selected setting, press the OK button. Press the menu button again to exit the menu settings.
- Page 12 Menu setting features explained (Tools Settings) Date/Time: This feature will allow you to change the year, month, day and time. To change the date, use the arrow keys on the highlighted square starting with year. Then press the OK/Lock(SOS) button to move to the next date.
- Page 13 Menu setting features explained (Tools Settings) cont... Backlight: This feature will turn your LCD off after 1, 3 or 5 minutes but will continue to record regardless. This feature is useful for night driving when the LCD on as it could be a distraction. Format: This feature allows you to format/delete all the files off your micro SD card and also reinstalls your DCIM directory and Dash Cam software on your SD card so the micro SD card can operate with your...
- Page 14 Product specifications Built-in(saves files in case of an emergency, and G-sensor cannot be deleted if a vehicle collision occurs) LCD Size 5-inch LCD screen Dash Cam Lens 175 Degree Wide Angle Rear Camera Lens 120 Degree Wide Angle English, French, Spanish, Portuguese, Dutch, Language Italian, Chinese Simplified, Chinese Traditional Video Format...
- Page 15 Troubleshooting guide Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording? Due to the high amount of HD video data being recorded, please use a high-speed Micro SD card.
- Page 16 Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
