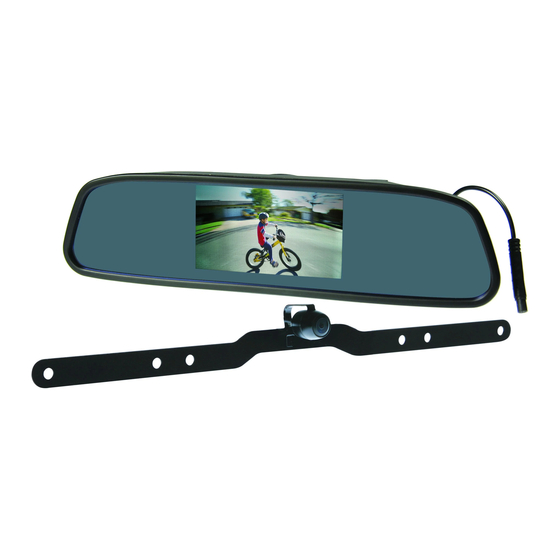

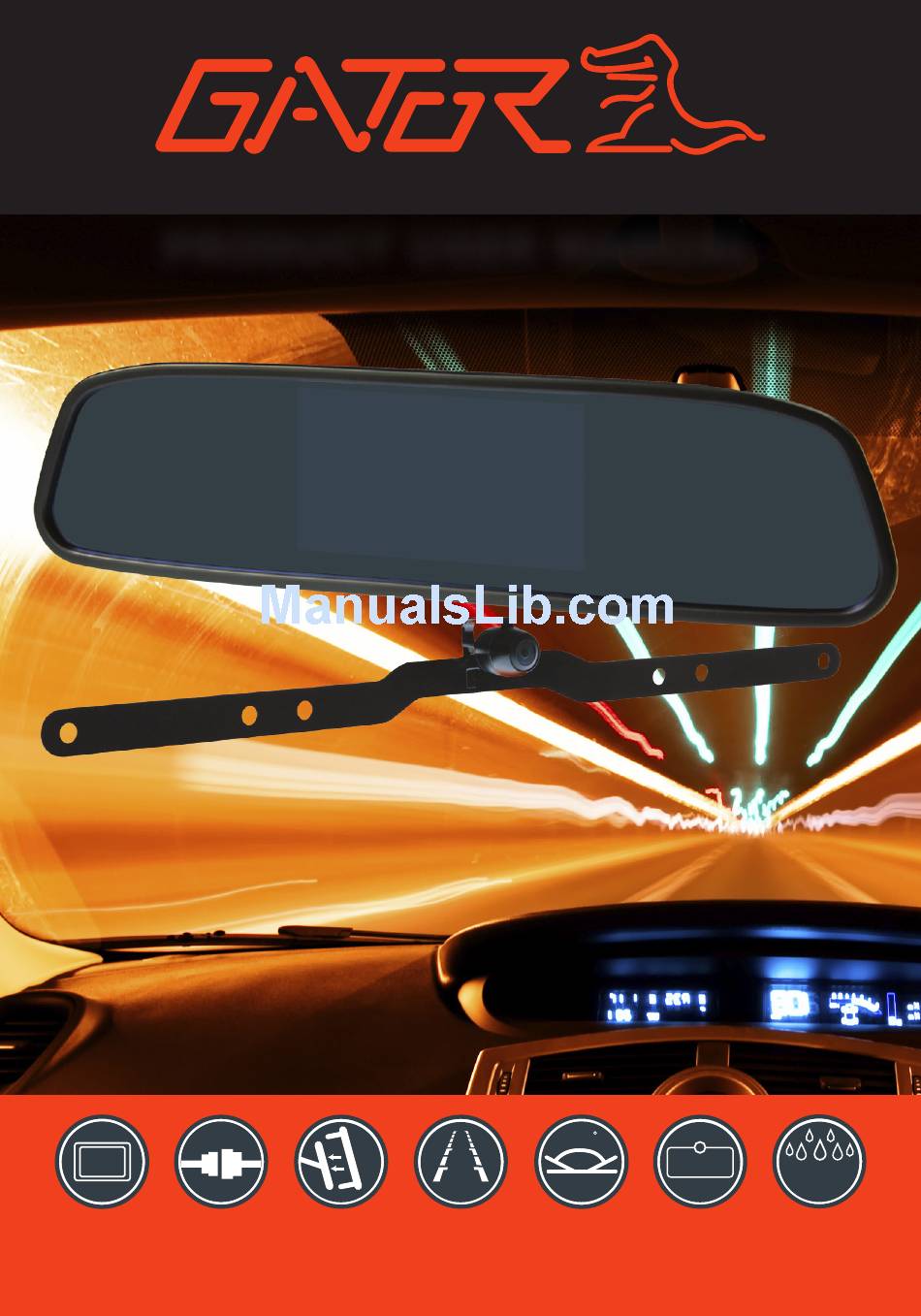

- Page 1 PRODUCT USER MANUAL Rv43M Rear view Mirror Reversing Camera 4.3” ABC-123 IP67 Screen Size Wired Clip-On Parking Wide Angle Number Plate IP67 Rating Mount Guides Mount PAGE 1 GRV43M INSTRUCTION MANUAL...
-
Page 2: Introduction
INTRODUCTION WELCOME Thank you for purchasing the Gator GRV43M 4.3” Mirror Monitor + Reverse Camera. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION.................PAGE: 2 PRODUCT FEATURES..............PAGE: 2 PACKAGE COMPONENTS............PAGE: 2 TABLE OF CONTENTS..............PAGE: 3 INSTALLATION OF MIRROR MONITOR........PAGE: 4 INSTALLING THE CAMERA............PAGE:5-6 TESTING THE REVERSE CAMERA FUNCTION......PAGE:6 MENU FUNCTIONS...............PAGE:7 PRODUCT SPECIFICATIONS............PAGE:8 TECHNICAL ASSISTANCE............PAGE:8 PAGE 3 GRV43M INSTRUCTION MANUAL... - Page 4 Priority is the AV2 input. Mirror Powerwires (ACC) Moulded splitter (Optional front camera) (Blue wires can 6 Metres be used for additional Moulded accessories ) splitter Powerwires (Reversing light) Camera PAGE 4 GRV43M INSTRUCTION MANUAL...
-
Page 5: Installing The Camera
(through a rubber grommet) and seal the hole with silicone to avoid water leakage. 4.Refit the license plate over the camera bracket using the original bolts/screws. PAGE 5 GRV43M INSTRUCTION MANUAL... - Page 6 1.Engage the park brake and turn the ignition key to the on position. DO NOT start the vehicle. 2. Select reverse gear with the gear shift. The mirror monitor will sense the video signal from the camera automatically and will display the camera’s image of the rear of the vehicle. PAGE 6 GRV43M INSTRUCTION MANUAL...
-
Page 7: Menu Functions
- Contrast: Adjusts screen contrast - Saturation: Adjusts screen saturation - Zoom: Changes display mode between 4:3 & 16:9 ratio - Language: Select menu language - Reset: Resets all menu setting back to factory configuration PAGE 7 GRV43M INSTRUCTION MANUAL... -
Page 8: Product Specifications
- Lense Angle 120 degree horizontal & 60 degree vertical - Low-Lux CMOS camera - NTSC TECHNICAL ASSISTANCE If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am –...
