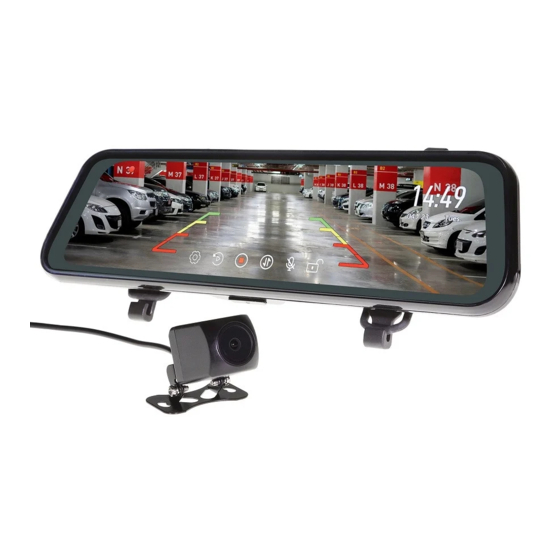

9" super wide mirror monitor with reverse & live stream camera

Advertisement

G
RV90MKT
9" Super wide mirror monitor
with Reverse &
Live stream Camera
OWNER'S MANUAL
This manual is considered correct at time of printing but is subject to
change. For latest manuals and updates refer to the website.
www.gatordriverassist.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRV90MKT and is the answer not in the manual?

Questions and answers

Summary of Contents for Gator GRV90MKT

  • Page 1 RV90MKT 9” Super wide mirror monitor with Reverse & Live stream Camera OWNER’S MANUAL This manual is considered correct at time of printing but is subject to change. For latest manuals and updates refer to the website. www.gatordriverassist.com...
  • Page 2: Introduction

    Introduction Thank you for purchasing the Gator GRV90MKT Mirror Monitor. This product is a convenient and durable traveling video and data recorder. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance.
  • Page 3: Table Of Contents

    Table of contents Introduction..............2 Product features..............2 Table of contents..............3 Package components............4 Product structure..............5 Installation of Mirror Monitor..........6 Hard wiring kit...............7 Touch screen functions............8 Settings..............9 Video playback mode............10 Connecting to a computer..........10 G-sensor sensitivity............10 Reversing guide lines............11 Formatting SD card............11 Infringement of copyright warning........11 Product specifications............12 Troubleshooting guide............13 Safety information &...
  • Page 4: Package Components

    Package components GRV90MKT Mirror Monitor USB cable Rear Camera 12/24V charging adapter Camera extension cable with trigger wire Mounting screws & 3M adhesive Mirror protector pads & for butterfly camerea rubber mounting clips...
  • Page 5: Product Structure

    Product structure 1) LCD touch screen 4) Rear camera input 2) Power button 5) Power input (Mini USB) 3) Micro SD card slot 6) Mounting clip-on system...
  • Page 6: Installation Of Mirror Monitor

    Installation of the Mirror Monitor 1. Clip on mirror design securely mounts on the existing rear view mirror in the vehicle by stretching the bands at the back. There are two positions based on thickness of existing mirror. 2. Insert Micro SD card into the Mirror Monitor 3.
  • Page 7: Hard Wiring Kit

    Hard wiring kit GUNIHWC (Sold separately) This can be purchased from your retailer to hard wire your Mirror Monitor to your vehicle. A 3 Metre extension cable is also available separately. The GUNIHWC Hardwire Kit is a simple plug and NOTE: play solution to hardwire any Mirror Monitor or device using Mini or Micro USB for power.
  • Page 8: Touch Screen Functions

    Product structure Touch screen functions 1) Recording indicator 5) Image rotation 2) Settings 6) Microphone ON/OFF 3) Playback 7) Lock/Unlock recorded files 4) Stop/Start recording 8) Date/Time Long press the power button to turn the Mirror Monitor ON/OFF. Short press the power button whilst recording to turn the display off, recording will continue.
  • Page 9: Settings

    Settings Press settings icon to enter video settings. Select function and select settings to make changes. Press arrow icon to exit the function. Function Description 1080P/720P Movie Mode Movie Clip Time 1/2/3 Min Sound Record On/Off Mirror On/Off Clock Settings Date/Time Date+Logo/Date/Logo/Off Stamp...
  • Page 10: Video Playback Mode

    Video playback mode When not recording press the playback icon to select recorded and locked recorded video footage. Press on the file to view on screen.You can press icons on screen to lock/ unlock/ back/ forward/ pause and delete recorded video files. Press return arrow to exit to menu files.
  • Page 11: Reversing Guide Lines

    Reversing guide lines When triggered, the reversing guide lines only assist a driver with backing into a parking space or aligning with an object behind the vehicle. They do not measure distance. You should always get out of the vehicle and visually check the distance to aid the driver when using guide lines.
  • Page 12: Product Specifications

    Product specifications Display 9.35" High-resolution LCD touch screen Color Black Video FHD 1920*1080 @ 30FPS Resolution Frequency 50HZ/60HZ Mstar8336 Rear Camera Surface mount butterfly camera Viewing Angle 120 Degree wide angle lens Functions G-Sensor, Loop recording OSD Language English/Russian/Chinese Audio Built-in Microphone and speaker Storage Supports Micro SD card Class 10, 64GB Max...
  • Page 13: Troubleshooting Guide

    Troubleshooting guide If there are problems with the device, please refer to the following methods to resolve. Cannot record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording? Due to the high amount of HD video data being recorded, please use a high-speed Micro SD card.
  • Page 14: Safety Information & Warnings

    Please pay attention to cleaning the lens surface, use a moist soft cloth to clean the lens before use, to avoid poor video footage. Gator is NOT responsible for the loss of any recorded video during operation. Although designed to withstand high impact of car collision, Gator does NOT guarantee recording of accidents where the impact may cause the device to be damaged.
  • Page 15: Technical Assistance

    Product specifications Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
